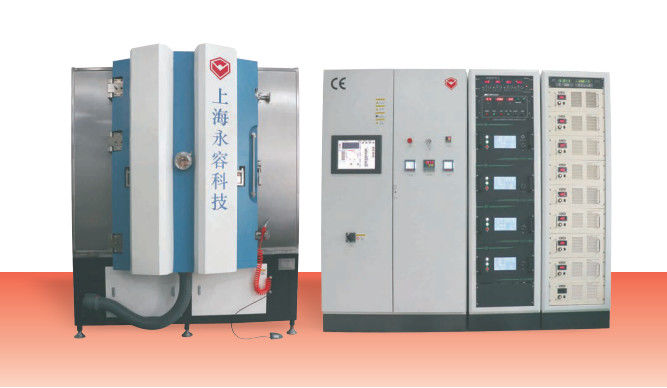

Royal technology manufactures the most reliable deposition systems in the PVD coating industry. The magnetron sputtering vacuum coating plant is designed with ease of maintenance in mind and the ability to handle large volume capacity. With over 90% uptime, users can focus on meeting their production demands instead of wasting time on machine maintenance.
PVD Chrome Sputtering technology has been widely used in Auto industry especially on the plastic interiors parts.
PVD Hard Chrome Plating Properties:
PVD sputtering gives a combination of advantages like no other: 1. It is totally economically efficient generating the thinnest and most uniform coating films; 2. It is a dry coating process at low temperature in a vacuum chamber; 3. It offers great versatility, can be used for the deposition of conductive or non-conductive materials on any typeof substrates, like: metals, ceramics, plastic materials. 4. Multi layers coating are available.
RTSP1250 TECHNIICAL SPECIFICATIONS
DC Unbalance Magnetron Sputtering Deposition
Stainless Steel (S304)
Cylinder, vertical single door
Either Eight (8) 760mm or Six (6) 700mm planets
with a total length of 1050mm ( approx.)
Silver, Copper, Chrome, Stainless Steel, Aluminum etc.
Cylinder or Planar Sputtering Targets
PLC(Programmable Logic Controller) + Touch Screen
Rotary Piston Vacuum Pump
Rotary Vane Vacuum Pump
Roots Vacuum Pump + Polycold for option
Turbo Molecular Pump
Numerous safety interlocks to protect
operators and equipment
AVERAGE POWER CONSUMPTION
4.1 T (Approx.)
( L*W*H) 5200*4000*2400MM (Safety Height 4000mm)
480V/3 phases/60HZ ( USA compliant)
460V/3 phases/50HZ ( Asia compliant)
380V/3 phases/50HZ ( EU-CE compliant)

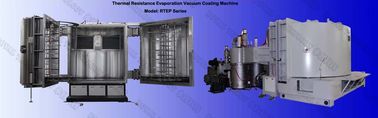

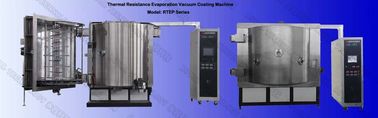

Automotive Interior Trims PVD Plating has 2 methods: thermal resistance evaporation and magnetron sputtering coating technology. Compared with sputtering deposition, thermal evaporation has fast cycle time, machine is much more cheaper advantages; however its disadvantage is: have to add new deposition materials every batch and change new evaporation source regularly-- generally every 12 ~ 15 batches.
We are professional in automotive industry PVD coating solutions, please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
