Glass Bulb Thermal Evaporation System，Metal steel lighting and lamp reflector Coating

Name: Glass Bulb Thermal Evaporation System，Metal steel lighting and lamp reflector Coating
Brand: SHANGHAI ROYAL TECHNOLOGY INC.
SKU: RTEP
Availability: InStock

Brand Name:	ROYAL
Model Number:	RTEP
MOQ:	1 set
Price:	negotiable
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

Chamber:

Vertical Orientation, 1 -door

Material:

Stainless Steel 304/316

Evaporation Source:

Thermal Filament, Thermal Boat, Thermal Box, Rod, Crucibles

Deposition Materials:

Aluminum, Gold, Silver, Chromium, Copper, Indium, Indium Tin Oxide, Nickel

Coating Colors:

Rainbow Multiple Colors, Green, Blue, Gold, Silver, Red, Black, Matt Gold, Matt Silver Etc.

Applications:

LED Lighting Reflector, Glass Bulb, Glass Lamp, LED Plastic Reflector

Factory Location:

Shanghai City, China

Worldwide Service:

Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Worldwide Service:

Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Training Service:

Machine Operation, Maintenance, Coating Process Recipes, Program

Warranty:

Limited Warranty 1 Year For Free, Whole Life For Machine

Warranty:

Limited Warranty 1 Year For Free, Whole Life For Machine

OEM & ODM:

Available, We Support Tailor Made Design And Fabrication

Packaging Details:

Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.

Supply Ability:

10 sets per month

Highlight:

thermal evaporation equipment

vacuum deposition machine

Product Description

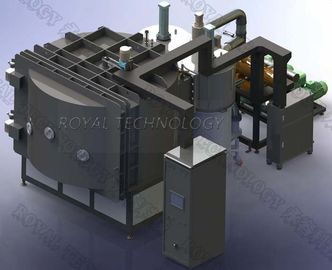

Glass Lighting Reflector Thermal Evaporation Coating Unit / Glass Bulb Vacuum Metalizing Machine

The glass lighiting reflector thermal evaporation coating machine hight features are:

1. Top coating for a high uniformity of film depositon;

2. Ion source device to do plasma cleaning with Ar gas to enhance the ionizatio for a strong adhesion film quality;

3. Polycold unit for optional (cryopump device can highly reduce the cycle time) to capture the water molecular and oil mist for a high vacuum environment;

4. The evaporation sources have multiple options: E-beam Gun / Tungsten filament / or both sources. Flexible for various lighting reflector coatings.

High Vacuum Environment to deposite the evaporation materials

Glass Bulb Thermal Evaporation System，Metal steel lighting and lamp reflector Coating 0

Design Features:

Robust structure design and high quality configurations

PLC + Touch Screen Operation System, fully automatic / manual control
Fast Vacuum Evacuation System
Exclusively designed rotating Carousel structure for easy loading/uploading
Easy access to the working environment for maintenance

Technical Specifications:

Performance

1. Ultimate Vacuum Pressure: better than 5.0×10^-⁶ Torr.

2. Operating Vacuum Pressure: 1.0×10^-⁴ Torr.

3. Pumping down Time: from 1 atm to 1.0×10^-⁴ Torr≤3 minutes ( room temperature, dry, clean and empty chamber)

4. Metalizing material ( evaporation): Al, Cr, Sn, Ti, SS, Cu… etc.

5. Operating Model: Full Automatically /Semi-Auto/ Manually

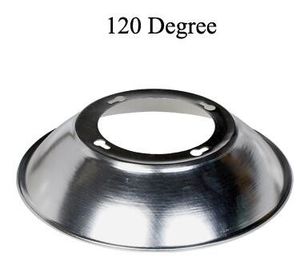

Thermal Evaporation Coating Machine on Lighting Reflector Coating Samples

Glass Bulb Thermal Evaporation System，Metal steel lighting and lamp reflector Coating 1

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
