Vacuum Thermal Evaporation System , 2 Doors Thermal Evaporation Coating Unit

1 set
MOQ
negotiable
Price
Vacuum Thermal Evaporation System , 2 Doors Thermal Evaporation Coating Unit
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber: Vertical Orientation, 2-doors
Material: Stainless Steel 304/316
Evaporation Source: Thermal Filament, Thermal Boat, Thermal Box, Rod, Crucibles
Deposition Materials: Aluminum, Gold, Silver, Chromium, Copper, Indium, Indium Tin Oxide, Nickel
Applications: Furnitures, Dashboards, Knobs, Buttons, Plates, Fashion And Costume Jewelry Accessories, Toy Parts, Lifestyle Products, Car Lighting, Christmas Decorations
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

thermal evaporation equipment

,

vacuum deposition machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE certification
Model Number: RTEP-1616
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8~12 weeks
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 10 sets per month
Product Description

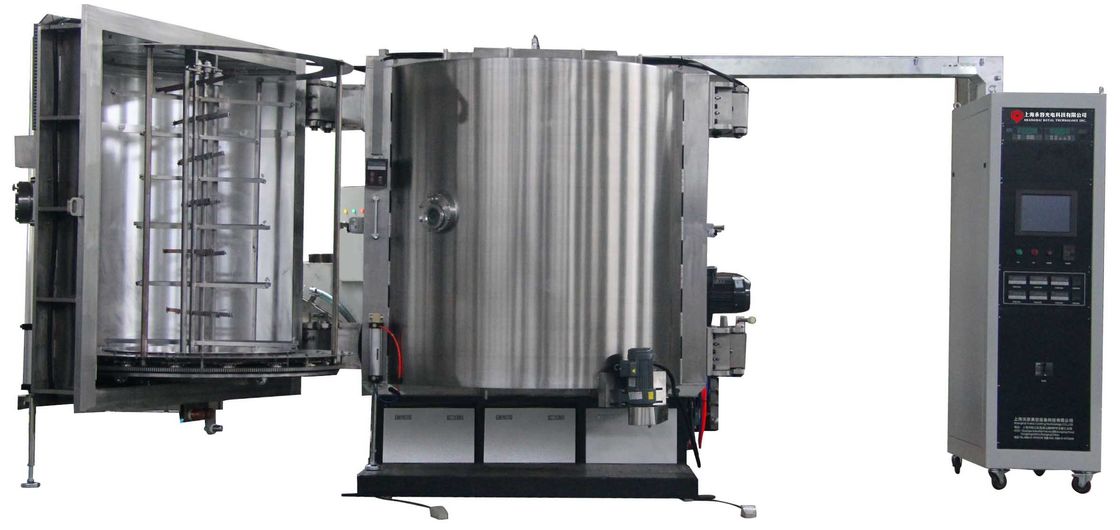

                                        PVD vacuum coating machine- 2 doors



General Information



Used in the PVD (Physical Vapor Deposition) process of “Vacuum Thermal Evaporation or Vacuum Thermal Deposition” as an advanced coating technology to replace the traditional water-electroplating surface treatment methods. This coating technology is widely used for surface decoration and functional applications as applied to standard substrates listed below:



1. Decorative Coatings: ABS, PP, PC, PET, PMMA to deposit a thin film, high reflective, metallic like coating on toys, fashion and consume jewelry accessories, Christmas tree decorations, balls, buttons, shoes, mirrors.
2. Functional Coatings: protective layer: ZrO2 coatings on blades for heat insulation, AlxOx, HMDSO protective layers, EMI & NCVM on electronics.
3. Optics Coatings: Anti-Reflection coating (AF film), optical filter, color separation filter, telescope, periscope, microscope and digital camera.





Vacuum Coating VS Traditional Electroplating



Finishes are deposited using an environmentally friendly green process;
Highly reflective, brilliant and bright colors;
High volume production, low cost, ideal solution for mass production demand.







1. Standard Evaporation Machine Models


Model Size(mm) Substrate Jigs (Qty.) Evaporation Power(kVA) Plasma (kVA) Ultimate Vacuum Cycle Time Electrical Power
RTEP1012 Φ1000xH1200 6,8,10 20 7 8x10-4Pa 10'~15' depends on Product 3Phase/AC380V,50HZ
3Ph, 220 to 440V,60HZ
RTEP1416 Φ1400xH1600 6, 8,16 30 7
RTEP1418 Φ1400xH1800 6,16 35 10
RTEP1616 Φ1600xH1600 8.16 35 10
RTEP1618 Φ1600xH1800 8.16 35 10
RTEP1820 Φ1800xH2000 6 40 10
RTEP2022 Φ2000xH2200 10,12,16 40 10


2. Customized Evaporation Machine Models


RTEP3618 Φ3600xH1800 1 80   8x10-4Pa 10'~15' depends on Product 3Phase/AC380V,50HZ
3Ph, 220 to440V,60HZ
RTEP2215 Φ2200xH1500 1 50 10
RTEP2525 Φ2500xH2500 3 50 20
RTEP6638 L6600xH3800 100 20
RTEP0913 Φ900xH1300
RTEP1822 Φ1800xH2200 6 50 10



3. PVD Evaporation Coating Machine Features
A: PLC + Touch Screen Operation System, fully automatically control
B: Fast Vacuum pumping down time.
C: Work pieces are easy loading/uploading.
D: Easy access to the working environment for maintenance.
E: Robust structure design and high quality configurations


Vacuum Metalizing Coating Samples



Vacuum Thermal Evaporation System , 2 Doors Thermal Evaporation Coating Unit 0

Vacuum Thermal Evaporation System , 2 Doors Thermal Evaporation Coating Unit 1











Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
