PVD Functional Coatings- Gold Sputtering Thin Film Deposition System

1 set
MOQ
negotiable
Price
PVD Functional Coatings- Gold Sputtering Thin Film Deposition System
Features Gallery Product Description Request A Quote
Features
Specifications
Deposition Target: Au Gold, Copper Cu, Silver Ag, Ni And Cr Etc.
Applications: Glass Slide, Electronic Circuit Board, Medical Industries
Technology: DC/MF Magnetron Sputtering
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

vacuum coating plant

,

high vacuum coating machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTSP
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Product Description

Applications



 Gold has a bright, reddish-yellow color in its purest form. It does not oxidize in the air at room temperature, so it remains very stable under normal conditions and its electrical conductivity is constant. It is one of the most common precious metals used in finishing.

Gold is corrosion resistant, which makes it a good finish for connector pins and electrical switch contacts.

Gold plating is used in parts and components across a wide range of main industries:

  1. Medical applications: body implants
  2. Energy: hydrogen fuel cell Bipolar plates
  3. Semiconductor: microelectronic chips
  4. Aerospace & defense
  5. Telecommunications and other more

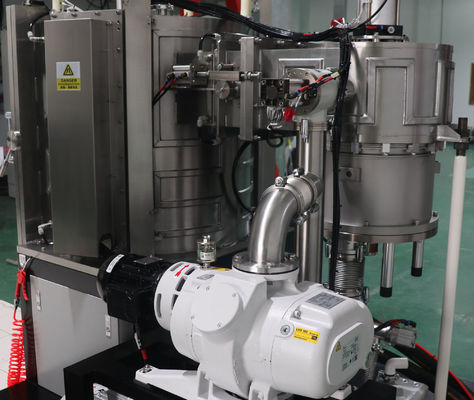

PVD Functional Coatings- Gold Sputtering Thin Film Deposition System 0PVD Functional Coatings- Gold Sputtering Thin Film Deposition System 1

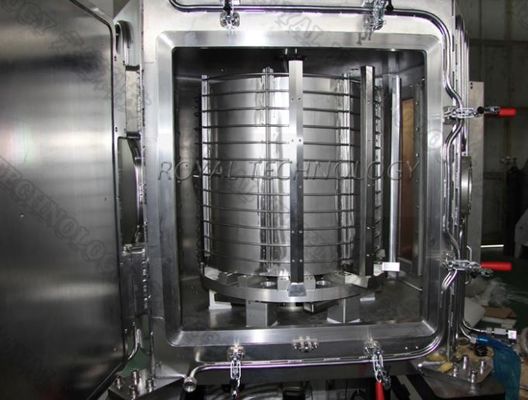

PVD Functional Coatings- Gold Sputtering Thin Film Deposition System 2PVD Functional Coatings- Gold Sputtering Thin Film Deposition System 3

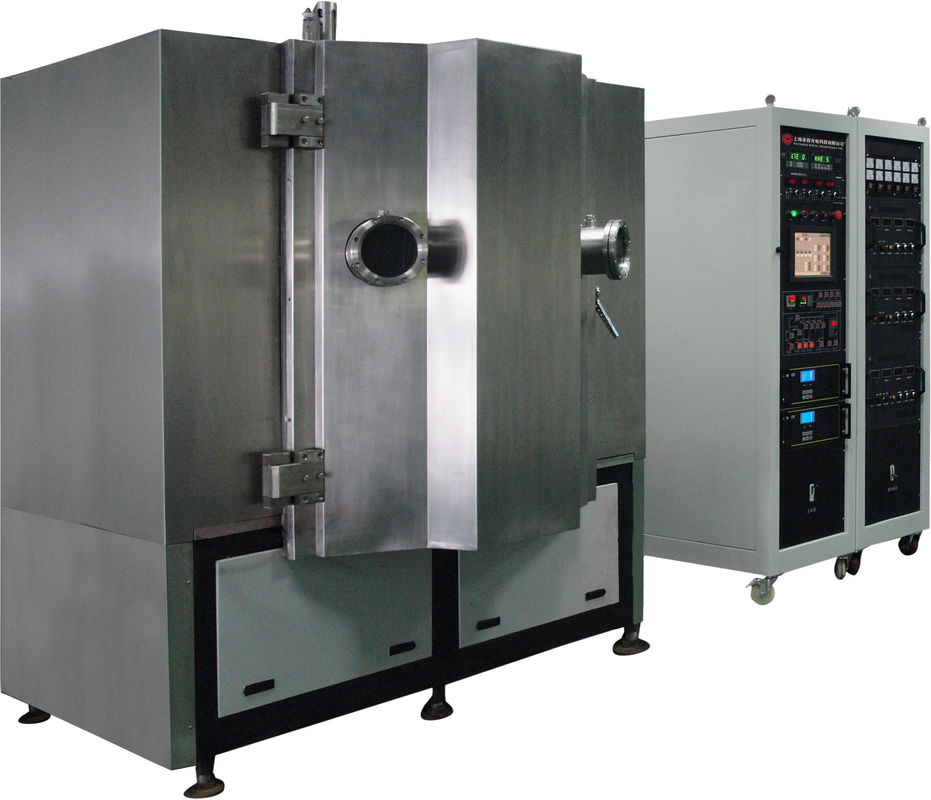

PVD Functional Coatings- Gold Sputtering Thin Film Deposition System 4



ROYAL Technology supplies turnkey coating solutions for manufactures who are looking for a reliable team for long term cooperation.

Robust design, large batches, fast cycle, flexible coating processes are the basic design concepts ROYAL Team has been pursuing.

Design Advantages

  1. Energy saving: compact design and molecular pumps are applied
  2. High target utilization up to 40% with planar sputtering cathode
  3. Sputtered Au gold film’s thickness is controllable
  4. One-Touch operation system

PVD Gold sputtering deposition

  1. When comes to glass, metal alloys etc. Substrates material, the bonding layer is essential to enhance substrate and Aufilm adhesion. Royal Technology has developed a range of matured coating recipes based on different applications, support our customers with professional advice.
  2. The roughness (RMS – root mean square) < 40Å is expected for most of the applications. For certain scanning probe applications a lower roughness might be required, generally 1.5 ~ 4 nm.
  3. Gold sputtering layer surface purity: a clean surface is required for applications that employ gold surface modifications. Depending on the PVD process used, level of vacuum in the system, original purity of the gold source (over 99.99% generally)



    Technical Specifications:

    MODEL: RTSP800

    TECHNOLOGY: DC Sputtering + Ion source (for option)

    MATERIAL: Stainless Steel

    CHAMBER SIZE: Φ800*H800mm

    CHAMBER TYPE: Cylinder, vertical, 1-door

    ROTARY RACK SYSTEM: Planetary/Central driving

    DEPOSITION MATERIAL: Gold, Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel, Titanium

    DEPOSITION SOURCE: Planar Sputtering Cathodes,

    Conventional arc cathodes for option(according to the coating process’s requirement)

    REACTIVE GAS CONTROL: MFC, 2/4 ways

    CONTROL PLC(Programmable Logic Controller) +IPC

    PUMP SYSTEM:
    SV300B – 1 set (Leybold) 300m³/hr

    Roots Pump – 1 set, 490m³/hr

    Holding Pump – 1 set, 60m³/hr

    Turbo Molecular Pump: – 1 set, 3500L/S

    POWER SUPPLY: Bias power supply: 1*24 KW

    DC sputtering power: 12KW

    Linear Ion source: 5KW

    SAFETY SYSTEM:Numerous safety interlocks to protect operators and equipment

    COOLING Recycle: Cooling Water

    HEATING: Heaters, 9KW

    POWER ELECTRICAL:
    480V/3 phases/60HZ ( USA compliant)

    460V/3 phases/50HZ ( Asia compliant)

    380V/3 phases/50HZ ( EU-CE compliant)

    FOOTPRINT: L3200*W2600*H2000mm

    TOTAL WEIGHT: 4.0 T

    CYCLE TIME: 30~40 minutes (depending on substrate material, substrate geometry and environmental conditions)

    POWER MAX: 50KW

    AVERAGE POWER CONSUMPTION (APPROX.): 20KW

    PVD Functional Coatings- Gold Sputtering Thin Film Deposition System 5



Insite



PVD Functional Coatings- Gold Sputtering Thin Film Deposition System 6
