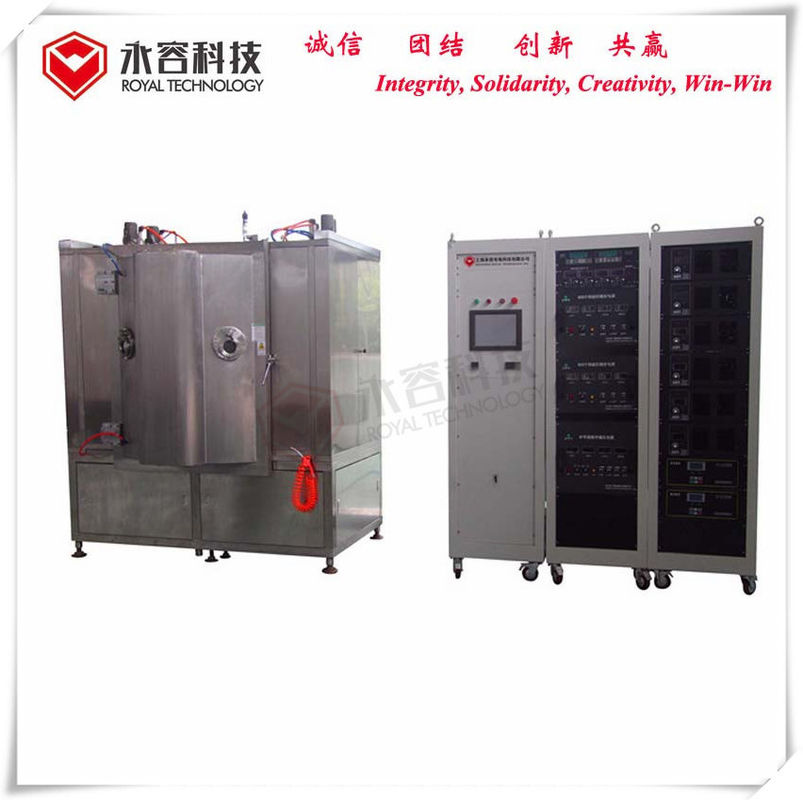

SS Flatware Titanium Nitride Coating Machine , Magnetron Sputtering / Ion Plating System

1 set
MOQ
negotiable
Price
SS Flatware  Titanium Nitride Coating Machine ,  Magnetron Sputtering / Ion Plating System
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber: Vertical Orientation, 1-door,
Material: Stainless Steel 304/316
Vacuum Technology: Arc Evaporation, Arc Ion Plating
Deposition Sources: Cylinder Arc Or Circular Arc Cathodes
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications: Ceramic And Glass House Wares, Stainless Steel Table Ware, Steel Sheet, Furniture, Table, Chair, Watches And Clocks, Hard Coatings On Tools
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

titanium nitride coating equipment

,

tin coating machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: ISO, CE, UL Standard
Model Number: RTAC
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 6 to 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 15 sets per month
Product Description





Tableware TiN Gold Coating Machine / Stainless Steel Tableware Ion Plating



Tableware TiN Gold Coating Machine Advantages


1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.

5. Fast deposition rates and high quality surface finishes.



Tableware TiN Gold Coating Machine Specifications



MODEL RTAC1215
TECHNOLOGY Magnetron Sputtering + Ion Plating
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1200*H1500mm
CHAMBER TYPE Cylinder, vertical, 1-door

DEPOSITION MATERIAL Aluminum, Silver, Copper, Chrome, Stainless Steel,
Nickel, Gold, TiAl, Au alloy, Ag etc.

DEPOSITION SOURCE 14 sets steered arc cathodes
GAS MFC- 4 ways, Ar, N2, O2, C2H2
CONTROL AND OPERATION

PLC(Programmable Logic Controller) +

Touch Screen


PUMP SYSTEM SV300B - 2 sets (Leybold)
WAU1001 - 1 sets (Leybold)
D60T- 1 set (Leybold)
Turbo Molecular Pumps: 3* F-400/3500
PRE-TREATMENT Bias power supply: 1*36 KW
SAFETY SYSTEM Numerous safety interlocks to protect operators
COOLING Cold Water
POWER ELECTRICAL 480V/3 phases/60HZ ( USA compliant)
460V/3 phases/50HZ ( Asia compliant)
380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT L3000*W3000*H2000mm
TOTAL WEIGHT 7.0 T
FOOTPRINT ( L*W*H) 5000*4000 *4000 MM
CYCLE TIME 30~40 minutes (depending on substrate material,
substrate geometry and environmental conditions)

POWER MAX.. 155 KW

AVERAGE POWER

CONSUMPTION (APPROX.)

75 KW

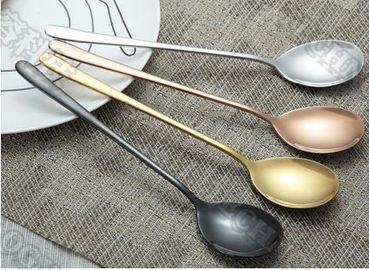

            SS Flatware  Titanium Nitride Coating Machine ,  Magnetron Sputtering / Ion Plating System 0

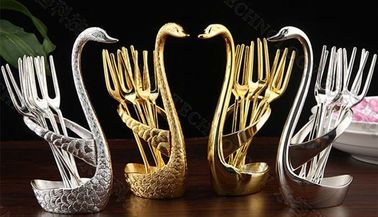

SS Flatware  Titanium Nitride Coating Machine ,  Magnetron Sputtering / Ion Plating System 1

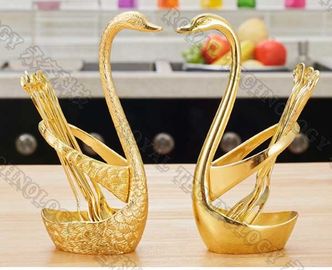

SS Flatware  Titanium Nitride Coating Machine ,  Magnetron Sputtering / Ion Plating System 2



Please contact us for more specifications, Royal Technology is honored to provide you total

coating solutions.
