Titanium Nitride PVD Gold Plating Machine On Faucets , Bathroom Faucet / Taps TiN Coating Equipment

1 set
MOQ
negotiable
Price
Titanium Nitride PVD Gold Plating Machine On Faucets , Bathroom Faucet / Taps TiN Coating Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Vacuum Technology: Cathodic Multi Arc Plating, PVD Arc Evaporation, Magnetron Sputtering MF
Deposition Sources: Cathodic Arc Sources + MF Sputtering Cathodes
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications: Faucets And Bathroom Fittings, Metal, Ceramic And Glass House Wares, Stainless Steel Table Ware, Steel Sheet, Furniture, Table, Chair, Watches And Clocks, Hard Coatings On Tools
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

titanium nitride coating equipment

,

tin coating machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAS1600
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 15 sets per month
Product Description



Titanium Nitride Pvd Gold Plating Machine On Faucets , Bathroom Faucet / Taps Pvd Coating Equipment



Summary:



Faucets as important consumption of our daily life, consumers and manufactures are more focusing on the creative design & surface treatment process. PVD vacuum Ion Plating is used to replace the traditional chemical electro-plating is more recommended due to its low production cost, 100% friendly environmentally, flexible operation features.



PVD vacuum coatings properties

  • Exceptional aesthetic finish
  • Uniform coating thickness
  • Superior resistance to wear and corrosion
  • PVD coating has a high level of hardness

Brass Faucets PVD Coating Machine Advantages:

1. High ionization rate, high through put,
2. Large capacity to satisfy mass production,

3. Excellent film adhesion and various colors are available.

4. Coating lMateria: Chrome, Titanium, Zr , TiAl, etc.



The multi arc  + MF sputtering deposition coater RTAC1615(RTAC1618)is exclusively designed for brass faucets industries, it can coat the whole set of faucets, plumbing, valves etc.

The high lights of this machine are:



1. Equipped with cryo-pump (Polycold) device, which

Is available for plastic parts, like ABS, PC, ABS + PC, PP materials plating.

2. MF sputtering cathodes and DC Sputtering Cathodes for option.



RTAC-1615SPECIFICATION:



MODEL RTAC-1615 (RTAC1618)
MATERIAL Stainless Steel
CHAMBER SIZE Φ1600*1500mm (H)
PUMP SYSTEM Rotary Piston Vacuum Pump (Mechanical)
Rotary Vane Vacuum Pump (Holding)
Roots Vacuum Pump
Turbo Molecular Pump
TECHNOLOGY Ion Plating ( Multi-arc sources) + Pulsed Bias Plasma Cleaning
RACK SYSTEM Planetary Rods: 10
TYPICAL TARGETS Titanium, Zirconium, Chrome, TiAl etc.
GAS Gas Mass Flow Meters ( Ar, N2, C2H2, O2) Argon, Nitrogen and Ethyne,Oxygen
CONTROL PLC(Programmable Logic Controller)
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Water
HEATING Heater
POWER MAX. 75KW (Approx.)
AVERAGE POWER CONSUMPTION 40KW (Approx.)

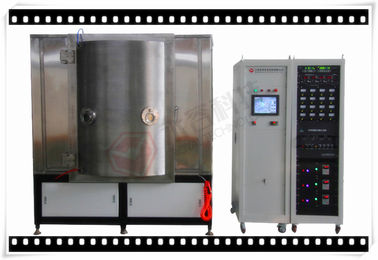

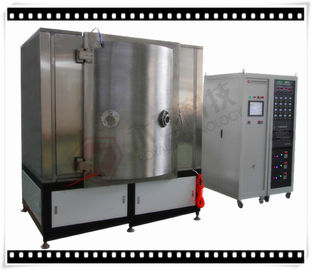

ZrN gold faucets PVD plating machine

Titanium Nitride PVD Gold Plating Machine On Faucets , Bathroom Faucet / Taps TiN Coating Equipment 0



Titanium Nitride PVD Gold Plating Machine On Faucets , Bathroom Faucet / Taps TiN Coating Equipment 1

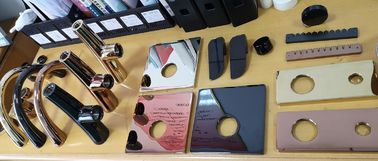

Brass Faucets PVD Coating Samples

Titanium Nitride PVD Gold Plating Machine On Faucets , Bathroom Faucet / Taps TiN Coating Equipment 2

Titanium Nitride PVD Gold Plating Machine On Faucets , Bathroom Faucet / Taps TiN Coating Equipment 3

Titanium Nitride PVD Gold Plating Machine On Faucets , Bathroom Faucet / Taps TiN Coating Equipment 4





 Customized sizes of machine are available based on  product dimensions and capacity requests.



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
