Auto Wheel Hard Chrome Plating Machine , Car Rims DC Magnetron Sputtering Machine

5 sets
MOQ
negotiable
Price
Auto Wheel Hard Chrome Plating Machine , Car Rims DC Magnetron Sputtering Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber: Vertical Orientation, 1-door
Material: Stainless Steel 304/316
Technology: DC Magnetron Sputtering Vacuum Coating
Deposition Films: Al, Cu, Ag, Au, Ti, Zr, Cr Etc.
Applications: Car Hub, Automotive Wheels, Chrome PVD Plating
Film Features: Wear Resistance, Strong Adhesion, Decorative Coating Colors
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

magnetron sputtering machine

,

magnetron sputtering equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTSP900
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 16 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 42 sets per month
Product Description





Automotive Wheel Vacuum PVD Hard Chrome Plating Machine / Car Rims Sputtering Vacuum Coating





General Information



The PVD Vacuum Hard Chrome coating process has been used in the automotive industries for decades. Sputtering Chrome/Aluminum on Aluminum alloy rims is a standard application due to its 100% environmentally friendly process and resistance to pititting or peeling off like traditional water-electroplating. The high abrasion resistance coating forms a durable film that greatly enhances the car rim’s lifetime. For these reasons and ease of use and reliability the PDV hard chrome coating is welcomed by the automotive factories.
 We have developed 3 standard machines to satisfy different customer’s demand:
RTSP - 900, capacity 1 piece;
RTSP - 1315, capacity 2 pieces;
RTSP - 1618, capacity 4 pieces;
Based on the standard car wheels and rims sizes range from 13” ~24”, even larger size 27” be used for trucks.



The coating colors:
PVD Black Chrome / PVD Bright Chrome / PVD Colored Chrome are available.





Coating Samples



Automotive Wheel Vacuum PVD Hard Chrome Plating Machine / Car Rims Sputtering Vacuum CoatingAutomotive Wheel Vacuum PVD Hard Chrome Plating Machine / Car Rims Sputtering Vacuum CoatingAutomotive Wheel Vacuum PVD Hard Chrome Plating Machine / Car Rims Sputtering Vacuum Coating



Magnetron Sputtering Chorming Machine  Specification

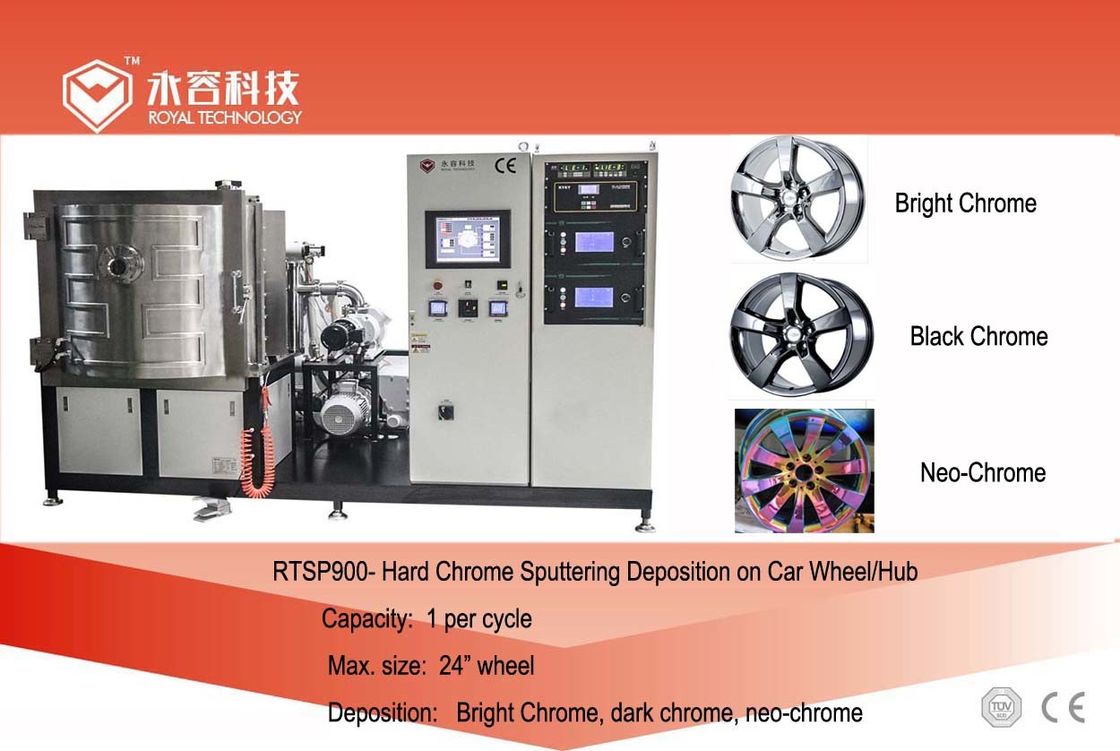

RTSP900 Model Information
MODEL RTSP900
MATERIAL Stainless Steel (S304) Auto Wheel Hard Chrome Plating Machine , Car Rims DC Magnetron Sputtering Machine 3
CHAMBER SIZE Φ900*900mm (H)
CHAMBER TYPE Cylinder, vertical, single door
SINGLE PUMP PACKAGE Rotary Piston Vacuum Pump
Rotary Vane Vacuum Pump
Roots Vacuum Pump
Diffusion Pump OR Turbo Molecular Pump
TECHNOLOGY Magnetron Sputtering
POWER SUPPLY DC power supply
DEPOSITION SOURCE Plannar Sputtering Target
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cooling Water
CLEANING Glow Discharge Cleaning
POWER MAX. 35KW
AVERAGE POWER CONSUMPTION 25KW
