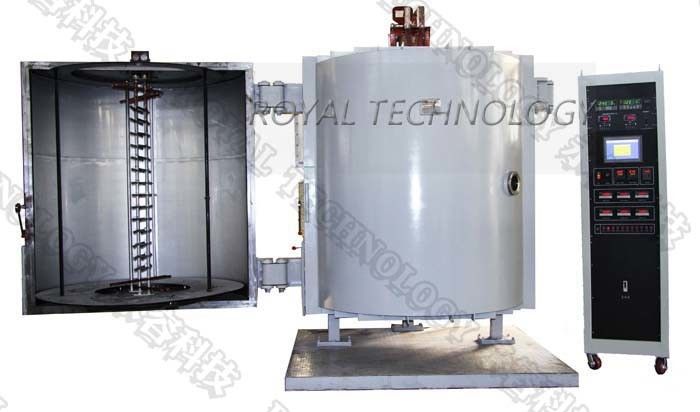

Beverage bottles Thermal Evaporation Coating Unit / Bottle Caps Vacuum Metalizing Machine

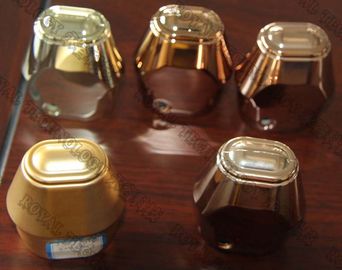

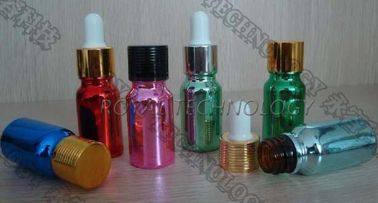

Beverage bottles Thermal Evaporation Coating Unit is widely used for injection plastic bottles, plastic caps for wine bottle caps, cosmetic caps, beverage bottles, beverage bottle caps, medicine bottle caps etc.
All for Decorative and aesthetic coating purpose to get various colors: rainbow multiple colors, green, blue, gold, silver, red, black, matt gold, matt silver etc.
Beverage bottles Thermal Evaporation Coating Unit Advantages
Finishes are deposited using an environmentally friendly green process;
Highly reflective, brilliant and bright colors;
High volume production, low cost, ideal solution for mass production demand.
Plastic Bottles Caps Thermal Evaporation Coating Unit Coating Process
Take an example of ABS plastic part
Beverage bottles Thermal Evaporation Coating Unit Models (Standard)
| Model | Size(mm) | Substrate Jigs (Qty.) | Evaporation Power(kVA) | Plasma (kVA) | Ultimate Vacuum | Cycle Time | Electrical Power |
| RTEP1012 | Φ1000xH1200 | 6,8,10 | 20 | 7 | 8x10-4Pa | 10'~15' depends on Product |
3Phase/AC380V,50HZ |
| RTEP1416 | Φ1400xH1600 | 6, 8,16 | 30 | 7 | |||
| RTEP1418 | Φ1400xH1800 | 6,16 | 35 | 10 | |||
| RTEP1616 | Φ1600xH1600 | 8.16 | 35 | 10 | |||
| RTEP1618 | Φ1600xH1800 | 8.16 | 35 | 10 | |||
| RTEP1820 | Φ1800xH2000 | 6 | 40 | 10 | |||
| RTEP2022 | Φ2000xH2200 | 10,12,16 | 40 | 10 |
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
