2 Manipulators Low Pressure Die Casting Machine For Brass / Zinc Alloy Products

1 set
MOQ
negotiable
Price
2 Manipulators Low Pressure Die Casting Machine For Brass / Zinc Alloy Products
Features Gallery Product Description Request A Quote
Features
Specifications
Model: Automatic Low Pressure Die Casting Machine
Manipulator: 2 Manipulators, Rotary Moving
Applications: Die Castings For High Quality Of Brass Alloy And Zinc Alloy Metal Products, Especially On Faucets, Valve Bodies And Sanitary Fittings And Accessories.
Operation: 1- Man Working, Automatically
Max. Die: 550*400mm
Advantage: Cost-efficient Production
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

automated industrial equipment

,

industrial automation machines

Basic Infomation
Place of Origin: CHINA
Brand Name: NONE
Certification: CE
Model Number: LD5540-S
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12~16 weeks
Supply Ability: 7 sets per month
Product Description

  Automatic Low Pressure Die Casting Machine for Brass Alloy and Zinc Alloy products with 2 -manipulators





The LPDC5540-S  equipment consisting of main components: casting device, induction furnace, receiving car, graphite bath, die cleaning device,crane, two  manipulators, hydraulic and drives system, pneumatic system, riser tube heating system and control system etc.



Applications:



The Low Pressure Die casting machine are mainly for brass alloy and zinc alloy metal products, especially on faucets, valve bodies and sanitary fittings and accessories.

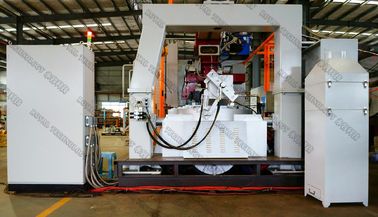

2 Manipulators Low Pressure Die Casting Machine For Brass / Zinc Alloy Products 0  2 Manipulators Low Pressure Die Casting Machine For Brass / Zinc Alloy Products 1



Advanages:



1. High quality casting and high-precision repeatability , automated casting with servo motor driving, linear guiding rail system;

2. High capacity ranges 400~450 castings per shift (8hrs);

3.Quick die change flange, 5 mins by munually ;

4. Furnace heating method: gas burner is standard and elctricity for option;

5. Max. die diemension 550*400mm;

6. Whole set machine cooled by cooling water for a efficiency cooling, highly improve inductors service life;

7. Zinc Oxide dust cleaning unit for furnace cleaning;

8. Industrial PC control with Ethernet cables, die casting programs up to 200 saved, recording & tracking furnace temperature;

9 .Cost-efficient production ( reduced melting loss,multiple die,one-man operation,increased yield);

10. Humanization of the work station (ergonomic design of the work station,minimizing of heat,noise and danger of accident)



Technical Parameters:



Code Item Model: LPDC5540-S
1 External Size: L*W*H (mm) 6000*6000*3400
2 Power Rate (KW) 180
3 Operating Voltage (V) 380
4 Qty. of Manipulator (sets) 2
5 Max. Die Mould Weight (KG) 180
6 Max. Die Mould Dimensions(mm) 550*400*250
7 Power of Electric Furnace(KW) 2*80
8 Furnace Melting Capacity (kg/hr) 520
9 Qty. of Furnace (set) 1
10 Qty. of Mould Cleaning Bin (set) 1
11 Qty. of Feeder (sets) 2
12 Qty. of Grahite Bath (set) 2
13 Qty. of Crane (set) 1
14 Max. Loading of Crane (KG) 500
15 Qty. of Tube (pieces) 3
16 Gas Pressure (KG) 6
17 Water Pressure(KG) 3
18 Max.Temp. of Furnace (℃) 1250
19 Temp.of Cooling Water(℃) 20±2
20 Max. Speed of Manipulator 35° / Sec.
21 Max. Clamping Stroke of Mould (mm) 370
22 Angle Range of Mould Soaking (°) 0~90
23 Pressure of Thimble (KG) 540
24 Stroke of Thimble (mm) 50
25 Pressure of Casting (Bar) 50~1200





Equipment Size: L*W*H

LD5540-D

6500*6000*3400mm

LD5540-S

7000*7000*3687mm

Total Weight 13T
Total Power 125KW 180KW
Operating Voltage 380V 380V





Low Pressure Die Casting Machine Wokring Process



CLICK HERE TO WATCH THE VIDEO



2 Manipulators Low Pressure Die Casting Machine For Brass / Zinc Alloy Products 2





Please contact us for more specifications with your inquiry today! Our honor to sever you with our best service and highest quality.
