Plasma-polymerized HMDSO coatings on car lighting by PECVD process, Car Light HMDSO coating machine

1 set
MOQ
negotiable
Price
Plasma-polymerized HMDSO coatings on car lighting by PECVD process, Car Light HMDSO coating machine
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber: Vertical Orientation, 2-door,
Material: Stainless Steel 304/316
Coating Technology: PECVD Process, HMDSO, Car Light HMDSO Plasma Coated
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

glass coating equipment

,

chrome plating machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTEP-HMDSO
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 weeks
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Product Description

Plasma-polymerized HMDSO coatings on car lighting

HMDSO plasma coated by PECVD process on automotive lights -- with MF power discharge.



For car lighting PVD coating solutions, the coating process had experienced a change from complicated process till the advanced technique.

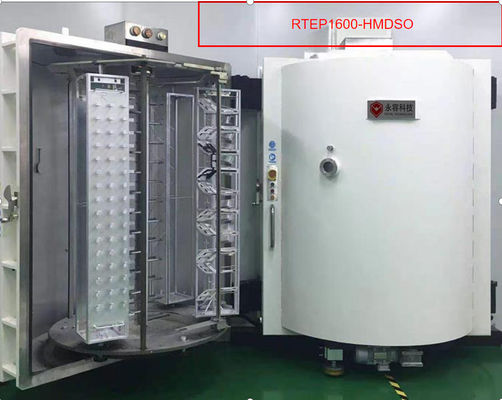

Plasma-polymerized HMDSO coatings on car lighting by PECVD process, Car Light HMDSO coating machine 0




HMDSO Coating Technologies on each steps:


1) Plasma Ionization Pre-treatment -- glow discharging, standard gas is Argon and N2 is for optional.
2) PECVD reaction -- HMDSO base coating to enhance the adhesion between substrate and Aluminum layer.
3) Aluminum thermal evaporation
4) PECVD reaction -- HMDSO top coating
3. Steps 1, 2 & 3 are regarded as essential pre-treatment before PVD coating, also is a guarantee of a high quality coatings.
4. 1) If lights are produced with high class moulds, and no need primer coating, lights can be put into the Vacuum Metallizer directly,
the coating processes: HMDSO---> Aluminum Metallizing---> HMDSO
2) If the lights surface are not smooth, the primer coating is required, so following the step 4 and 5,
the coating process: Aluminum Metallizing--->HMDSO







Advantages



A: 2-door structure machine for a fast loading/unloading, high yield;

B: Robust structure design;
C: High vacuum pumping speed configurations;

D:  Simens PLC + SiemensTouch Screen Operation System, fully automatically /Manually control;

E: Easy access to the working environment for maintenance work;

 F: The unique rotary rack and evaporation system to guarantee a high uniformity.

----- The height from substrate to evaporation source can be adjusted flexibly ;

----- Evaporation sources distance can be adjusted;
------Bombardment device for strong adhesion (your machine might not require this unit)
G: HMDSO module to do TOP protective layer. The PVD metallization and HMDSO (PECVD process ) completed in PVD machine chamber, avoid the contamination, which reduce the production cost and improve high yield.



ONE TOUCH OPERATION, HIGH PRODUCTIVITY, HIGH YIELD, ENERGY SAVING.



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.



Plasma-polymerized HMDSO coatings on car lighting by PECVD process, Car Light HMDSO coating machine 1





Car lighting Aluminum Metallization samples (HMDSO process)



Plasma-polymerized HMDSO coatings on car lighting by PECVD process, Car Light HMDSO coating machine 2



Please contact us today for a FREE professional coating solutions proposal.
