Wear Resistance Innovative Custom PVD Machine Metal Plating Chrome Plating Of Alloy Car Wheels

1 set
MOQ
negotiable
Price
Wear Resistance Innovative Custom PVD Machine Metal Plating Chrome Plating Of Alloy Car Wheels
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Wear Resistance, Strong Adhesion, High Shiny Decorative Coating
Vacuum Technology: DC Sputtering Deposition, PVD Magnetron Sputtering
Deposition Targets: Chrome, Aluminum, Al, Au, Copper, SS316, Ti Etc. Pure Metals
Industrial Applications: Truck Wheels, Car Wheels Repairing
Capacity: 1 Piece Per Cycle
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

copper plating machine

,

chrome plating equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTSP900
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 12 sets per month
Product Description



The RTSP900 machine is designed for the customers who are aiming to provide Car rims, automotive aluminum alloys wheels repairing service.  Its avaible for max. 27" size truck rims.









PVD Chrome was originally designed for the aerospace industry and has since become a highly popular finish in the automotive industry.
Process:
1. PVD Chrome on car wheels application is a powder coated process, first using a powder coating primer to protect the integrity of the part. 2. After the powder coated process, the part enters our PVD Chamber where a mixture of metals are sputtered onto the part creating a chrome finish.
3. The part is then coated with a high quality acrylic clear powder coat to protect the chrome finish.
Features:
Unlike traditional chrome plating, that pit and peel with normal wear and tear.
1. PVD Chrome is a highly durable process that exceeds the life of chrome plating.
2. PVD Chrome plating is a 100% environmentally green process.
3. PVD wheels are 80% lighter than chrome plated wheels which leads to increased fuel economy.
4. PVD Black Chrome / PVD Bright Chrome / PVD Neo-Chrome are available.

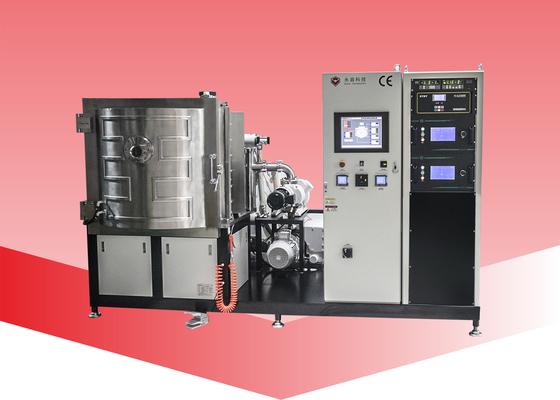

The RTSP900 equipment consists of: vacuum chamber, vacuum pumps, sputtering cathode, Rack and Fixture, heating & cooling, water & gas (distribution), electrical control & operation systems etc.


1.The rotary rack is exclusively designed for car wheel's coating, to gaurantee a high uniformity of film deposition.
2. Benefits: eco-environment, easy to operate, compact foot print, low cost of owner ship, fast substrate exchange.
3. Coating targets: Chrome, Aluminum, Copper, Titanium, Stainless Steel etc.

4. Coatings Advantages: high shiny and bright colors, strong adhesion & excellent scratch protection.



Royal Technology serves you with our strong background of R&D support, focus on details of manufacturing. We provide the turnkey coating solutions.
1. Powerful pump set for short cycle time and high productivity

2. Compact footprint design
3. Exclusive planar sputtering cathode for high coatings quality, fast deposition rate, high ultilization target rate is up to 35%,
4. Max. size of wheel: 24" 5. Magnetic fluid sealing method for a stable running.



Wear Resistance Innovative Custom PVD Machine Metal Plating Chrome Plating Of Alloy Car Wheels 0

High Lights:



1. Plugged-in designed and built equipment, customer only need to connect power, compressed air, cooling water insite.

2. One-touch HMI program. There are 0~9 totally 10 coating recipes can be saved.



Wear Resistance Innovative Custom PVD Machine Metal Plating Chrome Plating Of Alloy Car Wheels 1



RTSP900- 3D design illustration



Wear Resistance Innovative Custom PVD Machine Metal Plating Chrome Plating Of Alloy Car Wheels 2






Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
