TiN Hard Coatings, PVD Hard Coating Machine On Cutting Tools And Molds

1 set
MOQ
negotiable
Price
TiN Hard Coatings, PVD Hard Coating Machine On Cutting Tools And Molds
Features Gallery Product Description Request A Quote
Features
Specifications
Technology: PVD Hard Coating Equipment For Cutting Tools & Molds
Coating Films: TiN, TiCN, TiAlN Etc.
Operation: Industral Computer, IPC + PLC
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

chrome plating machine

,

glass coating system

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 14 weeks
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Product Description

                                       TiN Hard Coatings, PVD Hard Coating Machine On Cutting Tools And Molds



Applications



Hard coatings are becoming widely used in the decorative coating and industrial tools (HSS or HSCmaterials). The coatings are more resistance to wear and corrosion, to fulfill the tools functions more reliably and for a longer life time, 3-5 times longer than without coating in general.

  • Cutting Tools: Suggested Coatings: AlTiN/TiAlN, TiCN and TiN
    Sawing, milling, CNC insert , drilling, hobbing and gear cutter etc.
  • Punching & Forming: Suggested Coatings: CrN, TiCN and TiN
  • Metal Stamping
  • Moulding ( Plastic Injection Mold): Suggested Coatings: TiCN and TiN
  • Die Casting
  • Precision Components
  • Automotive parts surface coating



And others which need harden coatings but not listed here.





Hard Coating Properties



  • High Hardness
  • High Ductility
  • Low Coeffient of Friction
  • Resistance of Cracktion
  • Improved Oxidation
  • High Thermal Stability
  • Chemical Stability Against
  • the Workpiece Material
  • Longer life time

Coating FIlms

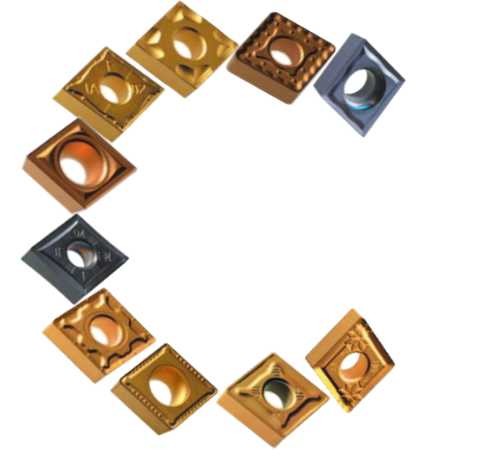

TiN Hard Coatings, PVD Hard Coating Machine On Cutting Tools And Molds 0





Technical Advantages



HTC800 hard coating machine is designed and manufactured strictly following CE standards.



  • Filtered arc cathodes to reduce the droplet
  • High ionization rate, high density of deposited film
  • Advanced linear ion source device for plasma cleaning and PAD
  • Unique arc plasma etching system
  • Multiple compound coating processes are available
  • One-Touch auto coating system, equipped with IPC program
  • Turntable can be removed out to provide a high efficiency coating cycle.
  • 3D rotary rack design structure for a high uniformity
  • Cycle Time: 5~6 hrs
  • Coating films: TiN/TiCN/CrN/CrC/ TiAlN/AlCrN etc.

Technical Specifications



Model HTC800
Chamber Size Φ800×800mm (H)
Effective Volume Φ500×450mm (H)
Ultimate pressure 5.0×10-4Pa
Pumping speed the pumping time from atmosphere to 5 × 10-3pa is less than 30 minutes;
Pressure rise rate

≤ 0.4pa/hr;



Heating time Room temperature till 500°C≤90min
Technology Ion plating, hard coatings on cutting tools, molds
Operation & Control System

One-Touch auto coating system, equipped with IPC program



Gas System High precision PLC
Safety System Numerous safety interlocks to protect operators and equipment
Cooling system Circular Cooling water: pure water, pH 6.5-8.
Water pressure, above 0.2MPa (provided by the user);
Footprint L4000mm × W33000mm × H2100mm;
Total Power Max. (Approx.) 80kW
Actual average power consumption 40kW Approx.



Tailored development and design on special request. From designing,till manufacturing, installation, operation training,

maintenance...software system upgrades, ONE-STATION SERVICE from Royal Tech.



Please contact us for a FREE consult of your coating solutions.
