Place of Origin: | Made in China |
---|---|
Brand Name: | ROYAL |
Certification: | CE |
Model Number: | RTSP |
Minimum Order Quantity: | 1 set |
Price: | negotiable |
Packaging Details: | Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation. |
Delivery Time: | 8 to 12 weeks |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 10 sets per month |
Sputtering Targets: | Al, Cr, Ag Glass Mirrors | Application: | Car Chrome Mirrors, Automotive Mirrors, Chrome Coating Mirror |
---|---|---|---|
Advantages: | Fast Cycle, High Productivity, High Uniformity Film | ||
High Light: | magnetron sputtering equipment,vacuum deposition equipment |

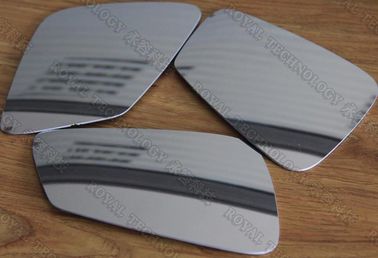

Magnetron Sputtering Coating Machine for Car Mirrors, Automotive Chrome Mirror Sputtering Deposition

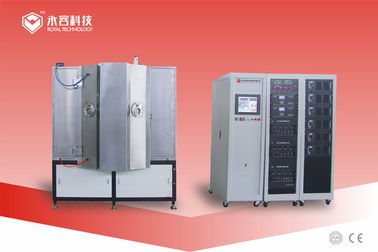

RTAC-SP series vacuum coating system is available for manufactures who are looking for high productivity and total coating solutions.
Benefit
Robust design, large batches, fast cycle, flexible coating processes are the basic design concepts Royal Technology has been pursuing.
Compared with traditional wet eletroplating, the PVD silver ion plating process generates the brighter and higher reflective film. Thus it widely used for decoration and reflection industries. The substrates are various: plastic till metal, ceramic, glass, stainless steel etc.
As an advanced coating technology which can reduce up to 80% production cost and the most important is the great surface finishing.
RTAC1250-SP Specifications | |||||||
MODEL | RTAC1250-SP | ||||||
TECHNOLOGY | DC Magnetron Sputtering + Ion Plating | ||||||
MATERIAL | Stainless Steel (S304) | ||||||
CHAMBER SIZE | Φ1250*H1250mm | ||||||
CHAMBER TYPE | Cylinder, vertical, 1-door | ||||||
SPUTTERING SYSTEM | Exclusively design for thin black film deposition | ||||||
DEPOSITION MATERIAL | Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel |
||||||
DEPOSITION SOURCE | 2 Cylindrical Sputtering Targets + 8 Steered Cathodic Arc Sources |
||||||
GAS | MFC- 4 ways, Ar, N2, O2, C2H2 | ||||||
CONTROL | PLC(Programmable Logic Controller) + Touch Screen |
||||||
PUMP SYSTEM | SV300B - 1 set (Leybold) | ||||||
WAU1001 - 1 sets (Leybold) | |||||||
D60T- 2sets (Leybold) | |||||||
Turbo Molecular Pumps: 2* F-400/3500 | |||||||
PRE-TREATMENT | Bias power supply: 1*36 KW | ||||||
SAFETY SYSTEM | Numerous safety interlocks to protect operators | ||||||
COOLING | Cold Water | ||||||
POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
460V/3 phases/50HZ ( Asia compliant) | |||||||
380V/3 phases/50HZ ( EU-CE compliant) | |||||||
FOOTPRINT | L3000*W3000*H2000mm | ||||||
TOTAL WEIGHT | 7.0 T | ||||||
FOOTPRINT | ( L*W*H) 5000*4000 *4000 MM | ||||||
CYCLE TIME | 30~40 minutes (depending on substrate material, substrate geometry and environmental conditions) |
||||||
POWER MAX.. | 155 KW | ||||||
AVERAGE POWER CONSUMPTION (APPROX.) |
75 KW |
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
