Medical Biocompatible Thin Film PVD Coating System, Surgery Instruments PVD Vacuum Coating Machine

1 set
MOQ
negotiable
Price
Medical Biocompatible Thin Film PVD Coating System,  Surgery Instruments PVD Vacuum Coating Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Vacuum Technology: Arc Evaporation + MF Magnetron Sputtering
Deposition Sources: MF Sputtering Cathodes+ Arc Evaporation
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Application: Medical Devices / Surgery Instruments / Orthopedic Implants
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

thin film coating equipment

,

dlc coating equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE certification
Model Number: RTAS1000
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 6 to 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 15 sets per month
Product Description

Medical Devices Thin Film PVD Coating System / Orthopedic Implants & Surgery Instruments Sputtering Unit





Bio-compatible Medical PVD Coating

Royal Technology is experienced surface treatment and PVD coater for medical instruments, orthopedics, probes, alignment devices, implants and surgical cutting tools. Coatings are biocompatible and acceptable for use with external and internal devices that come in contact with skin, tissue, bone and blood.

Improved wear resistance
Reduced friction
Biocompatibility
Decorative colors & aesthetic
Chemical barrier
Nickel Sensitivity
Saline Solutions
Sterilization



Medical Devices and Instruments PVD thin film coating machine is integrated with Arc evaporation sources and DC/MF balanced/unbalanced magnetron sputtering techniques to deposite the biocompatible thin fims like: : ZrO2, AlxOy TiO2, Al2O3, AlTiN, CrN, AlCrN. TiCN, ZrN. TiAlCN, TiN, TiAlN, DLC etc.



The medical thin film deposition machine applications:
Medical Devices like Diagnostic Imaging

Surgical Instruments and Devices, Medical Diagnostics, Biomaterials Dental implants & Instruments

Vision & Eyewear Pharmaceuticals, Orthopedic Implants and Devices Drug delivery systems



Medical thin film deposition machine advantages:



1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.

5. Fast deposition rates and high quality surface finishes.



Medical thin film deposition machine technical features:



1. Deposition sources: evaporation of arc ion sources; DC / Pulsed DC / MF sputtering cathodes; Ion source unit for PACVD, PECVD process to get durable and strong adhesion films

2. The whole machine set is with high speed of vacuum pumping system, high uptime for a large production capacity;

3. Rotary rack and jig system is planetary driving model for a high film uniformity despotion.

4. Steered cathodic arc sources + Linear Ion Source + Planar sputtering cathodes, for a fast depositon rate.

5. Operated by changing different coating parameters and process.

Coating processes to deposit every each color is stored in PLC software recipes, totally 10 recipes are available. So that the AUTO COATING model is possible after the recipes are logged in. The full automatically operation is very helpful for primer PVD operators.



Medical thin film deposition machine Specifications

MODEL RTAC1000-SP
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1000*1000mm (H)
CHAMBER TYPE Cylinder, vertical, single door
SINGLE PUMP PACKAGE Rotary Piston Vacuum Pump
Roots Vacuum Pump
Turbo Molecular Pump
TECHNOLOGY Magnetron Sputtering + Ion Plating
POWER SUPPLY MF power supply + Bias Power supply
DEPOSITION SOURCE 2 sets of Cylinder Sputtering Target + 6 sets of Cathodic Arc Sources
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cooling Water
CLEANING Glow Discharge Cleaning
POWER MAX. 90KW
AVERAGE POWER CONSUMPTION 40KW

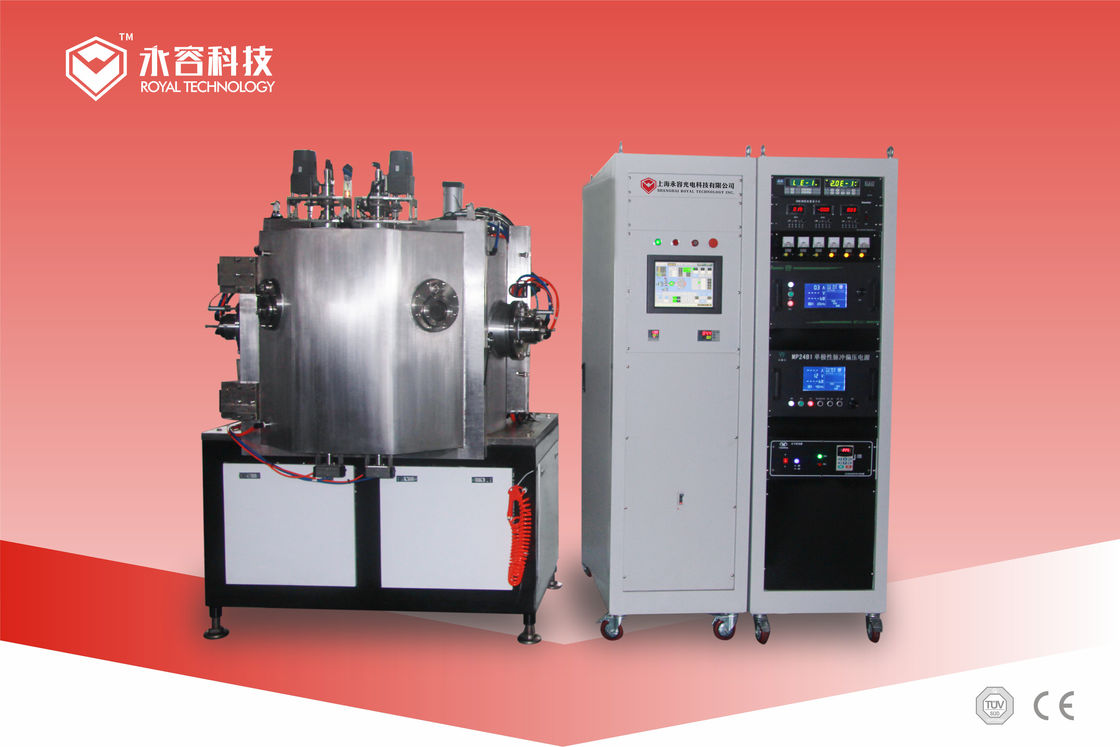

Medical Biocompatible Thin Film PVD Coating System,  Surgery Instruments PVD Vacuum Coating Machine 0

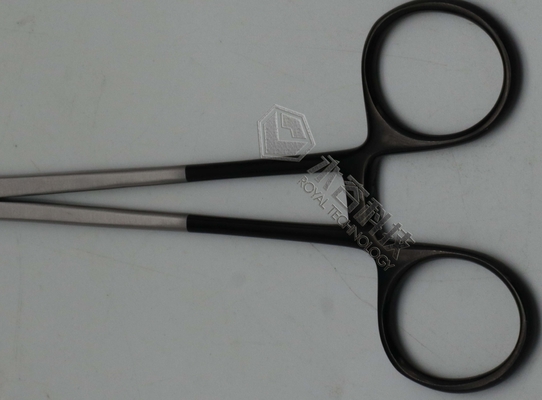

Medical Biocompatible Thin Film PVD Coating System,  Surgery Instruments PVD Vacuum Coating Machine 1

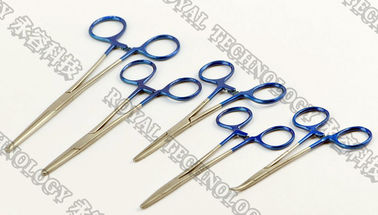

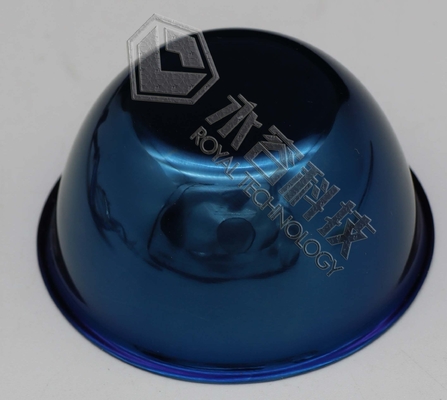

Medical Biocompatible Thin Film PVD Coating System,  Surgery Instruments PVD Vacuum Coating Machine 2  Medical Biocompatible Thin Film PVD Coating System,  Surgery Instruments PVD Vacuum Coating Machine 3





Customized machine sizes and coating recipes are available based on specified demand.



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
