ITO Film Magnetron Sputtering Coating Machine

Brand Name:	ROYAL
Model Number:	RTSP800
MOQ:	1 set
Price:	negotiable
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	6 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

CE certification

Coating Technology:

DC & MF Magnetron Sputtering

Equipment Features:

Robust Structure, Compact Footprint Design, High Efficiency And Precision Oepration Control

Coating Feature:

High Reflective, Excellent Corrosion And Wear Resistance

Operation Control:

Intuitive PLC And IPC Control

Service And Training:

Available, From The USA Engineer And Technicians

Name:

Magnetron Sputtering Coating Machine

Factory Location:

Shanghai City, China

Worldwide Service:

Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Training Service:

Machine Operation, Maintenance, Coating Process Recipes, Program

Warranty:

Limited Warranty 1 Year For Free, Whole Life For Machine

OEM & ODM:

Available, We Support Tailor Made Design And Fabrication

Packaging Details:

Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.

Supply Ability:

6 sets per month

Highlight:

magnetron sputtering equipment

vacuum deposition equipment

Product Description

ITO Film Coating Machine, Bath Type ITO film Magnetron Sputtering Coater / Glass ITO Deposition Machine

ITO Film Coating Machine Standard applications: PET, glass, to generate ITO coating layers.

Machine Built Time: 2012, China.

Application: AR film, ITO film.

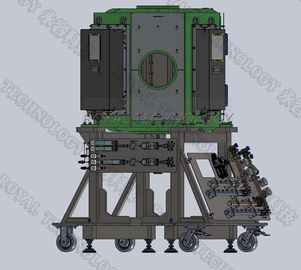

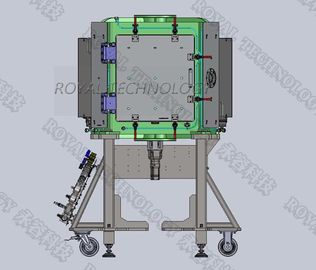

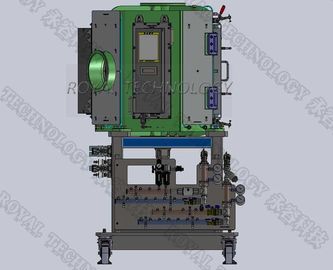

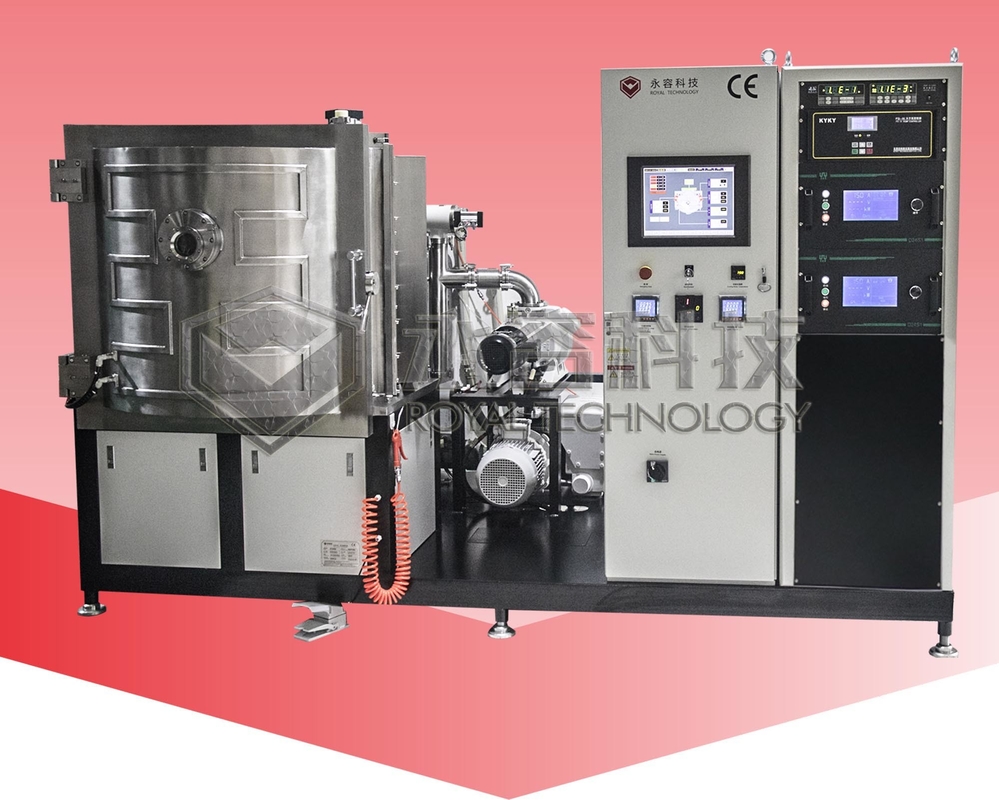

ITO Film Magnetron Sputtering Coating Machine 0

ITO Film Coating Machine PVD coating Figures

Work Pieces:

Size: 300mm*100mm

Thickness of PET: 0.175mm+/-0.05mm

*Thickness of ITO Film:185nm+/-5nm

Sheet resistance: 6~8ohm/sq

ITO Film Coating Machine Technical Configurations:

1) DC Sputtering Sources: Cu, Al, ITO

2) MF Sputtering Sources

3) Turbo Molecular pump + Backing Pump group

4) High-intensity magnetic field to improve ITO film quality, target utilization rate >30%

5) Cu, Al, Si targets utilization rate > 35%

6) Deposition Rate: 30nm m/min ~ 40nm m/min

7) Sputtering Uniformity Area: 350mm

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
