R&D Experimental Thermal Evaporation Coating System, Labrotary PVD Vacuum Metallizing Machine
1 set
MOQ
negotiable
Price
R&D  Experimental Thermal Evaporation Coating System,  Labrotary PVD Vacuum Metallizing Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTEP600
High Light:

thermal evaporation equipment

,

vacuum deposition machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 weeks
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 10 sets per month
Specifications
Evaporation Source: Thermal Filament, Thermal Boat, Thermal Box, Rod, Crucibles
Deposition Materials: Aluminum, Gold, Silver, Chromium, Copper, Indium, Indium Tin Oxide, Nickel
Applications: University Laboratory, Research And Development, Lab Teaching
Vacuum Evaporation Unit: Pvd Coating Machine, Vacuum Metalizing Machine, Chrome Plating Machine
Product Description

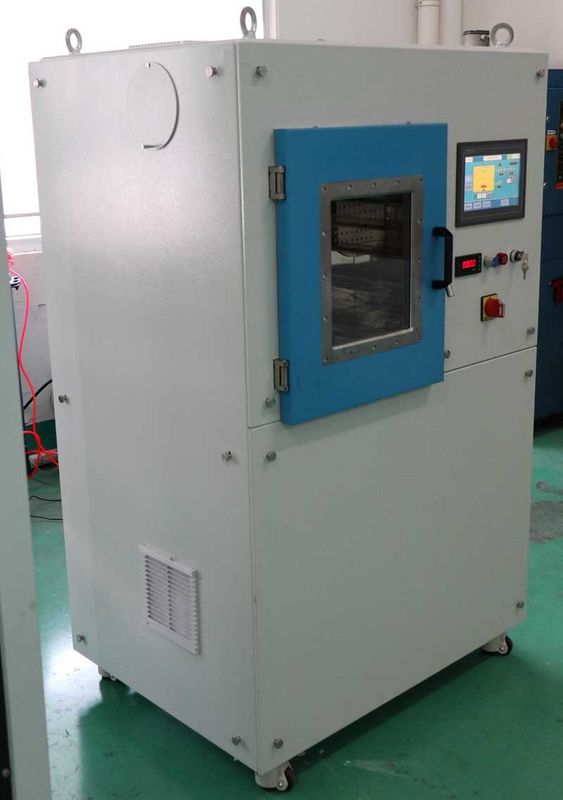

Small Size Experimental Thermal Evaporation Coating Unit / Portable Laboratory Vacuum Evaporation Equipment







The Small Size Experimental Thermal Evaporation Coating Unit is used widely for university laboratories, PVD vacuum coating teaching, vacuum coating process research and development, scientific researches, UV painting material’s manufacturers etc.



The evaporation coating unit contains tungsten boat, tungsten filament, Mo crucibles evaporating sources, which can evaporate and deposit the materials like: Aluminum, Chrome, Ni-Cr wires, Silver, Gold, Copper, In, Sn most metals which have lower melting point than the evaporation sources.



The Small Size Experimental Thermal Evaporation Coating Unit deposit the films mostly on plastic parts, PE, PVC, PC, ABS, PP, PC+ABS; resin glass, resin stones and crafts, ceramic, fabric and textiles, metal alloys ...



Experimental Thermal Evaporation Coating Unit SPECIFICATIONS
MODEL RTEP0606
TECHNOLOGY Resistant Evaporation Deposition
CHAMBER MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ600*600mm (H)
CHAMBER TYPE Cylinder, vertical, single door
EVAPORTATION SYSTEM 10* Φ120mm ( approx.) planetary rotary system, with 5 tungsten filament evaporation sources
PLASMA CLEANING SYSTEM

Power Supply and Plasma cleaning device * 1 set

(for optional)

EVAPORATION POWER SUPPLY 5kVA*1
DEPOSITION MATERIALS Aluminum, Silver, Copper, Chrome, Titanium,Stainless Steel, Sn, Au etc.
CONTROL PLC(Programmable Logic Controller) + Touch Screen ( manual+ auto+ semi-auto operation models)
PUMP SYSTEM Rotary Vane Pump TRP 90*1
Turbo Molecular Pump FF2000/250LF*1
Roots Pump ZJP70* 1
VACUUM GAUGE Model: ZDF-X-LE
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Industrial Chiller (Cooling Water) or Air Cooling for optional
POWER MAX. 8 KW (Approx.)
AVERAGE POWER CONSUMPTION 5 KW (Approx.)
GROSS WEIGHT 0.8T (Approx.)
FOOT PRINT ( L*W*H) 2000*2000 *2000 MM
POWER ELECTRICAL AC 380V/3 phases/50HZ / 4 line







The Small Size Experimental Thermal Evaporation Coating Unit is possible to combine Magnetron sputtering cathode and Arc cathode sources.



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
