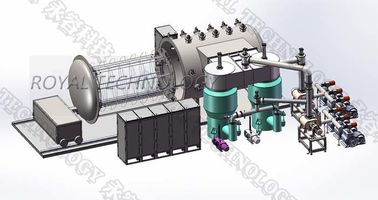

Horizontal Large Stainless Steel Sheets and Pipes Vacuum Ion Plating Machine / SS Sheets Decoration Vacuum Coating Unit
The Horizontal Large size Multi-arc vacuum plating machine is exclusively designed for large stainless steel sheets and pipes, furnitures PVD decoration colors coating.
The chamber size is up to dia 2000 * L 8000mm, which can coat the longest stainless steel pipe up to 7000mm.
Horizontal Large Size Multi-Arc Vacuum Coating Machine Specifications
| 1. Chamber | Cylindrical Structure | Front-side opening, stainless steel (S304 ), thickness: (14+6) mm, metal wire drawing process on surface. Cooling method: water, partially double layers. | 3. Control & Operation System | PLC+Color TouchScreen + Auto/ Semi-auto/Manually | |||||||
| Ultimate Pressure | 7.0×10-4 Pa ( without loading, empty chamber at room temperature) | Numerous safety interlocks to protect operators and equipment ( water, current etc.) | |||||||||
| Leaking | Better than 0.67Pa in 1 hour after turn off the machine when up to ultimate pressure | Process Automation & Control; Operating processes and recipes datas logging | |||||||||
| Pumpdown Time | From 1 atm to 5.0x10-3Pa<15mins (without loading, empty chamber at room temperature) | Administrator logging platform | |||||||||
| Inner Size | φ2000×8000(H)mm | Auto-turning off system | |||||||||
| 2. Coating Deposition System | Rotational System | Planetary Driving system ( for pipes) - ( φ1300*7000mm) Central Driving system to steel sheets. ( φ1600*7000mm) | 4. Utilities Supply ( provided by User) | Foot Print | (L1600mmm*W9000mm*H3200mm) | ||||||
| Rack Specifications | Max. Substrate Load: 1000KG; Speed: 0-8 rpm ( adjustable) Exclusive design by Vakia to ensure coatings formity and stability. | Water Supply | 1.Water 1) Water Consumption : 0.2-0.3MPa/CM2 2) Water Flow: ≥10L/min 3) Water Temperature: ≤25℃ | ||||||||
| Vacuum Pumps | 6x Rotary Vane Piston Pump (Mechanical) 2x Rotary Vane Vacuum Pump (Holding) 2x Roots Vacuum Pump 4x Diffusion Pump |
Power Supply | 3 phases 4 lines, AC380V±5% 50HZ； Ground wire: ＜3Ω | ||||||||
| Deposition Sources | Cathodic Steered Circular Arc: 60 sets, Dimensions: φ100×40mm Exclusive design by Vakia |
Reactive Gas | O2, Ar, N2, C2H2, (>99.99%) | ||||||||
| Bias Votage Supply | 72KW | Air Compressor | ≥7.5P, 0.6~0.7MPa, 6-8 kg/cm2 | ||||||||
| Heating | up to 250℃ (from room temperature till 200 ℃, less than 15minutes) | Air Container | ≥2m³ | ||||||||
| Substrate Carrier | for sheet coating; other substrate holders provided by customers based on different products. | Water Cooling Tower & Tank | 50T, 180L/min @ 10 - 25 ℃, 0.2~0.3MPa, 5kg/cm2 (Min) | ||||||||

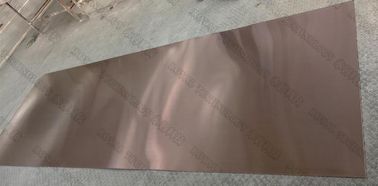

PVD Brushing Gold Colors

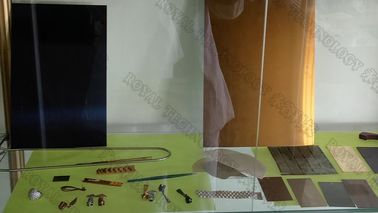

PVD Blue Color
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
