Fruit Dishes Cathodic Arc Deposition System , TIN  Gold PVD Plating Machine, ZrN Gold Multi Arc Coating Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Vacuum Technology: Arc Evaporation, Arc Ion Plating
Deposition Sources: Cylinder Arc Or Circular Arc Cathodes
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications: Bathroom Fittings Decorative Coating
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

hard coating machine

,

pvd coating equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE certification
Model Number: RTAC
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 6 to 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 15 sets per month
Product Description





Stainless Steel Fruit Dishes Ion Plating Machine / TiN Gold Steel Dishes Vacuum Coating Machine







Stainless Steel Fruit Dishes Ion Plating Machine is with the PVD vacuum arc discharge technology to evaporate targets and condense ions on product surface. The evaporation source (cathode) is ignited in a vacuum environment forming a self-sustaining arc discharge with the anode releasing target material ions from the cathodic arc radiant point. Due to the local current focus, the heat generated a localized ionization of the cathode material that, when combined with the reaction gas under the action of the workpiece bias, the deposits a plated film on the workpiece surface.





Stainless Steel Fruit Dishes Ion Plating Machine Specification



1. Vertical chamber, sandwich water-cooling, made of SUS304 stainless steel

2. Pumping system: mechnical pump+roots pump+diffusion pump or molecular pump +maintain pump

3. Operate at touch screen, controlled by PLC, manual and automatic

4. Alarm at unusual circumstances and taking safe measures

5. Real-time display the various data, automatic control of production process, automatic storage of parameters.

6. Pules supply, pulse bias supply

7. Anode layer ion source for optional.



MODEL RTAC1215
TECHNOLOGY plasma, ion plating,, cylindrical target
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1200*1500mm (H)
CHAMBER TYPE Cylinder, vertical, 1-door
EVAPORTATION SYSTEM Multi Arc Cathodes
DEPOSITION MATERIAL Titanium,Silver, Copper, Chrome, Stainless Steel, Aluminum,Nickel
CONTROL PLC(Programmable Logic Controller) + Touch Screen
PUMP SYSTEM Rotary Pistonr Vacuum Pump SV300B *2
Rotary Vane Vacuum Pump D60C *1
Roots Vacuum Pump WAU1001 *1
Molecular Pump KYKY F3500/400 *2
PRE-TREATMENT Bias Plasma Cleaning
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cold Water
POWER ELECTRICAL 480V/3 phases/60HZ ( USA compliant)
460V/3 phases/50HZ ( Asia compliant)
380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT L6000*W3400*H2500mm
TOTAL WEIGHT 7 T
CYCLE TIME

40 minutes (depending on substrate material, substrate geometry and environmental

conditions)

POWER MAX.. 60KW
AVERAGE POWER CONSUMPTION (APPROX.) 40KW

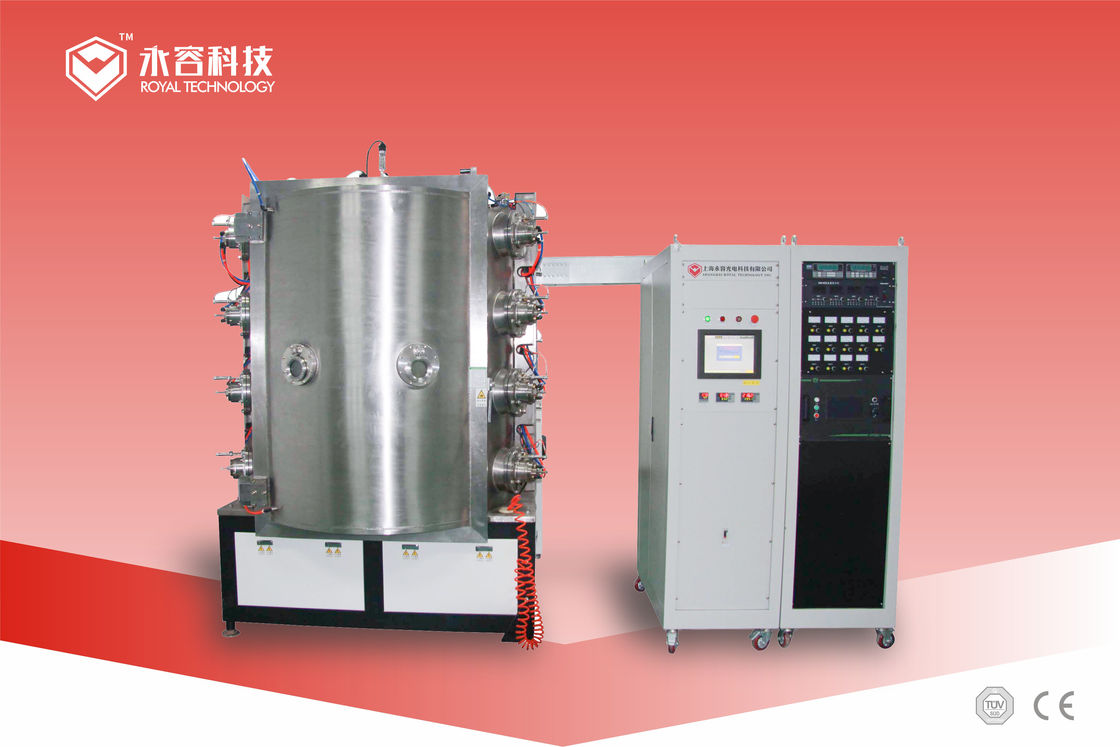

Fruit Dishes Cathodic Arc Deposition System , TIN  Gold PVD Plating Machine, ZrN Gold Multi Arc Coating Equipment 0







Stainless Steel Fruit Dishes Ion Plating Samples



Fruit Dishes Cathodic Arc Deposition System , TIN  Gold PVD Plating Machine, ZrN Gold Multi Arc Coating Equipment 1

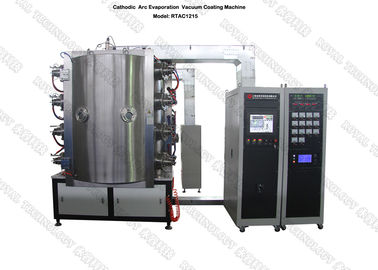

Fruit Dishes Cathodic Arc Deposition System , TIN  Gold PVD Plating Machine, ZrN Gold Multi Arc Coating Equipment 2



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
