RTSP1480- Air-To-Air Continuous Sputtering Deposition Line for Glass Yarns And Carbon Yarns Copper Coating

1
MOQ
negotiable
Price
RTSP1480- Air-To-Air Continuous Sputtering Deposition Line for Glass Yarns And Carbon Yarns Copper Coating
Features Gallery Product Description Request A Quote
Features
Specifications
Applications: Conductive Metal WiresMetal Coil And Metal Strip With Thickness Is Less Than 1mm Optical Fiber Twisted Fiber And Wires Such As Basalt Fiber (BFRP) And Carbon Fiber, Glass Yarns, Carbon Yarns
Sputtering Films: Ag Silver, Aluminum, Copper, Chrome, Ni Nickle
Technology: Magetron Sputtering + Ion Beam Plasma + Roll To Roll Winding System
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

coating machine parts

,

helium leak detector

Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: ROYAL TECHNOLOGY
Certification: CE
Model Number: RTSP1480-Air to Air Sputtering Line
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 6 months
Payment Terms: L/C, T/T
Supply Ability: 5 SETS/MONTH
Product Description



Turkey Coating Solutions, knows-how to transfer technology.



9- RTSP1480- air to air -continuous line- metal wi...        Please download catalogue here




Application



  • Conductive metal wiresMetal coil and metal strip with thickness is less than 1mm
  • Optical fiber
  • Twisted fiber and wires such as basalt fiber (BFRP) and carbon fiber, glass yarns, carbon yarns



Technical  Background


After decades of research and development, vacuum coating has been quite a mature film deposition treatment which has a positive prospect applications in various industries. It requires a comprehensive technologies to apply the vacuum coating technique to continuous wires and strips, which can modify the surface characteristics and functions, its significant lightweight performance makes an advantage for artificial intelligence devices.


Types of the existing vacuum coating production line for wires and strips substrates


(1)Separated type


(2) Air-to Air,full continuous coating type


The Air-to Air full continuous coating line is a completed continuous coating process processes which including cleaning pre-treatment in the atmosphere environment, and then the substrates ( strips or wires) enters into the vacuum chamber to get metal films deposited, in then end it back to atmosphere environment again through buffering chambers.
The coating line key structural modules:
A: Substrates (strips or wires) cleaning pre-treatment module
B: Cooling down module
C: Annealing module
D: Film deposition chamber
E: Loop devices and vacuum buffering chamber.
The whole coating line’s structure, operation and control system is more complex, extremely high investment but the advantages of high output and sharping down production cost efficiently make it is very attractive for manufacturers.

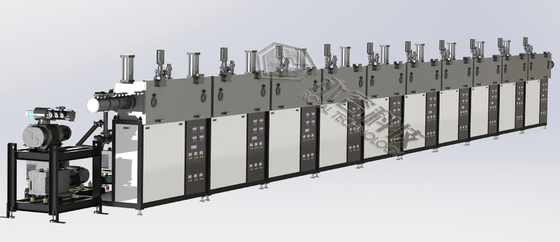

RTSP1480- Air-To-Air Continuous Sputtering Deposition Line for Glass Yarns And Carbon Yarns Copper Coating 0

                                                        Technical Discussion

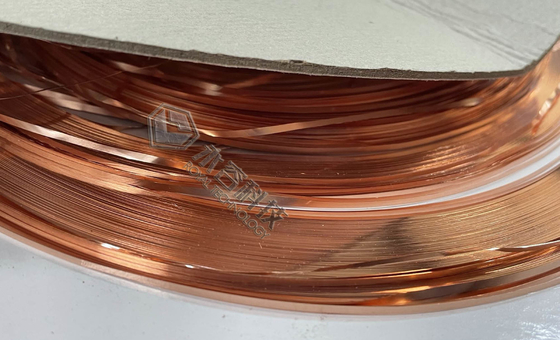

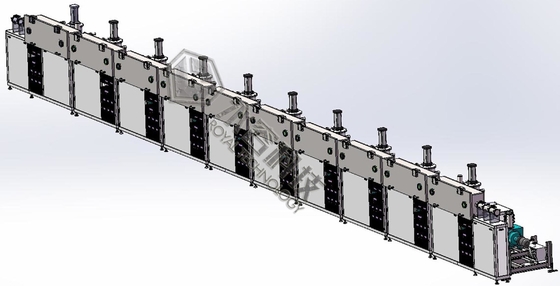

  RTSP1480- Air-To-Air Continuous Sputtering Deposition Line for Glass Yarns And Carbon Yarns Copper Coating 1 RTSP1480- Air-To-Air Continuous Sputtering Deposition Line for Glass Yarns And Carbon Yarns Copper Coating 2



                                                             Installation and Quality Inspection

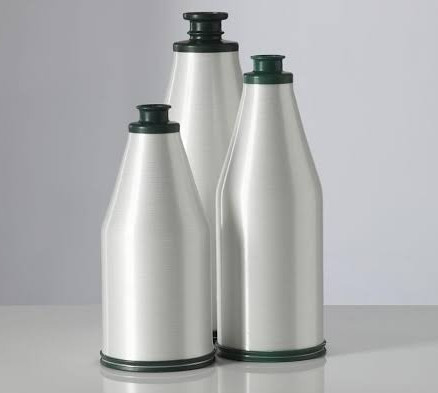

RTSP1480- Air-To-Air Continuous Sputtering Deposition Line for Glass Yarns And Carbon Yarns Copper Coating 3

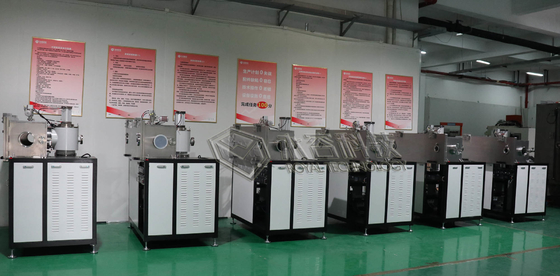

                               Installation and Commissioning in Customer's site




(3)Universal Type


(4) Multiple-layers coating type


The production line combine several different PVD coating methods: Electron beam evaporation coating, magnetron sputtering deposition and plasma enhanced CVD deposition.

Royal technology’s team has built the pilot system for industrial production line in 2019.
we are excited to announce that outsourcing coating service to us is available now.





Please contact us who is interested in the coating system, turnkey coating solution can be provided.
