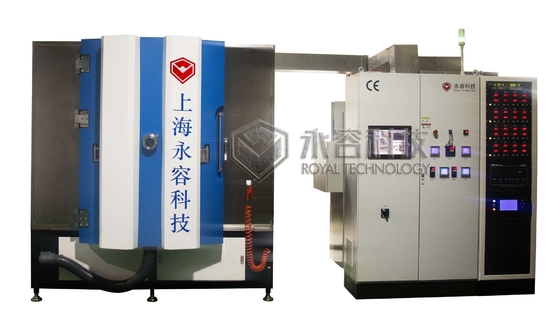

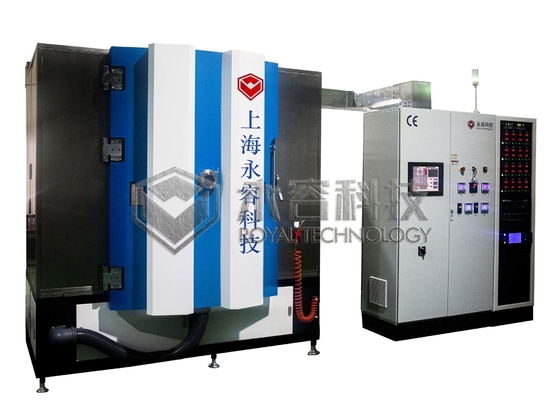

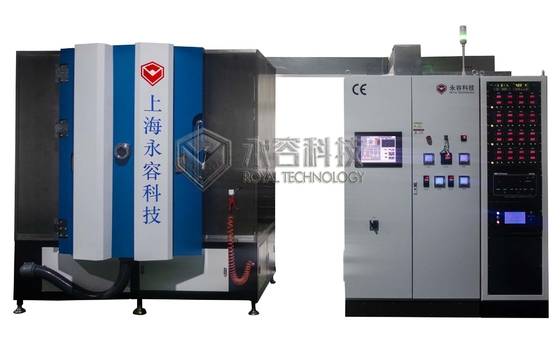

RT1600-PAPVD-Polymer Plastic Metallization Equipment- Plasma Assistant PVD coating
1 set
MOQ
negotiable
Price
RT1600-PAPVD-Polymer Plastic Metallization Equipment- Plasma Assistant PVD coating
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL TECHNOLOGY
Certification: CE
Model Number: RT1600-PAPVD
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Specifications
Technology: Plasma Assistant PVD, Low Temperature Arc Vapor Depositon
Applications: Engineering Plastics: PPS, ABS, ABS+PC, PA, PEEK Etc.
Machine Model: RT1600-PAPVD
Advantage: Environmentally Friendly
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description



Royal Technology provides  innovative PAPVD coating technology and equipment,  which can get rid of the electroless roughening process on engineering plastic parts.



Benefits

Environmentally friendly
Deposited thickness is controllable
Stronger adhesion
Water consumption saiving
Lower cost of craftmanship
Short cycle time



Applications:



Automotive industry is one typical application, “It is a disruptive coating method , we are so happy to say Good-bye to electropless process”, Mr. Woo said excitingly who provides the automotive plastic components from Shanghai city.



Substrates are applied with like  engineering plastics: PPS, ABS, ABS+PC, PA, PEEK etc.
RT1600-PAPVD-Polymer Plastic Metallization Equipment- Plasma Assistant PVD coating 0
                             PPS products with PVD Nickle, PVD Chrome plating



RT1600-PAPVD-Polymer Plastic Metallization Equipment- Plasma Assistant PVD coating 1

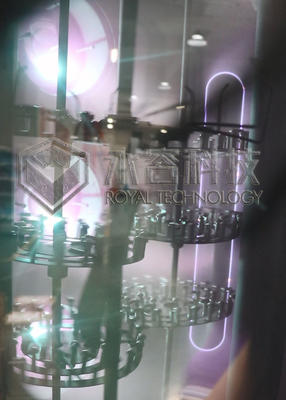

                                Plasma Assistant PVD Deposition





LTAVD , Low Temperature Arc Vapor Deposition, also named as Low Temperature arc ion plating. It is applied with low temperature resistance plastic workpieces for decorative coatings:


Consumer electronics: cellphone, computer, television, cameras;
Home appliances: air conditioners, washing machine, vacuum cleaners
Bathroom and kitchen fixtures;
Automotive industry: plastic interior trims and exterior trims, LOGO


RT1600-PAPVD-Polymer Plastic Metallization Equipment- Plasma Assistant PVD coating 2  RT1600-PAPVD-Polymer Plastic Metallization Equipment- Plasma Assistant PVD coating 3

                 ABS Mirror Gold                                                                  ABS Mirror Black



RT1600-PAPVD-Polymer Plastic Metallization Equipment- Plasma Assistant PVD coating 4

                                        ABS  Copper (Rose Gold) - Mirror and Matte Copper Plating



.RT1600-PAPVD-Polymer Plastic Metallization Equipment- Plasma Assistant PVD coating 5

                                           ABS Brown Coatings - Matte Brown



RT1600-PAPVD-Polymer Plastic Metallization Equipment- Plasma Assistant PVD coating 6   RT1600-PAPVD-Polymer Plastic Metallization Equipment- Plasma Assistant PVD coating 7

              ABS Matte Black                                                       ABS Matte Gold - car handle





Technical Specifications





Description

RT1600-PAPVD RT1600-LTAVD
Applications Engineering plastics: PPS, ABS, ABS+PC, PA, PEEK etc.

LTAVD , Low Temperature Arc Vapor Deposition, also named as Low Temperature arc ion plating. It is applied with low temperature resistance plastic workpieces for decorative coatings:

Consumer electronics: cellphone, computer, television, cameras;

Home appliances: air conditioners, washing machine, vacuum cleaners

Bathroom and kitchen fixtures;

Automotive industry: plastic interior trims and exterior trims, LOGO



Deposition Chamber

φ1600 * H1600mm



Load Diameter

(Max.)

10*φ300mm

16*φ200mm



6*φ420mm + 8*φ350mm



Load Height
( Effective)
1200mm
Deposition Sources 14 arc cathodes + 1 set planar sputtering cathode 14 arc cathodes
Pulsed Bias Power Max. 30KW
Footprint (L*W*H) 6500*6000*4300mm
Power Consumption

Max. 70KW

Average:40KW

Operation & Control System

CE standard

Mitsubish PLC+ Touch Screen

Operation Program with backup







These configurations are standard, for a specific developing market and new special coatings, the customized configurations and modifications are available on requests.





Please contact us for more information.







 Innovation is a disruptive change to the conventional technology.
