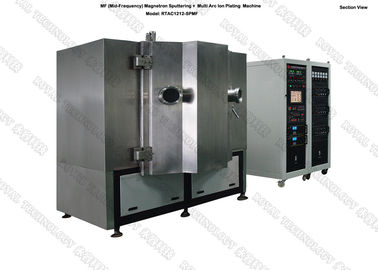

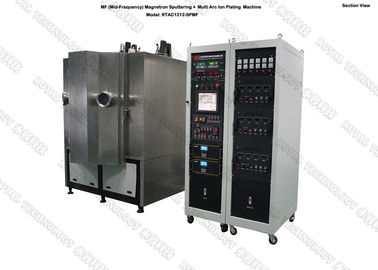

PVD Vacuum Plating Equipment For house window
RTAC-SP machine is for decorative coating on all kinds of house wares like: glass / metal / stainless steel materials.
Coating Equipment Features
1. High ionization rate , high deposition speed and strong adhesion
2. To replace the water-electroplating, 100% environmentally friendly.
3. Advanced control system and easy to operate , deposited at various substrate materials.
RTAC1250-SP SPECIFICATION:
| MODEL | RTAC1250-SP | ||
| MATERIAL | Stainless Steel (S304) | ||
| CHAMBER SIZE | Φ1250*1250mm (H) | ||
| CHAMBER TYPE | Cylinder, vertical, single door | ||
| SINGLE PUMP PACKAGE | Rotary Piston Vacuum Pump | ||
| Roots Vacuum Pump | |||
| Turbo Molecular Pump | |||
| TECHNOLOGY | Magnetron Sputtering + Ion Plating | ||
| POWER SUPPLY | MF power supply + Bias Power supply + Arc Powers | ||
| DEPOSITION SOURCE | 4 sets of Cylinder Sputtering Target + 8 sets of Cathodic Arc Sources | ||
| CONTROL | PLC+Touch Screen | ||
| GAS | Gas Mass Flow Meters | ||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment | ||
| COOLING | Cooling Water | ||
| CLEANING | Glow Discharge Cleaning | ||
| POWER MAX. | 130 KW | ||
|
AVERAGE POWER CONSUMPTION |
70 KW | ||

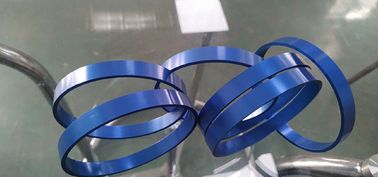

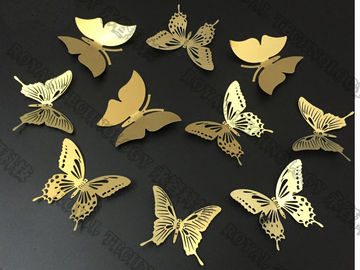

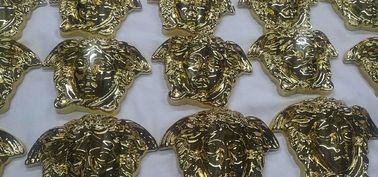

Coating Films:
To coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds films.
