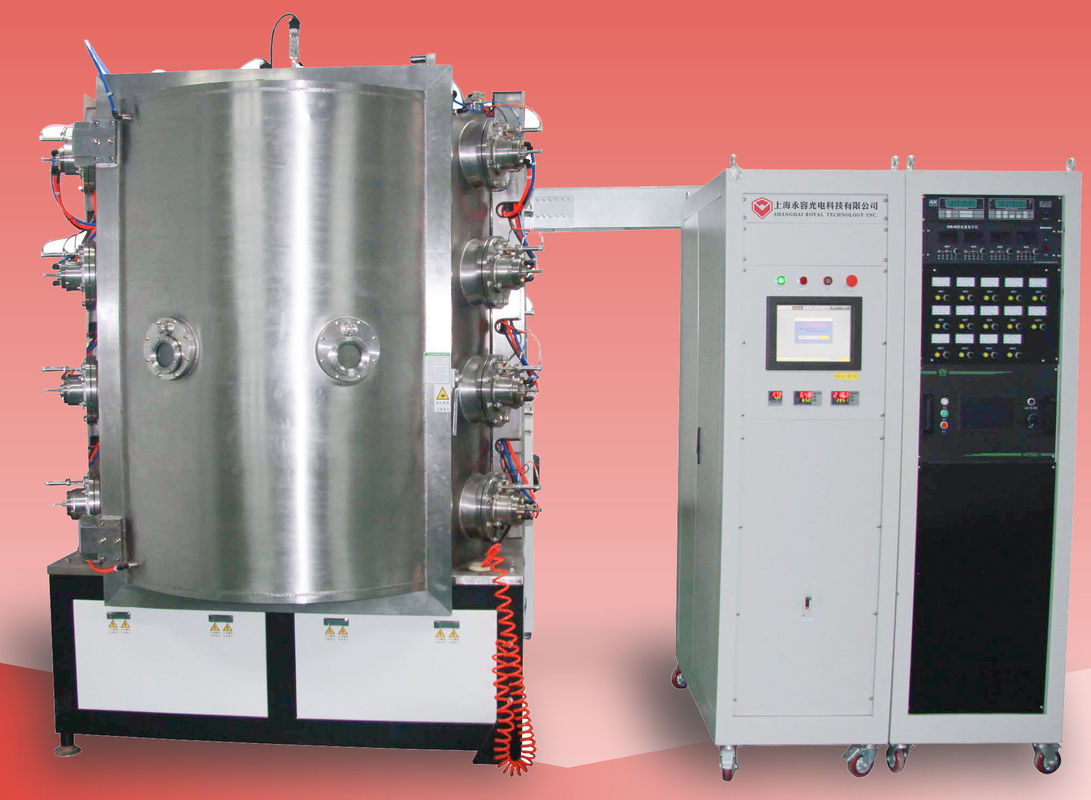

Arc Ion Plating Machine, PVD arc plating equipment, Multi Arc Evaporation Coating Machine
1. Vacuum chamber is vertical one open door , 304 stainless steel manufactures, vacuum chamber internal diameter from φ1000mm-Φ2200mm;
2. Vacuum system by Rotary vane pump, Roots pump and Oil Diffusion Pumps or Molecular Pump Constitution;

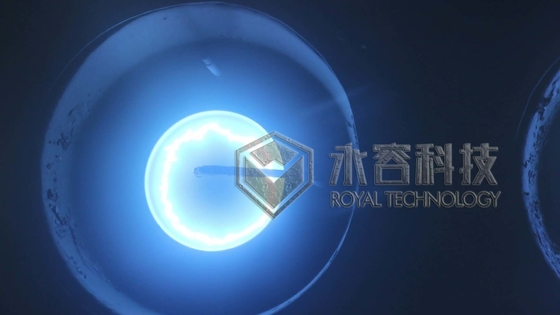

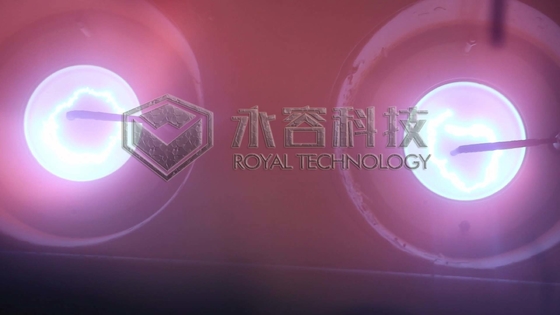

3. Coating system uses 1-2 intermediate frequency magnetism to control the sputtering power source, has 1-2 pair of non-balanced magnetism to control the target, and has 6-40 arc sources.
4. High efficiency pulse bias power source;
5. The gasification system uses domestically produced or the import gaseous mass flowmeter, the gas flow amount control (demonstration) meter;
6. The electrically controlled system establishment electric circuit overloaded, cuts off the water supply, dies the acousto-optics alarm device;
7. Control system (touch-screen +PLC), real time display detailed parameter, completely automatic control entire production process, and automatic memory technological parameter
Sn (Tin) Metal Drinkware Ion Plating Machine Specifications
Model |
RTAC-1008 | RTAC-1012 | RTAC-1215 | RTAC-1416 | RTAC-1618 | ||||||
| Chamber Inner size | 1000x800mm | 1000x1200mm | 1200x1500mm | 1400x1600mm | 1600x1600mm | ||||||
| Power supply type | Arc power supply, filament power supply, pulse bias power supply | ||||||||||
| Structure of vacuum chamber | Vertical front door structure, rear air exhaust system and double-layer water cooling chamber | ||||||||||
| Material of vacuum chamber | stainless steel 304/316L | ||||||||||
| Ultimate vacuum | 6.0x10-4Pa (unloading, clean, drying chamber) | ||||||||||
| Vacuum Pumping Speed | from atmosphere to 8.0*10-3Pa ≤15 minutes | ||||||||||
| Vacuum pumping system | Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump (the specific model can be selected according to customer requirements) |
||||||||||
| Arc source | 6 units or 8 units |
8 units or 10 units |
10 units or 12 units |
14 units or 16 units |
16 units or 18 units |
||||||
| Bias power supply | 20KW/set | 20KW/set | 30KW/set | 40KW/set | 50KW/set | ||||||
| Driving Model | Planetary revolution and rotation, variable frequency speed regulation (controllable and adjustable) |
||||||||||
| Heating System | Controllable and adjustable from room temperature to 450°C (PID temperature control) |
||||||||||
| MFC | 3-path or 4-path process gas flow control and display system, selective automatic gassing system | ||||||||||
| Cooling System | Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers) | ||||||||||
| Control mode | Manual/automatic integration mode, touch screen operation, PLC or computer control | ||||||||||
| Total power | 30KW | 35KW | 45KW | 60KW | 75KW | ||||||
| Alarm and protection | Alarm water shortage, over current and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function | ||||||||||
| Equipment area | W2.5m*L3.5m | W3m*L4m | W4m*L5m | W4.5m*L6m | W5m*L7m | ||||||
| Other technical parameters | Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa | ||||||||||
| Remarks | The specific configuration of coating equipment can be designed according to process requirements of coating products |
||||||||||

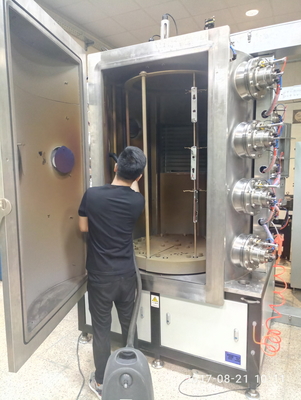

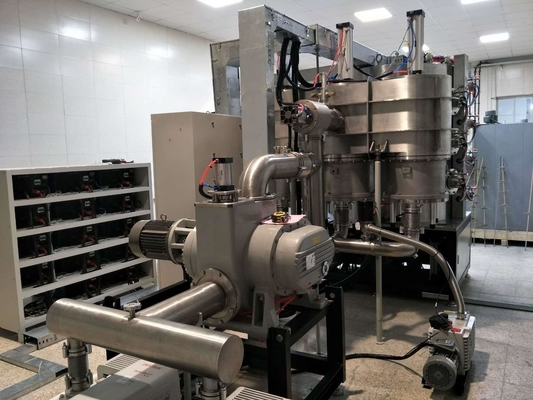

Machine Location: Iran
Built time: 2017
Applications: brass/zinc alloy door handles
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
