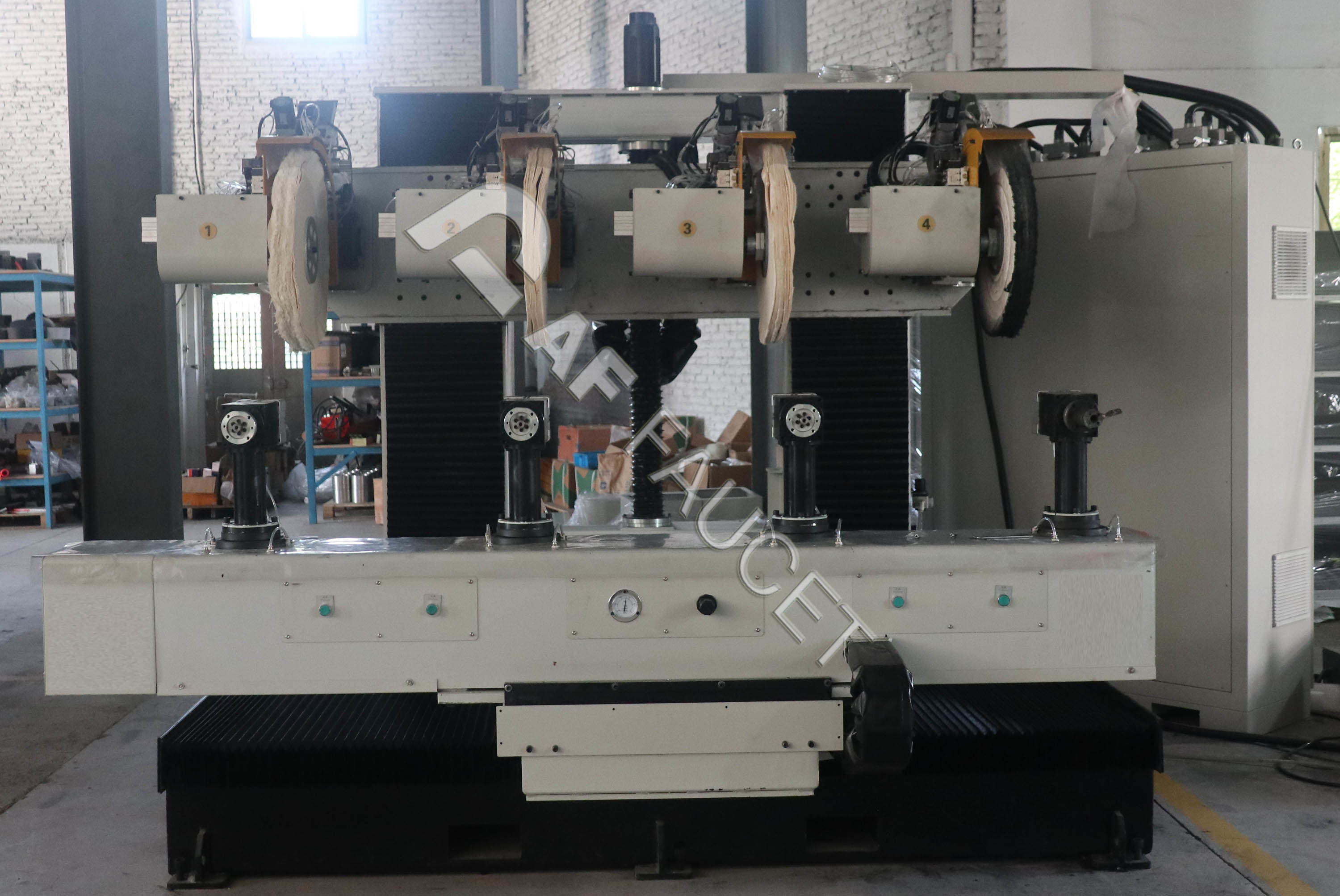

The RTAF-AP04 model is an advanced design system which contains 4 polishing spindles, the automatically polishing processes can be saved in program for recall using.
Its high efficient yields and low production cost benefits more and more manufacturers which makes it become the best solution of replace the heavy-labor workmanship and improve the products quality stability.
Application:

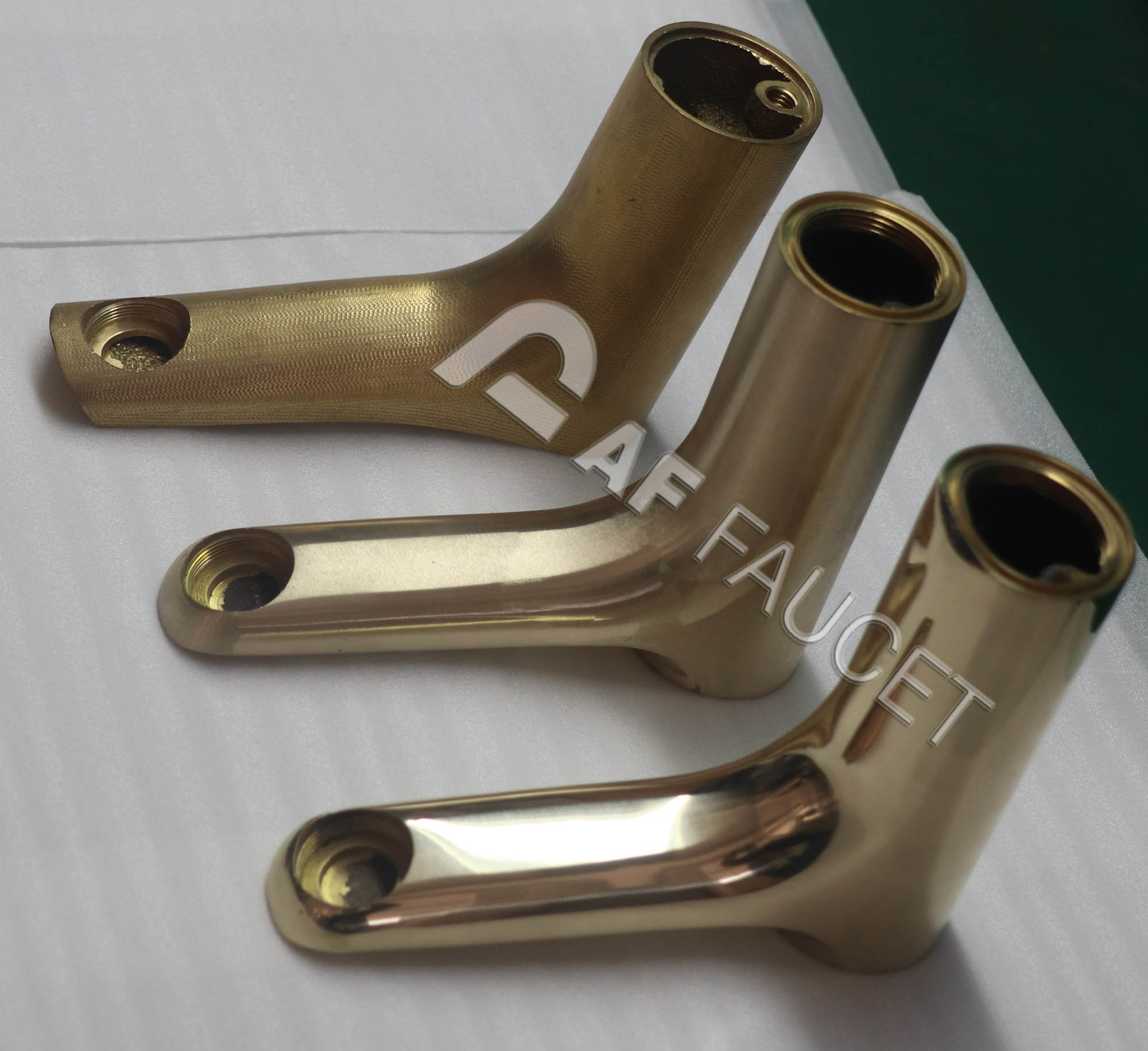

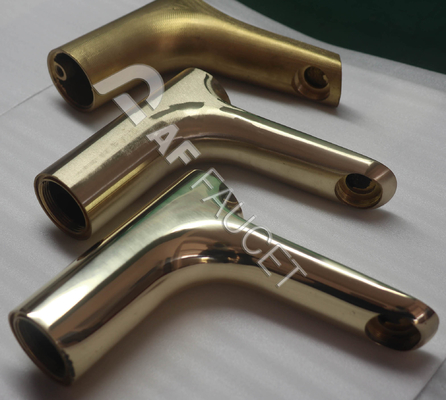

1. Brass alloy products: faucet body, taps, valve etc.
2. Zamak products: door handles, knobs, door lock plates etc.
3. Aluminum alloy products: furniture components, car wheels
4. Titanium alloy products: sport instruments like gold head; medical instruments 5. Stainless steel products: kitchen ware and flatware, table ware, stainless steel sinks, dishes, knives and cutlery
6. Plastic parts: electroplated ABS like hand shower, automobile components
7. Iron Castings: cabinets etc.
Only to make a few, for more application demands, please contact us for a free consultant, we are always at here to provide you the turnkey polishing solutions.
Advanages:
The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; high flexibility and high product efficiency. | ||||||||||||
With Italy PROMAX control system for high precision of control and high stability of move technology. | ||||||||||||
Software: Programmable, with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program | ||||||||||||
Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all directions. | ||||||||||||
Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation; | ||||||||||||
Solid polishing wax, to set up the wax spraying cycle time, frequency. | ||||||||||||
Full digital control, polishing program parameters can be saved and adjusted at any time. | ||||||||||||
CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair |
Key Components:
1 | Movement controller, PROMAX brand from Italy | ||||||
2 | Servo motor, PROMAX brand from Italy | ||||||
3 | Frequency conversion compensation system + control card, Delta Brand | ||||||
4 | Motor of polishing belt(cloth wheel) - Siemens | ||||||
5 | Main electronic components - Schneider | ||||||
6 | Linear Guilding rail and screws - HIWIN | ||||||
7 | Reducer -- Rossi from Italy | ||||||
8 | All bearings NSK | ||||||
9 | Gripper Steers - Taiwan |
Technical Parameters:
NO. | DESCRIPTION | 4-STATIONS | ||||||||||
1 | Dimensions (L*W*H) MM | 5000*3400*3000 | ||||||||||
2 | Power(KW) | 35 | ||||||||||
3 | Voltage (v) | 380 | ||||||||||
4 | Max. Diameter of polishing wheel (MM) | 600 | ||||||||||
5 | Min. Diameter of polishing wheel | 400 | ||||||||||
6 | X axis Stroke | 1200 | ||||||||||
7 | Y axis Stroke | 1100 | ||||||||||
8 | Z axis Stroke | 700 | ||||||||||
9 | U axis Stroke | ±60° | ||||||||||
10 | V axis Stroke | ±360° | ||||||||||
11 | W axis Stroke | ±360° |
Please contact us for more specifications with your inquiry today! Our honor to sever you with our best service and highest quality.
