Sanitary Faucet pipe PVD deposition machine Faucet thin film coating machine
1. The multi arc vacuum coater mainly for decorative and functional film coatings.
2. Benefits: eco-environment, easy to operate, compact foot print, low cost of owner ship, fast substrate exchange.

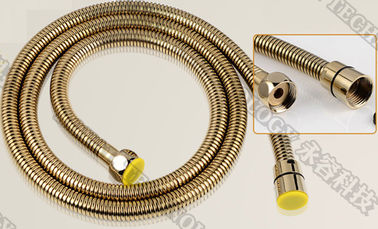

3. Coating Colors: gold, black, brown, grey, Chrome colors etc. Gold Colors: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Colors: TiCN, TiAlN, TiCN+Au-Cu, TiAlN+Au, Cu
Chrome colors: CrN, Ti, Cr
Gray Colors: stainless steel, stainless steel (N)
Brown Colors TiCN, TiAlCN, ZrC
Blue Color: TiO, CrO, TiALN
Black Colors: TiC, TiC+iC, TiCN, TiAlN, TiAlCN

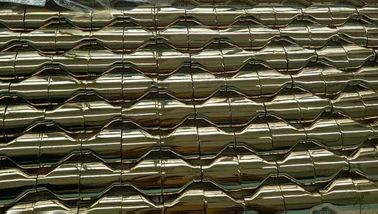

5. Substrates: stainless sheets and tubes, metal alloys, glass, ceramic materials
6. Coatings Advantages: high shiny and bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.

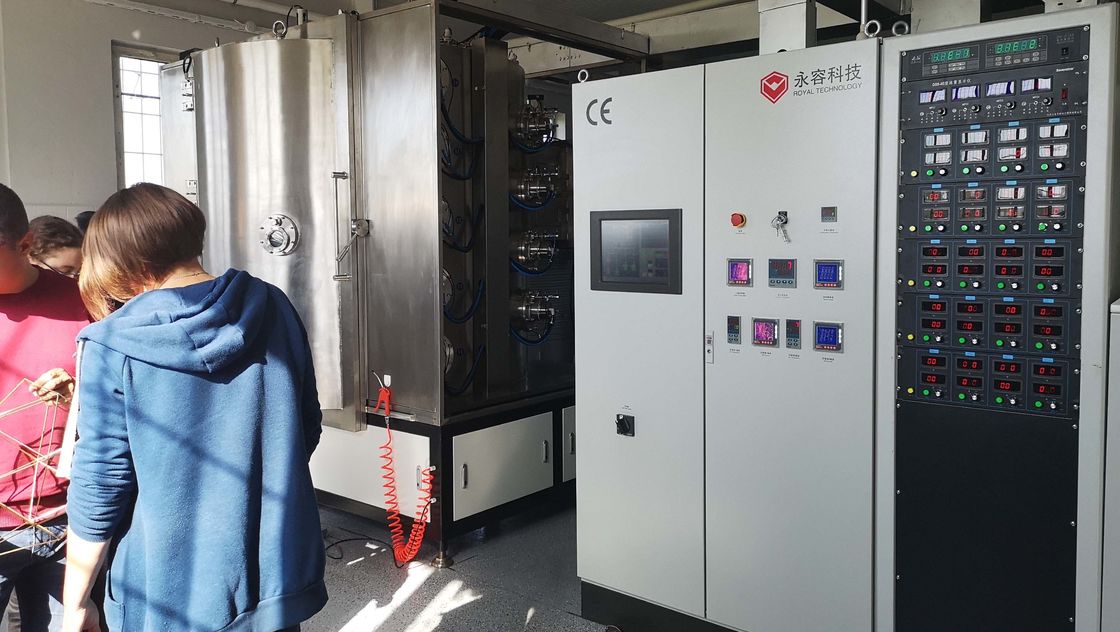

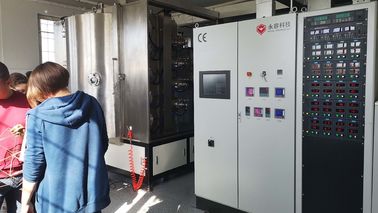

RTAC series equipment consists of: vacuum chamber, vacuum pumps, arc sources,
spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems etc. High lights of the design futures:
1. Flexibility: Arcs are standardized for flexible and quick exchange;
2. Versatility: can deposit variety of base metals and alloys; optical coatings, hard coatings, soft coatings, compound films and solid lubricating films on the metallic and non-metallic materials substrates. 3. Powerful pump set for short cycle time and high productivity.
4. Multiple depostion sources for different substrates materials.
5. Royal exclusive arc sources to guaranty high coatings quality, none color difference.
6. Turnkey coating solutions.
A.Ultimate Vacuum Pressure: better than 8.0×10-4 Pa
B.Operating Vacuum Pressure: 1.0×10-2 Pa.
C.Pumping down Time: from 1 atm to 8.0×10-3Pa≤15minutes ( @room temperature, clean and unloading)
D.Leaking Rate: 9.0-5 Pa m³/ sec. Or better than 0.67Pa in 1 hour after shut down the machine from ultimate pressure.
E.Deposition Materials: Stainless steel, Cr, Ti, TiAl, Zr … etc.
F.Deposition Sources: Arc cathodes
G.Operating Model: Full Automatically /Semi-Auto/ Manually
H.Safety Circuitry and Interlocks: numerous safety interlocks to protect operators and equipment ( water, current etc.) I: Heatings: up to 250℃,
furniture components, metal lamps, for high volume products
φ1600 * H1800
Effective Coating Area (mm)
Effective Coating Area (mm)
Pulsed Bias Power
|Circular Arc Cathode (sets)||18|
|High Vacuum Pumps||
2* Diffusion Pumps or
4* Turbo Molecular Pumps

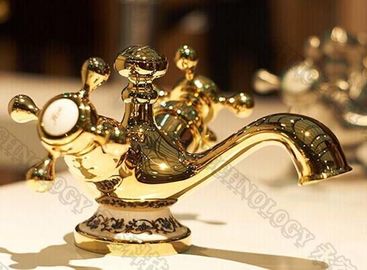

Turnkey Solution: for brass alloy faucets and Stainless steel faucets, Royal technology provides the turnkey service. From factory's design plan, mold, LPDC injection, automatically polishing, plating, cleaning to PVD coating, the whole production facilities can be provided.
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
