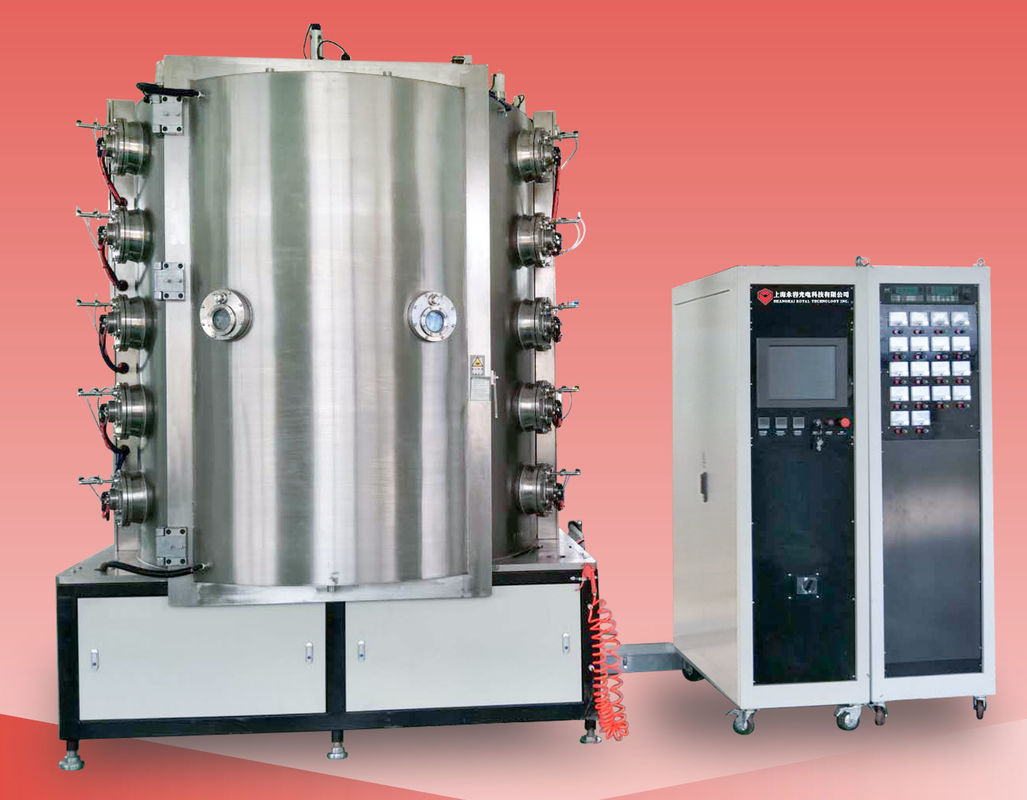

Ceramics in Bathroom Arc Evaporation PVD Plating Machine , PVD Decorative Coatings / Bathroom Fittings Ceramic Basin Ion Plating Equipment
Bathroom Ceramic PVD Plating Machine takes ion plating technology to evaporate solide metals like Titanium, Chrome by cathodic arc source and condense the ionized metals on product surface to generate the Nano thin film. With the reactive gas like: Nitrogen to generate various colors.
The PVD Ion Plating Technology applied with Ceramic products has been developed and used since 1990' years; in last decades, the PVD ion plating machines have used widely in various ceramic products: ceramic tiles, ceramic mosaic wall tiles, ceramic tableware, ceramic kitchen ware, ceramic bathroom finishings like: ceramic basins, ceramic toilets, ceramic holders etc.

Bathroom Ceramic PVD Plating Machine General Information

1. CAC series equipment consists of: vacuum
chamber, vacuum pumps, arc sources,
spindle & jack, jigs structure, heating & cooling,
water & gas (distribution), electrical control
& operation systems,substrate carrier etc.

2. Benefits: easy to operate, compact foot print,
low cost of owner ship, fast substrate exchange.

3. Coating Types: metal & alloy coatings, like:
TiN, ZrN, CrN etc.

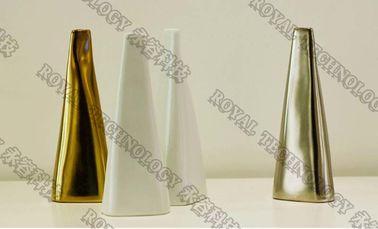

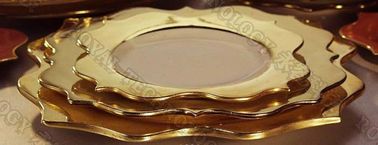

4. Coating Colors: gold, silver colors etc.

5. Substrates: metal, stainless steel, glass, ceramic,
brass & copper etc.

6. Coatings Advantages: high shiny and bright
colors, strong adhesion & excellent scratch protection.

Bathroom Ceramic Sanitary PVD Plating Machine Technical Advantages

1. Strong background of R&D support, focus on
details of manufacturing.

4. Powerful pump package for short cycle time
and high productivity.

2. Robust rotational system design for high uptime.

5. Unique design is friendly operation and low

3. Exclusive arc sources to guaranty high coatings
quality, none color difference.

6. Turnkey coating solutions.

The Bathroom Ceramic Sanitary PVD Plating Machine features
1. Vacuum chamber is vertical one open door , 304 stainless steel manufactures, vacuum chamber internal diameter from φ1400mm-Φ2000mm;
2. Vacuum system by Rotary vane pump, Roots pump and Oil Diffusion Pumps or Molecular Pump Constitution;
3. Coating system uses 1-2 intermediate frequency magnetism to control the sputtering power source, has 1-2 pair of non-balanced magnetism to control the target, and has 14-40 arc sources.
4. High efficiency pulse bias power source;
5. The gasification system uses domestically produced or the import gaseous mass flowmeter, the gas flow amount control (demonstration) meter;
6. The electrically controlled system establishment electric circuit overloaded, cuts off the water supply, dies the acousto-optics alarm device;
7. Control system (touch-screen +PLC), real time display detailed parameter, completely automatic control entire production process, and automatic memory technological parameter.

RTAC-1008 RTAC-1012 RTAC-1213 RTAC-1416 RTAC-1618
Chamber Inner size 1000x800mm 1000x1200mm 1250x1350mm 1400x1600mm 1600x1600mm
Power supply type Arc power supply, filament power supply, pulse bias power supply
Structure of vacuum chamber Vertical front door structure, rear air exhaust system and double-layer water cooling chamber
Material of vacuum chamber stainless steel 304/316L
Ultimate vacuum 6.0x10-4Pa (unloading, clean, drying chamber)
Vacuum Pumping Speed from atmosphere to 8.0*10-3Pa ≤15 minutes
Vacuum pumping system Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump
(the specific model can be selected according to customer requirements)
Arc source 6 units or
8 units
8 units or
10 units
10 units or
12 units
14 units or
16 units
16 units or
18 units
Bias power supply 20KW/set 20KW/set 30KW/set 40KW/set 50KW/set
Driving Model Planetary revolution and rotation, variable frequency speed regulation
(controllable and adjustable)
Heating System Controllable and adjustable from room temperature to 450°C
(PID temperature control)
MFC 3-path or 4-path process gas flow control and display system, selective automatic gassing system
Cooling System Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers)
Control mode Manual/automatic integration mode, touch screen operation, PLC or computer control
Total power 30KW 35KW 45KW 60KW 75KW
Alarm and protection Alarm water shortage, over current and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function
Equipment area W2.5m*L3.5m W3m*L4m W4m*L5m W4.5m*L6m W5m*L7m
Other technical parameters Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa
Remarks The specific configuration of coating equipment can be designed according to process requirements of coating products

Other customized machine sizes are vailable based on specified product dimensions and capacity demand.
