Ceramic tablware Coating Equipment , PVD Ion Plating Machine
1 set
MOQ
negotiable
Price
Ceramic tablware Coating Equipment , PVD Ion Plating Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
High Light:

ion plating system

,

vacuum plating equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Specifications
Colors: TiN Gold,Rose Gold, Copper, Blue, Light Gold, Black Etc.
PVD Coating Technoogy: Cathodic Arc Plating + MF Magnetron Sputtering
Name: Ceramic/ Glass, Crystal Coating Equipment
Application: Ceramic Sanitary, Ceramic Flatwares, Tablewares,
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description











Royal Technology provides  Ceramic PVD Coating Equipment on various of ceramic products:

ceramic sanitary, ceramic flatwares, tablewares,  kitchewares, ceramic vase etc.

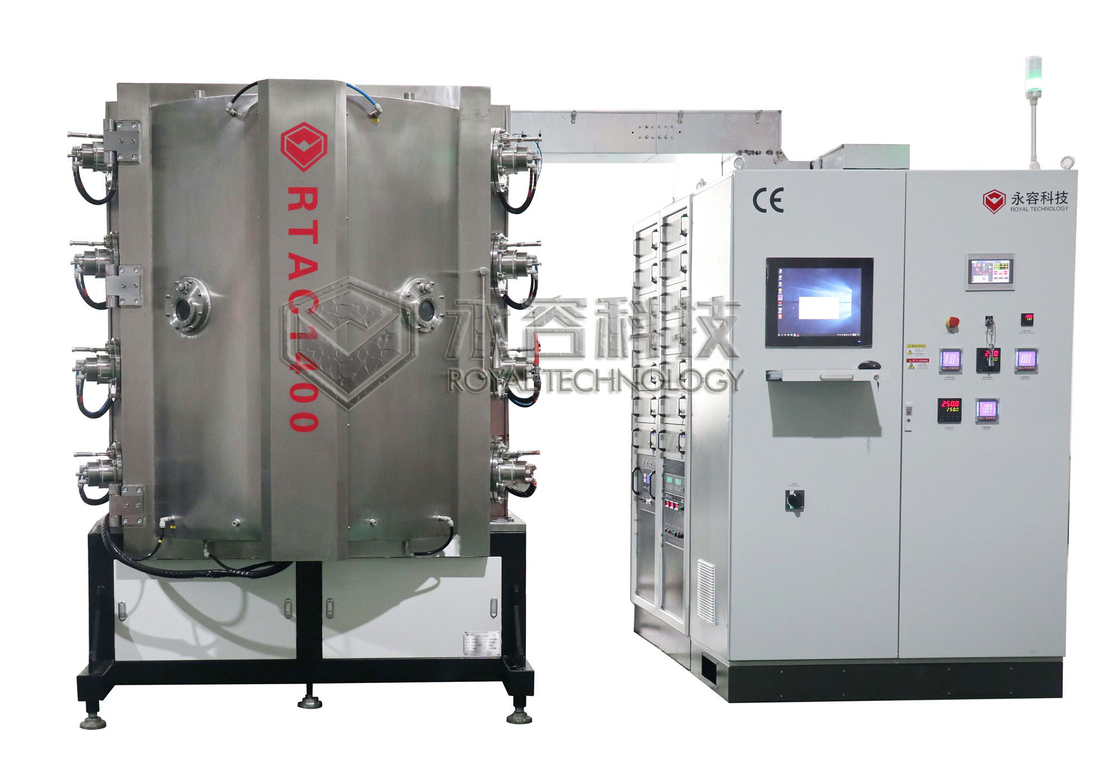

RTAC-SPMF sesries machines deposition sources are: steered arc cathodes; MF sputtering cathodes with balanced/unblanced magnetic closed filed; Ion source device as an important device to generate plasma filed which highly enchance the film adhesion. We have developed exclusively Ion source unit or use Gencoa company's product.





With the Ceramic Flatware PVD Coating Equipment:

1. It can deposit a veriety of pure metal films and alloy films. If the vacuum chamber through a veriety of reactive gases, and can coating various compounds film. It has been applied not only on the lighter but to the construction and daily necessities decoration plating (imitation gold plated, plating a veriety of colors,....), mechanical tool coatings, anti-corrosion coatings in nuclear industry, solid lubricating coatings in the aerospace industry as well as other coatings of various funcational coatings.

2. Advantage: High deposition rate, High ionization rate, Easy operation, High productivity and Low cost. No waste gases and water.Magnetron sputtering stably at low temperature.

3. Operation Modes:

(1) Semi-automatic/Automat

(2) Automatic bombardment

(3) Accurate control of various process time

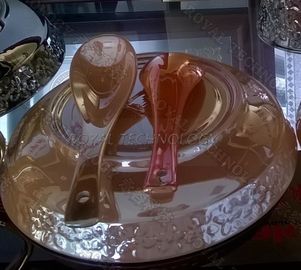

4. Coating colors: Gold, Rose gold, Black gold, Coffee, Silver, Champagne gold, Multicolor, etc.

5. Coating films: titanium nitride film, titanium carbide film, zirconium nitride film, titanium aluminum film,

chromium nitride, and other superhard functional metal film ( the workpiece coated by ion coating machine can improved hardness, wear resistance, anti-corrosion and more beautiful.)

6. Coating Film properties: Strong adhesion , good compactness, well repeatability and consistence of color

High efficiency deposition,high bright coating.



Ceramic Flatware PVD Coating Equipment Models



Model Size(mm) Number of Planetary Rods Cathodic Arc Sources Sputtering Cathodes Ion Source Bias Power Supply (kVA)
RTAC950-SP 950xH1350 2-doors 3 8 4 Planar Linear Anode 1*36
RTAC1213-SP 1250xH1350 2-doors 48 8 4 Planar Linear Anode 1*30, AE
RTAC1250-SP 1250xH1250 6,8,12,16 8 4~8 Cylinder depends on coating process and product 1*36
RTAC1008-SP 1000xH800 3 6 2 Cylinder 1*24
RTAC1616-SP 1600xH1600 6*6 9 2 Cylinder or Planar 1*48
RTAC1618-SP 1600x1800 6,8,10 18 4 Cylinder 1*48

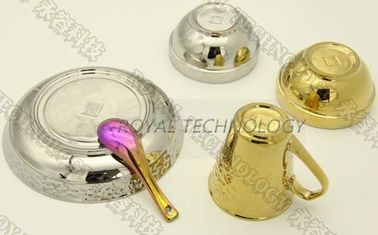

 With our RTAC-SPMF sesries machines, we assisted our customers developed various PVD coatings, the standard colors range are like below:






Ceramic tablware Coating Equipment , PVD Ion Plating Machine 0





Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
