Nano Thin Film PVD Deposition Equipment, PVD Thin Film Coating Machine on Fasteners And Fittings

1 set
Nano Thin Film PVD Deposition Equipment, PVD Thin Film Coating Machine on Fasteners And Fittings
Features Gallery Product Description Request A Quote
Deposition Sources: Steered Cathodic Arc + MF Sputtering Cathode
Technique: PVD, Balanced/Unbalanced Magentron Sputtering Cathode
Applications: Steel Precision Fasteners, Screws, Camera Metals
Film Features: Wear Resistance, Strong Adhesion, Decorative Coating Colors
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

thin film coating equipment


dlc coating equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC1250-SPMF
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Product Description

Fasteners and fittings PVD Thin Film  Plating Machine / Nano Thin Film PVD Decoration Finishes
How Does PVD Coating Work?
The solid metal is vaporized or ionized in a high vacuum environment and deposited on electrically conductive materials as a pure metal or metal alloy films. When a reactive gas, such as nitrogen, oxygen or a hydrocarbon-based gas is introduced to the metallic vapor, it creates nitride, oxide, or carbide coatings as the metallic vapor stream, chemically reacts with the gasses. PVD coating must be done in a specialized reaction chamber so that the vaporized material doesn’t react with any contaminants that would otherwise be present in the room.
During the process of PVD coating, the process parameters are closely monitored and controlled so that the resulting film hardness, adhesion, chemical resistance, film structure, and other properties are repeatable for each run. Various PVD coating are used to increase wear resistance, reduce friction, improve appearance, and achieve other performance enhancements.
In order to deposit high purity materials such as titanium, chromium, or zirconium, silver, gold, aluminum, copper, stainless steel, the physical process of PVD coating utilizes one of several different PVD coating methods, including:
Arc evaporation
Thermal evaporation
DC/MF sputtering(the bombardment of ions)
Ion Beam Deposition
Ion plating
Enhanced sputtering
Each of these methods belong in the overarching category of “physical vapor deposition”.
PVD Thin Film Properties

  • Exceptional aesthetic finish
  • Uniform coating thickness
  • Superior resistance to wear and corrosion
  • PVD coating has a high level of hardness

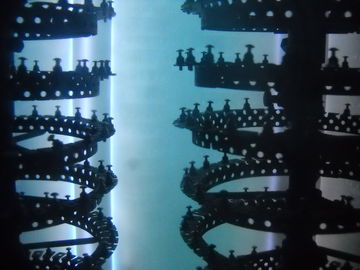

Precision Fasteners PVD Thin Film Plating Machine is applied with fasteners and fittings like screws, bolts, crushes, fittings, caps used in cosmetics, electronic products, mechanical machines, automotive industries are widely using the PVD technology to get variety of Panton colors, range of gold, black, blue, grey, silver, rainbow, bronze, champage etc.

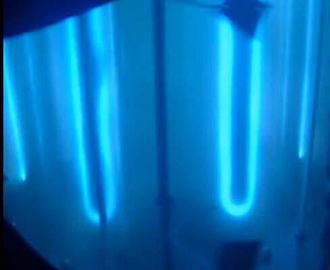

Precision Fasteners PVD Thin Film Plating Machine Deposition Sources
Steered Circular Arc sources for evaporation of solid metal target;
2 pairs of MF unblanced sputtering cathodes for graphite thin film layer deposition;
Bias Power Supply for ion bomboardment to form the plasma area for pre-treatment;
Anode Linear Ion Source Unit ( for optional) PACVD and PECVD processing;
Cryopump ( Polycold) for water molecular condensation ( for optional)

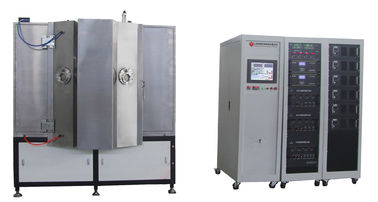

Precision Fasteners PVD Thin Film Plating Machine Structures
1. Vacuum Chamber
2. Rouhging Vacuum Pumping System (Backing Pump Package)
3. High Vacuum Pumping System ( Magnetically Suspension Molecular Pump)
4. Electrical Control and Operation System
5. Auxiliarry Facility System (Sub System)
6. Deposition System: MF sputtering cathode, MF power supply, Bias Power Supply Ion source for optional
Precision Fasteners PVD Thin Film Plating Machin Performance
1. Ultimate Vacuum Pressure: better than 5.0×10-6 Torr.
2. Operating Vacuum Pressure: 1.0×10-4 Torr.
3. Pumpingdown Time: from 1 atm to 1.0×10-4 Torr≤ 3 minutes ( room temperature, dry, clean and empty chamber)
4. Metalizing material (sputtering + Arc evaporation): Ni, Cu, Ag, Au, Ti, Zr, Cr, TiN, TiC, TiAlN, CrN, CrC, etc.
5. Operating Model: Full Automatically /Semi-Auto/ Manually
Precision Fasteners PVD Thin Film Plating Machin Specifications

TECHNOLOGY MF Magnetron Sputtering + Ion Plating
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1250 * H1250mm
CHAMBER TYPE Cylinder, vertical, 1-door
SPUTTERING SYSTEM Exclusively design for thin black film deposition
DEPOSITION MATERIAL Aluminum, Silver, Copper, Chrome, Stainless Steel,
DEPOSITION SOURCE 2 sets MF Cylindrical Sputtering Targets + 8 Steered Cathodic Arc Sources + Ion Source For optional
GAS MFC- 4 ways, Ar, N2, O2, C2H2
CONTROL PLC(Programmable Logic Controller) +
PUMP SYSTEM SV300B - 1 set (Leybold)
WAU1001 - 1 sets (Leybold)
D60T- 1 set (Leybold)
Turbo Molecular Pumps: 2* F-400/3500
PRE-TREATMENT Bias power supply: 1*36 KW
SAFETY SYSTEM Numerous safety interlocks to protect operators
COOLING Cold Water
POWER ELECTRICAL 480V/3 phases/60HZ ( USA compliant)
460V/3 phases/50HZ ( Asia compliant)
380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT L3000*W3000*H2000mm
FOOTPRINT ( L*W*H) 5000*4000 *4000 MM
CYCLE TIME 30~40 minutes (depending on substrate material,
substrate geometry and environmental conditions)
75 KW

 Nano Thin Film PVD Deposition Equipment, PVD Thin Film Coating Machine on Fasteners And Fittings 0

Customized machine sizes are also available based on specified demanded products.
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
