Glass Ware PVD Decorative Coatings- RTAE1600

Glass Ware PVD Decorative Coatings- RTAE1600
Features Gallery Product Description Request A Quote
Colors: Rose Gold, Copper, Blue, TiN Gold, Light Gold, Black Etc.
PVD Coating Technoogy: Cathodic Arc Plating + MF Magnetron Sputtering
Coatings: PVD Decoration
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

RTAE1600 Glass Coating Machine


Glass Thin Film Coating Machine


Glass Ware PVD Decorative Coatings

Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: ROYAL
Certification: CE
Model Number: RTAE1600
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 2 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10,0000 pieces per month
Product Description

The RTAE1600 machine is designed and produced for glass decorative coatings film , it contains both tungsten wire evaporation and arc evaporation sources.

  1. Thermal evaporation sources isfor the none-transparent silver and gold colors by Copper and Aluminum deposition to get high reflection surface finishing.
  2. The arc evaporation sources to generate more colors like amber, blue, rainbow color, black, charcoal grey, none-transparent gold and half-transparent gold colors etc.

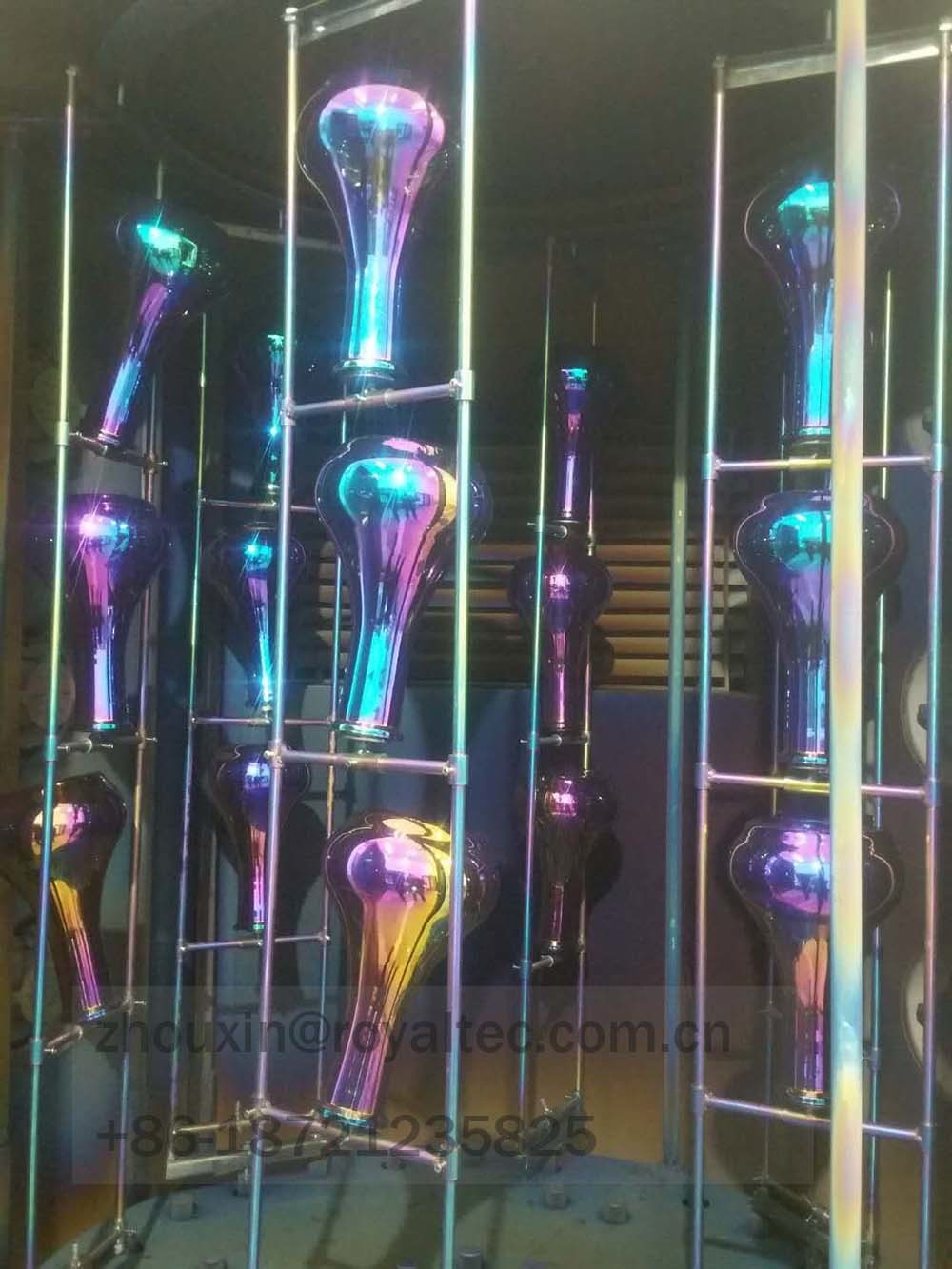

Mainly used for glass ware decorative coatings, like glass mirror, glass necklace, crystal LED lighting, glass mosaic floor tiles, crystal drink ware etc.

The main configuration is cathodic arc evaporation sources, with Ion source unit and bias power for arc discharging to enhance the film adhesion efficiently.


  • Glass Candle Holder PVD Ion Plating Machine
  • Glass Beads PVD Plating Machine / Glass Beads Decorative PVD Coating Equipment
  • Glass Lighting PVD Plating Machine , Crystal Chandelier Arc Plating Equipment
  • Glass Balls PVD Vacuum Coating Machine
  • Glass, crystal and ceramic Vacuum Coating Machine / Glass Jewelry Arc Ion Vacuum Plating Equipment
  • Glass Cups PVD Plating Machine / Crystal Cups Vacuum Coating Equipment / Gold Color by Ion Plating on Crystal, Glass
  • Glass Bracelet Horizontal PVD Vacuum Coating Machine, Glass Bangle Vacuum Metallizing Equipment
  • Watch glass;
  • Ceramic washing basins, Ceramic Sanitary ware, ceramic pots, plates ;
  • Ceramic crafts, ceramic valves

Glass Ware PVD Decorative Coatings- RTAE1600 0Glass Ware PVD Decorative Coatings- RTAE1600 1

Glass Ware PVD Decorative Coatings- RTAE1600 2

Glass Ware PVD Decorative Coatings- RTAE1600 3Glass Ware PVD Decorative Coatings- RTAE1600 4

Glass Ware PVD Decorative Coatings- RTAE1600 5Glass Ware PVD Decorative Coatings- RTAE1600 6

Glass Ware PVD Decorative Coatings- RTAE1600 7

RTAE1600 glass ware PVD ion plating machine advantages

  • Exclusively vacuum pumping system design concept has low power consumption, which reduce 30% ~ 50% production cost per hour.
  • Patented Cathodic Arc Power Supply developed for minimize this disadvantage : macro-particles (droplets)formation.
  • Planar Ion source with high energy for ion bombardment;( for option)
  • The Cathodic arc power supply has DC and Pulsed models, stable arc current; accurate current control with low overshoot.
  • Cathodic Arc source exclusively designed and produced for maximize the targets utilization ( up to 70% for a some targets)
  • Resistance thermal evaporation and arc evaporation sources installed in the chamber to satisfy various glass ware coatings

Glass Ware PVD Decorative Coatings- RTAE1600 8Glass Ware PVD Decorative Coatings- RTAE1600 9


General Information

  1. Arc ( Ion Plating ) series equipment consists of: vacuum chamber, vacuum pumps, arc sources, spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems, substrate carrier etc.
  1. Benefits: easy to operate, compact foot print, low cost of owner ship, fast substrate exchange.
  2. Coating Types: metal & alloy coatings, multi layers coatings.
  3. Coating Colors: gold, black, brown, grey, Chrome colors etc
  4. Substrates: stainless sheets and tubes, metal alloys, glass, ceramic materials
  5. Coatings Advantages: high shiny and bright colors, strong adhesion & excellent scratch protection.

Technical Specifications

MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1600*1600mm (H)
CHAMBER TYPE Cylinder, vertical, front opening door
SINGLE PUMP PACKAGE Rotary Piston Vacuum Pump
Roots Vacuum Pump
Roots Pump
TECHNOLOGY Cathodic Arc Evaporation + resistance thermal evaporation
POWER SUPPLY Arc sources power supply + Bias Power supply
DEPOSITION SOURCE 14 Cathodic Arc Sources + 14 groups tungsten wire evaporation source
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters of 4 sets for Ar, N2, O2, C2H2
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Recycle Cooling Water
CLEANING Bias Power or Linear Ion source



55 KW



Glass Ware PVD Decorative Coatings- RTAE1600 10


Turnkey coating solutions are available, please contact Royal Tech. team today.
