PVD Hard Chrome Vacuum Metalizing Machine, Chrome Plating Mirror Finish, Black Chrome PVD Plating

1
MOQ
negotiable
Price
PVD Hard Chrome  Vacuum Metalizing Machine,  Chrome Plating Mirror Finish, Black Chrome PVD Plating
Features Gallery Product Description Request A Quote
Features
Specifications
Model: Vertical, 2-door Structure
Application: Plastic Flatware Silver Coating, Plastic Spoons, Plastic Forks, Plastic Knife, Plastic Cutlery Silver Coating
Coating Film: Aluminum,stainless Steel SUS316L
Name: Vacuum Metalizing Machine
Features: Fast Vacuum Evacuation System
Other Applications: Decoration Coatings
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Highlight:

magnetron sputtering machine

,

vacuum deposition equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: ROYAL
Certification: CE, UL, ISO
Model Number: RTEP-SP
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 weeks
Supply Ability: 20 sets per month
Product Description

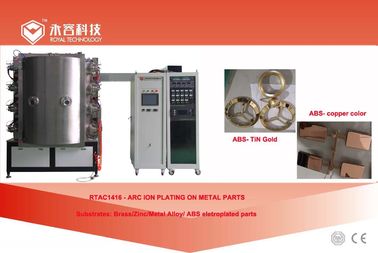

  Chrome Plating Kit Mirror Finish Vacuum Metalizing Machine on plastic mold





Chrome Plating Kit Mirror Finish Vacuum Metalizing Machine on plastic mold contains the DC magnetron sputtering cathode and  tungsten filament evaporation sourcesto deposit the metal films, mostly like Aluminum or Stainless steel 316 L, which are healthy for human body.   Plus the anode layer ion source unit which is  used to generate plasma, to remove the contamination and water moleculare which gassing out during high vacuum environment , can highly improve the film adhesion.





Chrome Plating Kit Mirror Finish Vacuum Metalizing Machine on plastic mold design features:

  • 2-door structure machine for an independent loading operations, higher output
  • Robust structure design and high quality configurations
  • PLC + Touch Screen Operation System, fully automatically /Manually control
  • Fast Vacuum Evacuation System
  • Exclusively designed rotating Carousel structure for easy loading/uploading
  • Easy access to the working environment for maintenance



Chrome Plating Kit Mirror Finish Vacuum Metalizing Machine on plastic mold vacuum metallizing equipment films properties:



Finishes are deposited within high vacuum environment, 100% environmentally friendly.
Highly reflective, brilliant and bright colors;
High volume production, low cost, ideal solution for mass production demand.



Other applications:



Decoration coatings: Plastic cutlery, Ceramic, Electronics product, Cellphone housing, NCVM applications, Decorative items, Metallic finish.
Coating Function:Protective coating, functional coating.
Film: Copper conductive film, Metal film, semi-transparent film, Mobile phone EMI, NCVM, Dielectric film.
Substrates:plastic parts, construction material, atrs&craft, electronics products etc





Other standardized models:



Model Size(mm) Substrate Jigs (Qty.) Evaporation Power(kVA Cathode (KW) Cycle Time

Electrical

Power

RTEP1212-SP 1200xH1200 6,8 20 DC30 10'~40' depends on Product 3Phase/AC380V,50HZ
RTEP1214-SP 1200xH1400 6, 8,16 20 AC36
RTEP1414-SP 1400xH1400 6,16 35 DC30
RTEP1416-SP 1400xH1600 8.16 35 DC35
RTEP1616-SP 1600xH1600 8.16 35 DC50
RTEP1618-SP 1600xH1800 8.16 35 DC50

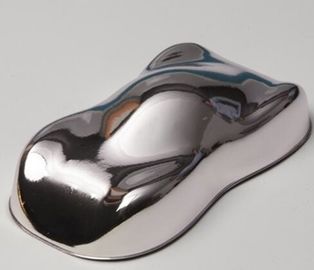

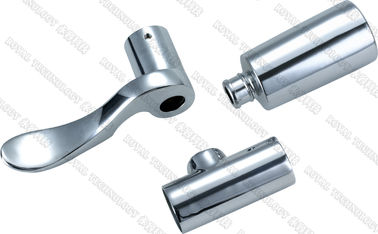

Coating samples:



PVD Hard Chrome  Vacuum Metalizing Machine,  Chrome Plating Mirror Finish, Black Chrome PVD Plating 0

PVD Hard Chrome  Vacuum Metalizing Machine,  Chrome Plating Mirror Finish, Black Chrome PVD Plating 1



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
