Helmet Sputtering Optical Film Coating Machine, Anti-UV Coating on Helmet, Magnetron Sputtering Coating Plant on helmet
1
MOQ
negotiable
Price
Helmet Sputtering Optical Film Coating Machine, Anti-UV Coating on Helmet, Magnetron Sputtering Coating Plant on helmet
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ROYAL
Certification: CE
Model Number: RTEP-SP
High Light:

magnetron sputtering equipment

,

vacuum deposition equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 weeks
Supply Ability: 20 sets per month
Specifications
Coating Film: Aluminum,stainless Steel SUS316L
Name: Vacuum Metalizing Machine
Features: Fast Vacuum Evacuation System
Other Applications: Decoration Coatings
Product Description

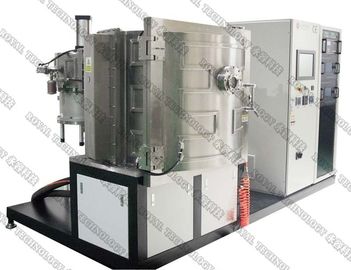

PVD Vacuum Metallizer Machine Thermoforming for helmet





Pvd   Vacuum Metallizer Machine Thermoforming for helmet contains the DC magnetron sputtering cathode and  tungsten filament evaporation sourcesto deposit the metal films, mostly like Aluminum or Stainless steel 316 L, which are healthy for human body.   Plus the anode layer ion source unit which is  used to generate plasma, to remove the contamination and water moleculare which gassing out during high vacuum environment , can highly improve the film adhesion.





Pvd  Vacuum Metallizer Machine Thermoforming for helmet design features:

  • 2-door structure machine for an independent loading operations, higher output
  • Robust structure design and high quality configurations
  • PLC + Touch Screen Operation System, fully automatically /Manually control
  • Fast Vacuum Evacuation System
  • Exclusively designed rotating Carousel structure for easy loading/uploading
  • Easy access to the working environment for maintenance



Pvd   Vacuum Metallizer Machine Thermoforming for helmet properties:



Finishes are deposited within high vacuum environment, 100% environmentally friendly.
Highly reflective, brilliant and bright colors;
High volume production, low cost, ideal solution for mass production demand.



Other applications:



Decoration coatings: Plastic cutlery, Ceramic, Electronics product, Cellphone housing, NCVM applications, Decorative items, Metallic finish.
Coating Function:Protective coating, functional coating.
Film: Copper conductive film, Metal film, semi-transparent film, Mobile phone EMI, NCVM, Dielectric film.
Substrates:plastic parts, construction material, atrs&craft, electronics products etc





Other standardized models:



Model Size(mm) Substrate Jigs (Qty.) Evaporation Power(kVA Cathode (KW) Cycle Time

Electrical

Power

RTEP1212-SP 1200xH1200 6,8 20 DC30 10'~40' depends on Product 3Phase/AC380V,50HZ
RTEP1214-SP 1200xH1400 6, 8,16 20 AC36
RTEP1414-SP 1400xH1400 6,16 35 DC30
RTEP1416-SP 1400xH1600 8.16 35 DC35
RTEP1616-SP 1600xH1600 8.16 35 DC50
RTEP1618-SP 1600xH1800 8.16 35 DC50

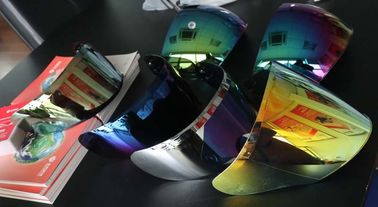

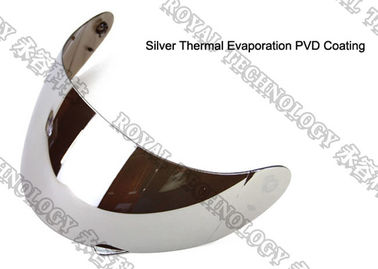

samples:

Helmet Sputtering Optical Film Coating Machine, Anti-UV Coating on Helmet, Magnetron Sputtering Coating Plant on helmet 0

Helmet Sputtering Optical Film Coating Machine, Anti-UV Coating on Helmet, Magnetron Sputtering Coating Plant on helmet 1



Why us?

  1. Advanced production machineries (milling, welding,cutting,vacuum leak testing)combined with standardized production procedures and strict tests enable Royal Technology to produce high quality, reliable and low cost coating systems.

  2. Quality, service and on-time delivery are the core principles of Royal technology’s business. A strategy of openly outsourcing simple components to professional manufactures allows us to focus attention to key parts and components R&D, manufacturing.

Strict quality control policies and rigorous selection of qualified suppliers assure Royal Technology’s customers receive the most advanced, high-end quality equipment at the most affordable cost



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
