Metal Wire & Glass Lamp PVD Plating-RTAC1800A+
1 set
MOQ
negotiable
Price
Metal Wire & Glass Lamp PVD Plating-RTAC1800A+
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: ROYAL
Certification: CE
Model Number: RTAC1800A+
High Light:

silver plating machine

,

vacuum plating equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Specifications
PVD Coating Technoogy: Cathodic Arc Plating, Linear Ion Source Plasma Assistance Deposition
Application: Glass Lamps, Metal Wire Lamps, SS Kitchen Wares, Bathroom Fittings

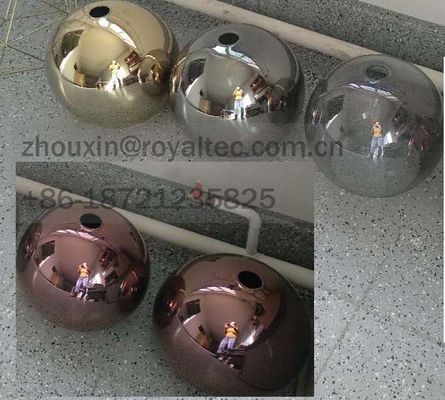

Coatings: See-through Silver And Gold Colors, Copper Color, Grey Color
Product Description

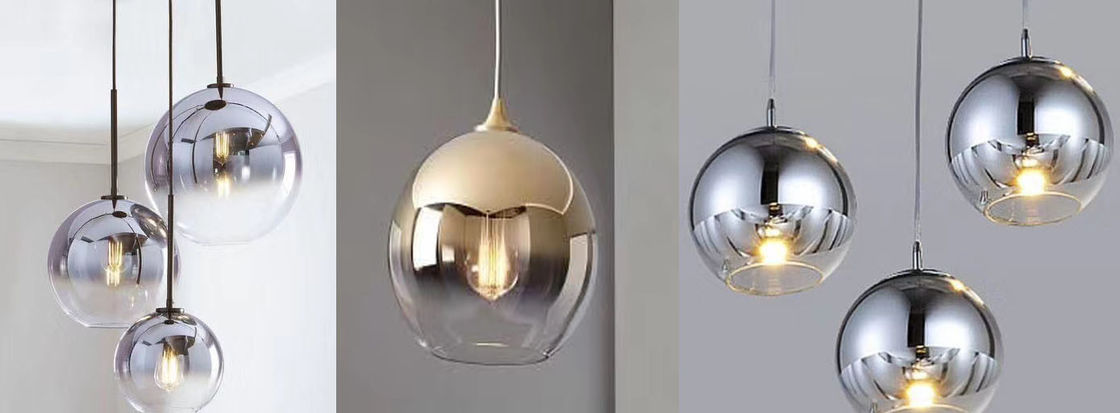

Glass Lamp and Metal Wire Lamp PVD Coating Machine

RTAC1818+ is upgraded model of conventional RTAC1818. The first two machines were designed and fabricated for glass lamps and metal wire lamps PVD decorative coatings.

Gradually, this model is used for bigger size items like kitchen stainless steel washing basins, ceramic basins etc.





Metal Wire & Glass Lamp PVD Plating-RTAC1800A+ 0


Capacity

Metal Wire & Glass Lamp PVD Plating-RTAC1800A+ 1


Code Dimensions(mm) Rack Model Planetary Rods (Qty.) Loading layers Loading Qty.
1 φ250*H227±2mm Rack 1 12 *φ300 6 72
2 φ300*H260±2mm Rack 1 12 *φ300 5 60
3 φ200*H180±2mm Rack 2 18*φ200 6 108
4 φ180*H163±2mm Rack 2 18*φ200 7 126
5 φ140*H125±2mm Rack 3 24* φ140 8 192

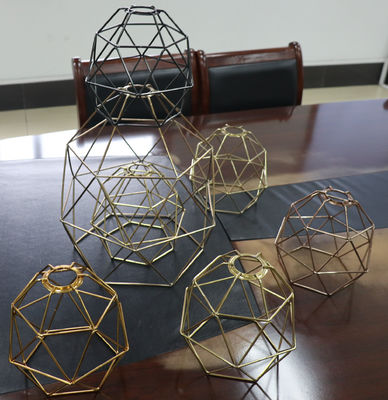

Metal Wire Lamps Capacity: 40~80 pieces, depends on lamp size and uploading method.





Highlights of RTAC1818+

  • Installation online instruction

  • Machine Operation & Coating process training: online remote.

  • Ready for power/water/gas connection

  • Plug-in integrated design

  • Industrial PC + Siemens PLC + SCADA ( Supervisory Control And Data) upgrade software program

RTAC1818 conventional and upgrade configurations
Metal Wire & Glass Lamp PVD Plating-RTAC1800A+ 2
Metal Wire & Glass Lamp PVD Plating-RTAC1800A+ 3



Technical Specifications

General Information

  1. The multi arc vacuum coating system mainly for decorative coatings.
  2. Benefits: eco-environment, easy to operate, compact foot print, low cost of owner ship, fast substrate exchange.
  3. Coating Colors: gold, black, brown, grey, Chrome colors etc.
    Gold Colors: TiN, ZrN, TiN+Au, ZrN+Au
    Rose Gold Colors: TiCN, TiAlN, TiCN+Au-Cu, TiAlN+Au, Cu
    Chrome colors: CrN, Ti, Cr
    Gray Colors: stainless steel, stainless steel (N)
    Brown Colors TiCN, TiAlCN, ZrC
    Blue Color: TiO, CrO, TiALN
    Black Colors: TiC, TiC+iC, TiCN, TiAlN, TiAlCN
  4. Substrates: stainless sheets and tubes, metal alloys, glass, ceramic materials
  5. Coatings Advantages: high shiny and bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.

Features
This series equipment consists of: vacuum chamber, vacuum pumps, arc sources,
spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems etc. High lights of the design futures:
1. Flexibility: Arcs are standardized for flexible and quick exchange;
2. Versatility: can deposit variety of base metals and alloys; optical coatings, hard coatings, soft coatings, compound films and solid lubricating films on the metallic and non-metallic materials substrates. 3. Powerful pump set for short cycle time and high productivity.
4. Multiple deposition sources for different substrates materials.
5. Royal exclusive arc sources to guaranty high coatings quality, none color difference.
6. Turnkey coating solutions.

Performance

1 .Ultimate Vacuum Pressure: better than 8.0×10-4 Pa
2. Operating Vacuum Pressure: 1.0×10-2 Pa.
3 .Pumping down Time: from 1 atm to 8.0×10-3Pa≤15minutes ( @room temperature, clean and unloading)
4. Leaking Rate: 9.0-5 Pa m³/ sec. Or better than 0.67Pa in 1 hour after shut down the machine from ultimate pressure.
5. Deposition Materials: Stainless steel, Cr, Ti, TiAl, Zr … etc.
6. Deposition Sources: Arc cathodes
7. Operating Model: Full Automatically /Semi-Auto/ Manually
8. .Safety Circuitry and Interlocks: numerous safety interlocks to protect operators and equipment ( water, current etc.) I: Heating: up to 250℃,

Description RTAC1818+
Standard Applications Metal wire lamps, glass lamps, kitchen SS basins

Deposition Chamber

(mm)

φ1800 * H1800

Maximum Loading

(kg)

1000
Planetary Driving Effective Coating Area 10*φ330mm or 12*φ300mm or 18*φ200mm or 24*φ140mm for options
Effective height: 1400mm

Pulsed Bias Power

(KW)

48
Circular Arc Cathode (sets) 18
High Vacuum Pumps

2* Diffusion Pumps or

4* Turbo Molecular Pumps

Backing Pumps 1*SV630BF+1*WAU2001+1*TRP90
Operation & Control IPC + Siemens PLC + SCADA software
Max. Power Consumption (Approx.) 170KW
Average Power Consumption(Approx.) 80KW

Layout

Metal Wire & Glass Lamp PVD Plating-RTAC1800A+ 4
Metal Wire & Glass Lamp PVD Plating-RTAC1800A+ 5
Metal Wire & Glass Lamp PVD Plating-RTAC1800A+ 6




Insite




Model: RTAC1818

Location: Poland

Time: 2019


Metal Wire & Glass Lamp PVD Plating-RTAC1800A+ 7
Metal Wire & Glass Lamp PVD Plating-RTAC1800A+ 8
Metal Wire & Glass Lamp PVD Plating-RTAC1800A+ 9

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
