| Brand Name: | ROYAL |
| Model Number: | RT1600-EMI |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 10 sets per month |

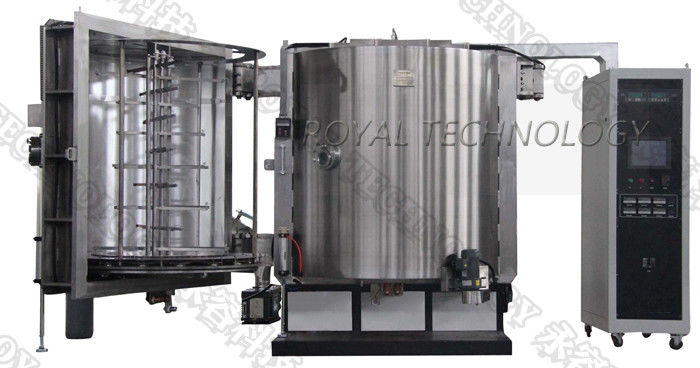

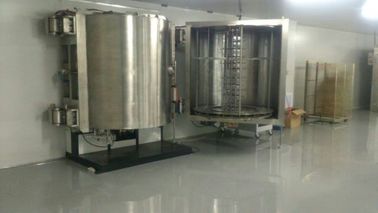

EMI Shielding Thin Film Vacuum Metallizing Equipment, Vertical Orientation EMI PVD Coating Machine, Copper Evaporation
EMI: Electro-magnetic Interference coating is specially designed for electrical and electronic devices to avoid from interference of electromagnetic.
Its high conductivity and high magnetc interference shielding properties are widely used in telecommunication devices, computers, consumer electronics, home appliance, aerospace and military devices
EMI shileding surface treatment has been applied with cell phone industry for years. Our customers are:
Sumgsung, Iphone, Lenovo, Huawei phones manufactures.
Electro Magnetic Interference Shielding Metalizer Features
5) Excellent adhesion
Electro Magnetic Interference Shielding Metalizer Specifications:
| MODEL | RTEP1616-SP | ||||||
| TECHNOLOGY |
THERMAL EVAPORATION, TUNGSTEN ,FILAMENT, glow discharge, magnetron sputtering |
||||||
| MATERIAL | Stainless Steel (S304) | ||||||
| CHAMBER SIZE | Φ1600*1600mm (H) | ||||||
| CHAMBER TYPE | Cylinder, horizontal, 1-door | ||||||
| EVAPORTATION SYSTEM | EXCLUSIVE DESIGN FOR EMI coating | ||||||
| DEPOSITION MATERIAL | Silver, Copper, Stainless Steel, Nickel | ||||||
| DEPOSITION SOURCE | TUNGSTEN FILAMENT + magnetron sputtering | ||||||
| CONTROL | PLC(Programmable Logic Controller) + Touch Screen | ||||||
| PUMP SYSTEM | Rotary Piston Vacuum Pump | ||||||
| Rotary Vane Vacuum Pump | |||||||
| Roots Vacuum Pump | |||||||
| Difussion Pump + Brooks Polycold | |||||||
| PRE-TREATMENT | Plasma Cleaning | ||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment | ||||||
| COOLING | Cold Water | ||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
| 460V/3 phases/50HZ ( Asia compliant) | |||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | |||||||
| FOOTPRINT | L9000*W4200*H3000mm | ||||||
| TOTAL WEIGHT | 10.0 T | ||||||
| CYCLE TIME | 15 minutes (depending on substrate material, substrate geometry and environmental conditions) | ||||||
| POWER MAX.. | 90KW | ||||||
| AVERAGE POWER CONSUMPTION (APPROX.) | 45KW |
EMI Shielding Film Coating Properties
Film thickness : 1.5 ~ 3 microns depends on the requirement.
Film resistance: (ohm) better than 0.5Ω
Adhesion: 3M810 tape > 5B
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
