Glassware Gold Plating Machine 2-Sides Gold Color Reflection, Strong Adhesion TiN Gold Coating

1 set
Glassware Gold Plating Machine 2-Sides Gold Color Reflection, Strong Adhesion TiN Gold Coating
Features Gallery Product Description Request A Quote
Target Material: Ti, Cr, Zr, SS, Al, Cu, TiAl, Fe Alloy
Work Pieces: Glass Cups, Wine Cups, Glass Vase, Glass Dishes
Coating Colors: Gold, Copper, Black, Grey, Rose Gold, Rainbow, Chrome
Feature: Double-sides Gold Color Coating, Inside Gold And Outside Gold Plating
Technology: PVD Ion Plating
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

Glassware Gold Plating Machine


TiN Gold Coating PVD Plating Machine


Glass Cups PVD Plating Machine

Basic Infomation
Place of Origin: China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC1600
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Product Description

                 2-Sides Gold Color Coating Machine, Glass Inside & Outside Gold Colors Coating

PVD ion plating gold color on glassware is well known and used in the market, however, to improve the adhesion of coated film, the bonding layer is always applied before TiN/ZrN gold coating, which has an issue that from inside seeing through, it reflects the metal layer color:  silver or dark silver.
If we use the Spraying paining + Aluminum metallization process do can generate a double-sides gold color result, but the adhesion is weak and more complicated process, it makes the labor cost and production cost is increased.
In Nov. 2020, we received the request from middle east customer:  double-sides looks gold and not use the spraying painting process.
After several cycles experiments, we found the proper coating process with strong adhesion.
 Glassware Gold Plating Machine 2-Sides Gold Color Reflection, Strong Adhesion TiN Gold Coating 0  Glassware Gold Plating Machine 2-Sides Gold Color Reflection, Strong Adhesion TiN Gold Coating 1

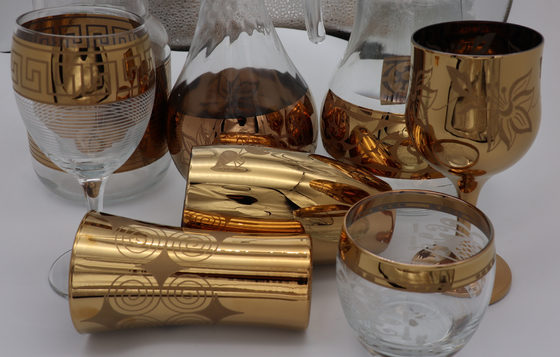

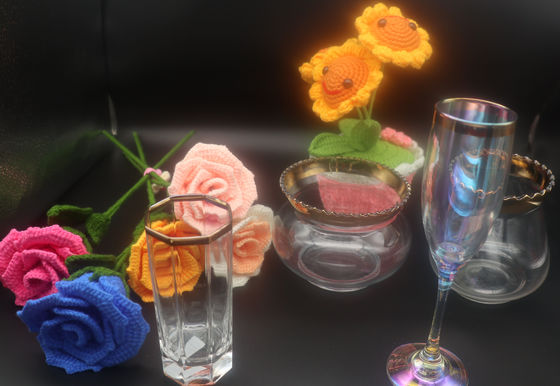

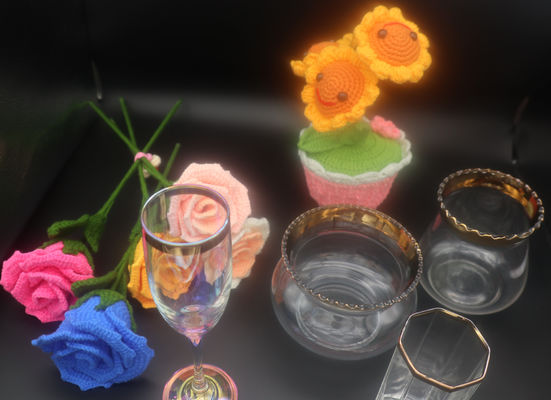

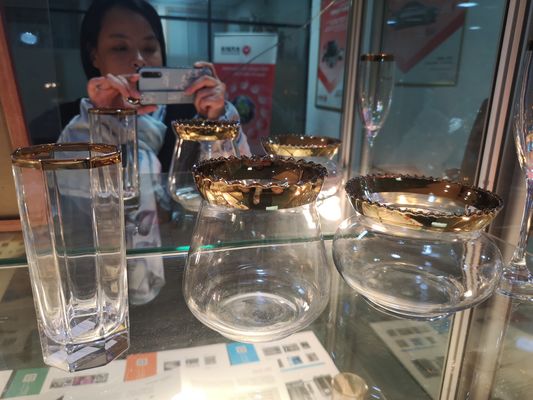

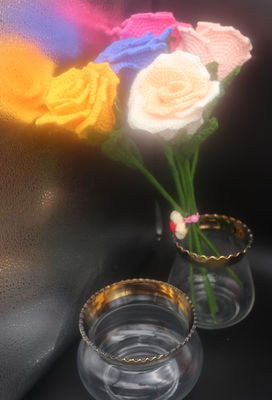

Both inside & outside seeing through is Gold color
Many bright colors of final finishings
Excellent scratch resistance
Enables longer life of products
Environmentally-friendly process
Robust and high volume design machine
Key Features
1. PS eletrical enclosure, designed and manufactured strictly following CE standards
2. Central control cabinet with PLC, power output control and general power distributor
3. Operating software program in PLC is exclusive developed by Royal Technology, each set machine is ready for system upgrading

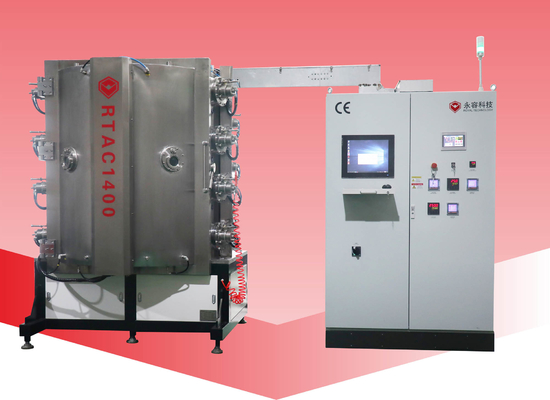

Description RTAC1000 RTAC1200 RTAC1400 RTAC1600

Standard Applications

Medical & beauty instruments, pen, watches, glass beads, small size products Door handles, safe and locks, eyewear, fasteners, consumer electronic metal parts Sanitary ware, bathroom fixtures, glassware of medium size

Faucets, plumbings,
furniture components, metal lamps, for high volume products

Deposition Chamber

φ1000 * H800

φ1200 * H1500

φ1400 * H1600

φ1600 * H1800

Maximum Loading

500 800 800 1000

Central Driving
Effective Coating Area (mm)


6: φ760*H1100
8: φ700*H1100

6: φ835*H1200
8: φ905*H1200


8: φ900*H1500

Planetary Driving
Effective Coating Area (mm)


6: φ320*H1100
8: φ260*H1100

6: φ370*H1200
8: φ300*H1200

8: φ350*H1400
10: φ290*H1400


Pulsed Bias Power

24 24 36 48
Circular Arc Cathode (sets) 6 14 14 18
High Vacuum Pumps 1*Turbo Molecular Pump 2 * Turbo Molecular Pumps

1* Diffusion Pump or
3* Turbo Molecular Pumps

2* Diffusion Pumps or
4* Turbo Molecular Pumps

Backing Pumps 1*SV300B + 1*WAU501+ 1*TRP36 2*SV300B+1*WAU1001+1*TRP48 2*SV300B+1*WAU2001+1*TRP60 1*SV630BF+1*WAU2001+1*TRP90

If you are interested in this technology and machine, please call us today to receive a FREE consulation.
