High Abrasion Resistance Deep Black PVD Coating Machine

1 set
High Abrasion Resistance Deep Black PVD Coating Machine
Features Gallery Product Description Request A Quote
Applications: DLC PECVD Coating Equipment, Watch Components DLC Coatings
DLC Properties: Low Coefficient Of Friction; High Abrasion Resistance; Ecological Cleanliness; Biological Compatibility;
Machine Operation: IPC + CPU (Siemens), Remote Control
Deposition Films: TiC TiAlC, CrC, CrCN, DLC, Graphite Sputtering
Workpiece Materials: SS304/316, Titanium, Brass Alloy, Zinc Alloy, Iron Etc.
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

Magnetron Sputtering PVD Coating Machine


Chrome Black PVD Coating Machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAS1000
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Product Description

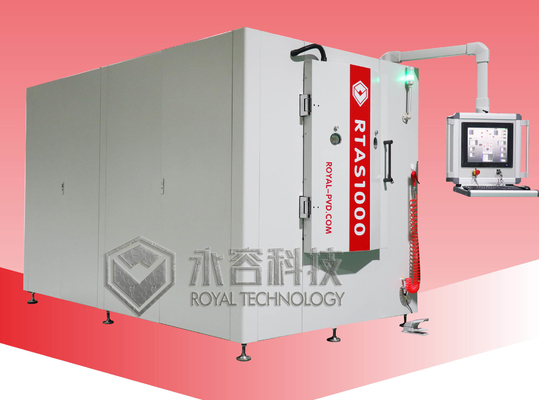

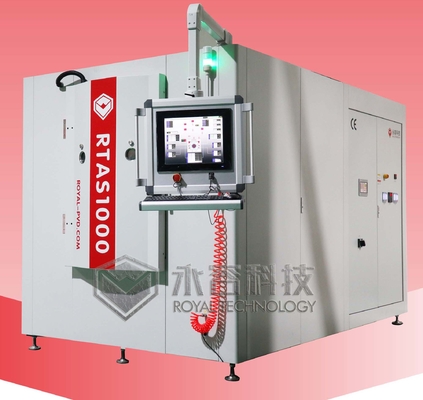

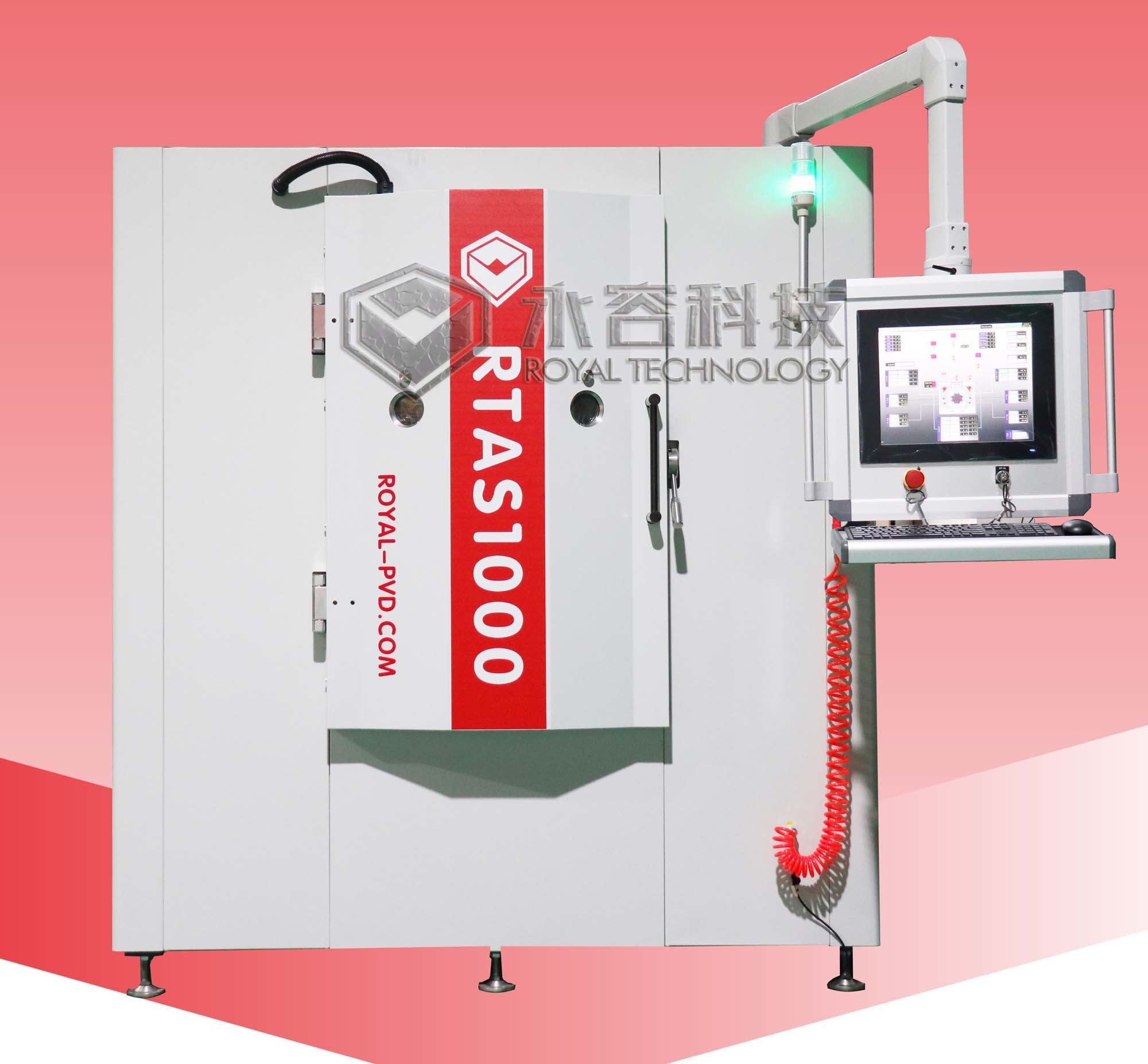

The RTAS1000 model machine is designed for Black DLC functional film coatings with PVD magnetron sputtering deposition technology.

DLC is the short name of Diamond-like-Carbon coatings are used in demanding automotive, non-ferrous material machining and industrial engineering environments where component surfaces are subjected to high contact pressure, intermittent lubrication or dry sliding and rolling environments where severe abrasive and adhesive wear conditions exist.


DLC coatings properties

  • Strong adhesion of the deposited films to the surface;
  • Hardness of the coating comparable to diamond hardness;
  • Durability;
  • Low coefficient of friction;
  • Chemical stability;
  • Ecological cleanliness;
  • Biological compatibility;
  • Transparency in the infra-red band of the spectrum;
  • High heat conductivity;
  • Corrosion resistance;
  • High electrical resistance




DLC coatings are commonly applied onto various watch components, sport products, medical like dental instruments and implants to provide a dark black, anti-reflective and bio-compatible surface with enhanced tribological protection properties.

In nowadays, this coating is also used for faucet, door handles which require high quality, which is exceed the conventional PVD decorative coatings properties.

This machine is suitable for the industrial production coating purpose.

It is designed with multiple deposition sources for a high uniformity and high deposition speed.

  • MoreTechnical Advantages
  • 1. Plug-in Integrated design system for quick installation

    2. Siemens PLC,CPU; with Industrial PC operation & control hardware

    3. Available for remote monitoring and diagnosis.
    4. Flexible, ready for upgrading

    5. Multiple cathodes for fast depostion speed.

    High Abrasion Resistance Deep Black PVD Coating Machine 0



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
