Web Magnetron Sputtering Metallizing Machine R2R Sputtering Coating High Uniformity

Web Magnetron Sputtering Metallizing Machine R2R Sputtering Coating High Uniformity
Features Gallery Product Description Request A Quote
Features: Strong Adhesion, High Uniformity,
Coating Thickness: Thin Film 20~40nm; Heavy Film Up To 1~2 Microns
Metallization Sources: Thermal Evaporation, Magnetron Sputtering
Web Roll Weight: Thousands Of Pounds
Coating Speed: As High As 2000~3000fpm (feet-per-minute)
Web Roll Length: Tens Of Thousands Of Feet
Web Roll Materials: Polymer Plastic Films Like PET, BOPP, CPP, PVC, PI, Metal Alloy, Paper, Stone Paper
Web Roll Width: Width Of A Few Inches To 10 Feet
Applications: Packaging Industry, Electronics, Solar Energy, Anti-counterfeiting, Reflective Coatings And Decorative Applications
High Light:

Web Magnetron Sputtering Metallizing Machine


R2R sputtering coating machine


High uniformity R2R coating machine

Basic Infomation
Place of Origin: SHANGHAI, CHINA
Certification: CE
Model Number: RT-R2R
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 5~7 months
Payment Terms: L/C, T/T
Supply Ability: 4 sets/month
Product Description

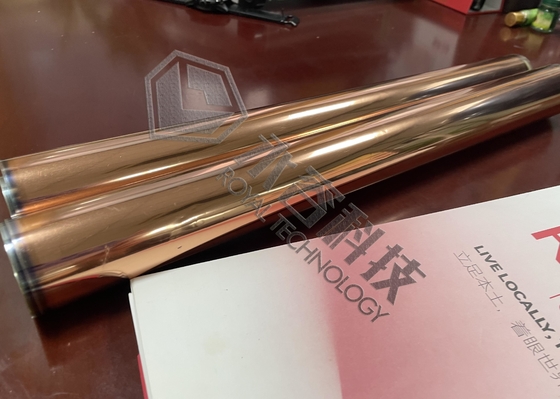

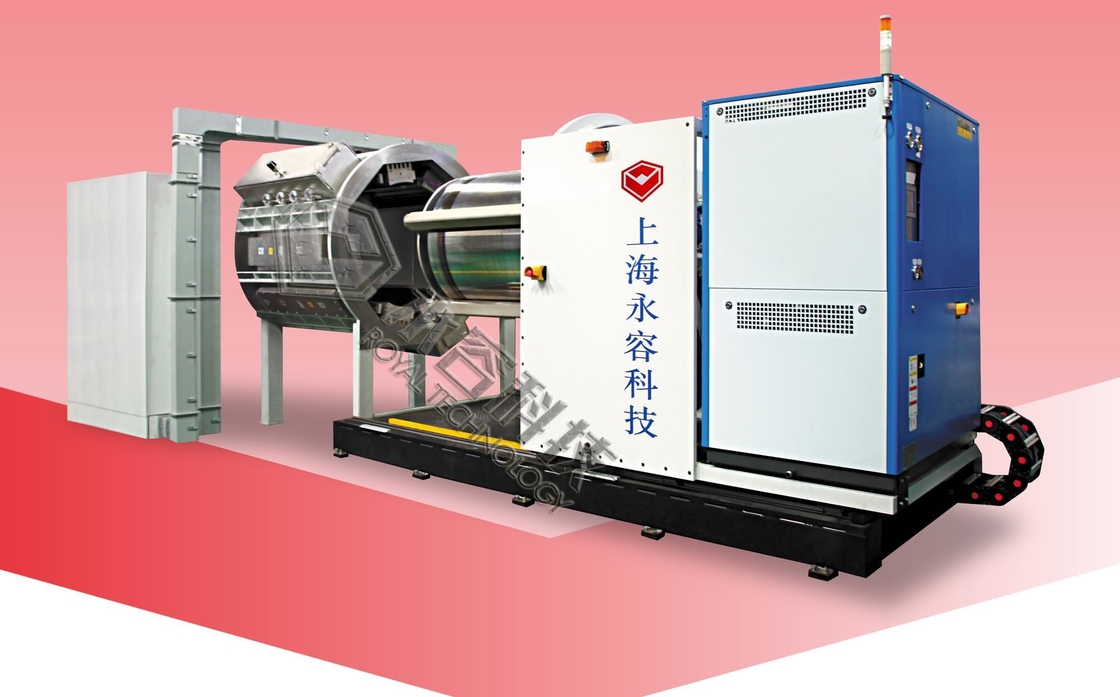

We are pleased to propose our MultiWeb-Series Roll to Roll Vacuum Sputtering Web Coater to meet your multi-layer deposition requirements.


Web Magnetron Sputtering Metallizing Machine R2R Sputtering Coating High Uniformity 0

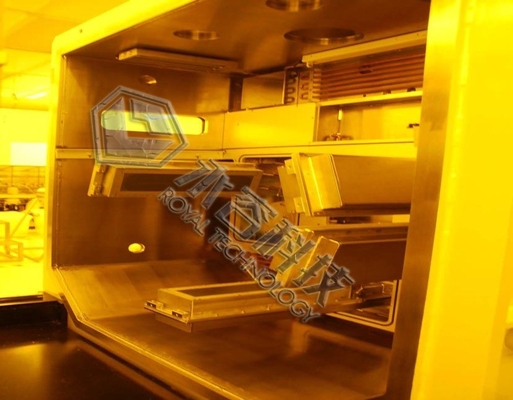

R2R Machine Layout

Web Magnetron Sputtering Metallizing Machine R2R Sputtering Coating High Uniformity 1


RT-R2R Web Aluminum Vacuum Metallizer Features

The RT-R2R web aluminum vacuum metallizer features support a range of functionalities that make it the ideal choice for any industrial workshop.

First, it has a high throughput rate which helps to reduce production costs. It also has a heavy deposition layer which is perfect for high barrier applications. Moreover, its process of free-span eliminates the need for a drum line and edge trim. This makes it particularly friendly for low tension substrates like CPP, BOPP and LDPE.

In addition, it has individual wire feeds that make it very user-friendly. Maintenance is also easy. The web handling mechanism with servo motor drives gives precision control at any line speed. Lastly, the compact design occupies minimal floor space for easy installation.


The MultiWeb Coater provides the following key features:
A. One chamber divided into multi-pressure zones to accommodate various deposition sources.
B. Multi-Source simultaneous deposition capabilities in one web pass, for multi-layer coating.
C. Reversible web winding direction enables deposition of unlimited layers without breaking vacuum.
D. Precision web handling mechanisms with edge-guide to allow multiple passes without loss of alignment. (Optional)
E. AC Invert web drive system for accurate control of multiple web speeds.
F. In-line optical and/or resistance thickness monitoring systems, to control precise deposition thickness and uniformity. (Optional)
G. Chamber is constructed of SUS304L Stainless with low out gassing components to insure deeper vacuum.
H. Vacuum pumping by a combination of turbo-molecular pump and low temperature cryogenics, to provide clean vacuum without moisture or oil contamination.
1. Substrate material: PET, PEN, PES, PI, PC, PA, TAC... Films
2. Substrate thickness: 15~300μm
3. Deposition methods: AC Reactive for SiO2(Dielectric); Pulsed DC for ITO (Metal & Conductor)
4. Oxide conductor TCO: ITO, AZO, IZO...
5. Metal conductor: Al, Cu, Mo, Ag...
6. Optical film: Ta2O5, Nb2O5, SiO2, TiO2...
7. Semiconductor: ZnO, InGaZnO...
8. Insulator: SiO2, SiNx, AlOx, AlNx...
9. Uniformity: ±5% Across Web
Vacum chamber body: single chamber multi-pressure zones
Moveable carriages: Web Carriage
Deposion Zone: 2 X Sputtering Zone (Optional: 3 Sputtering Zone)
Sputtering Source: 2 X Dual Cathode Sputter Source (Optional: 3 Dual Cathode Sputter Source)
Substrate Pre-treater: Linear Ion Source
Web Width: 1300mm
Winding Diameter: Φ600mm Max
Winding Direction: Bi-directional
Substrate thickness: 15~300μm
Web Line Speed:0.5~10M/min
Web Tension: 5.0PLI Max 0.5PLI Min
Web Alignment: ±3mm (one pass)
Hi-Vacuum Pump: Turbo Pump
Rough Vacuum Pump: Dry pump & Blower combination
Moisture Pump: Polycold Cryogenic
Deposition Thickness Control: Monitoring (Optional)
a: Transmit Optical; b: Eddy Current Resistance
System Operation: PLC Based Computer System Operation

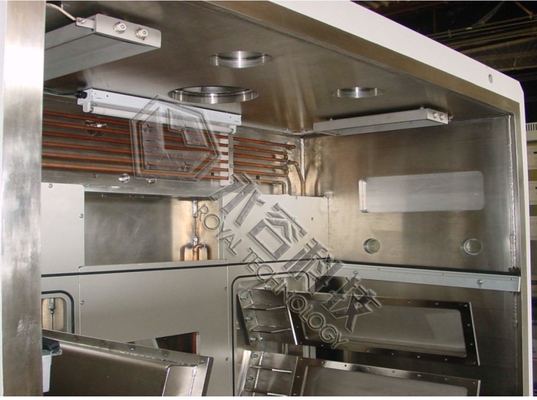

The vacuum chamber is constructed as a horizontal box made of SUS304L polished stainless steel, with the one ends flanged openings. The divided zone lower section will contain the deposition source with accessories, while the upper section will accommodate the web carriage.
Chamber construction: Horizontal box with one flanged openings
Chamber structure: Single chamber multi-pressure zone
Chamber frame: SS41 Mild steel, painted
Chamber material: SUS304L Polished stainless steel
Pressure Zone Divider: Aluminum plate
View port material: Polycarbonate
Vacuum pressure zones: 4 ( 1 Winding Zone, 2 Deposition Zones, 1 Buffer Zone)


Technical Parameters:

The process of R2R (Roll-to-Roll) web vacuum metallizing involves depositing a thin layer of metal, typically aluminum, onto a flexible substrate in a continuous roll-to-roll manner. Here are the key steps involved in the process:

1. Substrate Unwinding: The process begins with a roll of the flexible substrate material, which is unwound and fed into the metallizing machine.

2. Cleaning and Pre-Treatment: The substrate may pass through a cleaning section to remove any surface contaminants that could affect the adhesion of the metal coating. Following cleaning, the substrate may undergo pre-treatment processes such as corona treatment or primer application to enhance the bonding between the substrate and the metal layer.

3. Metallization Chamber: The heart of the R2R web vacuum metallizing equipment is the metallization chamber. The substrate enters the chamber, which is maintained at a high vacuum. The chamber typically consists of a series of evaporation sources or cathodes, which contain the metal (such as aluminum) to be deposited.

4. Metal Evaporation: The metal within the evaporation sources is heated to its evaporation point. As the metal evaporates, it forms a vapor cloud within the chamber. The vaporized metal atoms travel in straight lines and condense onto the moving substrate, forming a thin, uniform metal layer.

5. Substrate Cooling: After the metallization process, the coated substrate passes through a cooling section, where the metal layer solidifies and stabilizes.

6. Substrate Winding: Finally, the metallized substrate is wound onto a roll, ready for further processing or use in various applications.

It's worth noting that the specific details and parameters of the R2R web vacuum metallizing process can vary depending on factors such as the desired metal coating, substrate material, and intended application. The process can be optimized to control factors like coating thickness, adhesion, and uniformity to meet specific requirements.

R2R web vacuum metallizing offers advantages such as high production speeds, precise control over coating thickness, excellent adhesion, and the ability to process a wide range of flexible substrates, making it a versatile and widely used technique in industries such as packaging, electronics, automotive, and more.

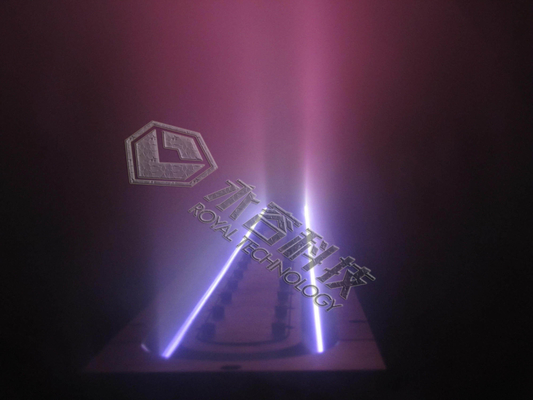

Web Magnetron Sputtering Metallizing Machine R2R Sputtering Coating High Uniformity 2 Sputtering Cathodes Distribution



Support and Services:

Roll to Roll Coating Machine Technical Support and Service

Our team of experienced technicians provides superior technical support and service for our Roll to Roll Coating Machine.

We are available to answer any questions or concerns you have about the machine and its operations. Our technicians are knowledgeable in all aspects of the machine's operation and maintenance, and can provide expert advice to ensure the best performance of the machine.


We also provide preventive maintenance and emergency service for your Roll to Roll Coating Machine. Our technicians have access to the latest technologies and training to ensure your machine is performing optimally. We also offer on-site training and technical support for the machine, as well as spare parts and accessories.

We strive to provide the highest level of customer service and satisfaction, and we are committed to ensuring that your Roll to Roll Coating Machine delivers the highest quality product every time. If you have any questions or concerns, please do not hesitate to contact us.
