Car Aluminum Alloy Wheels PVD Chrome Plating Machine, Automotive wheel Chrome Plating

1 set
MOQ
negotiable
Price
Car Aluminum Alloy Wheels PVD Chrome Plating Machine,  Automotive wheel Chrome Plating
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber: Vertical Orientation, 2-doors
Sputtering Model: Unbalanced/balanced With DC, MF
Sputtering Sources: Planar Sputter Or Cylinder Sputter
Applications: Car Wheel Rims, Car Mirrors, Silver And Gold Sputtering Deposition, Medical Instrument
Coating Performance: High Reflective And Uniformity, Corrosion Proof, Abrasion Resistance
Equipment Features: Robust Structure, Compact Footprint Design, High Efficiency And Precision Oepration Control
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

magnetron sputtering equipment

,

vacuum deposition equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE certification
Model Number: RTSP-2022
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Product Description



PVD Hard Chrome Auto Wheel Coating Machine, Auto Wheels PVD Chrome Vacuum Metallizer, Sputtering Vacuum Coating Machine​





General Information



The PVD Vacuum Hard Chrome coating process has been used in the automotive industries for decades. Sputtering Chrome/Aluminum on Aluminum alloy rims is a standard application due to its 100% environmentally friendly process and resistance to pitting or peeling off like traditional water-electroplating. The high abrasion resistance coating forms a durable film that greatly enhances the car rim’s lifetime. For these reasons and ease of use and reliability the PDV hard chrome coating is welcomed by the automotive factories.



RTSP2022 Advantages:


The RTSP1618 Magnetron Sputtering Chrome PVD coating machine is exclusive designed for the automotive rims manufacture, the high production and fast deposition speed, durable coating layers properties are highly comment by our final users.



MODEL RTSP2022
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ2022*1800mm (H)
CHAMBER TYPE Cylinder, vertical, 2-doors
SINGLE PUMP PACKAGE Mechanical Vacuum Pump: Leybold SVC300/SVC630BF
Holding Vacuum Pump: Leybold D60C
Roots Vacuum Pump: Leybold Vacuum Pump: WAU4400
Diffusion Pump: Leybold High Vacuum Oil Diffusion Pump:
TECHNOLOGY Magnetron Sputtering
POWER SUPPLY DC power supply
DEPOSITION SOURCE Planar Sputtering Target
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cooling Water
CLEANING Glow Discharge Cleaning
POWER MAX. 100 KW

AVERAGE POWER

CONSUMPTION

55 KW





The coating colors:


PVD Black Chrome / PVD Bright Chrome / Grey / Silver

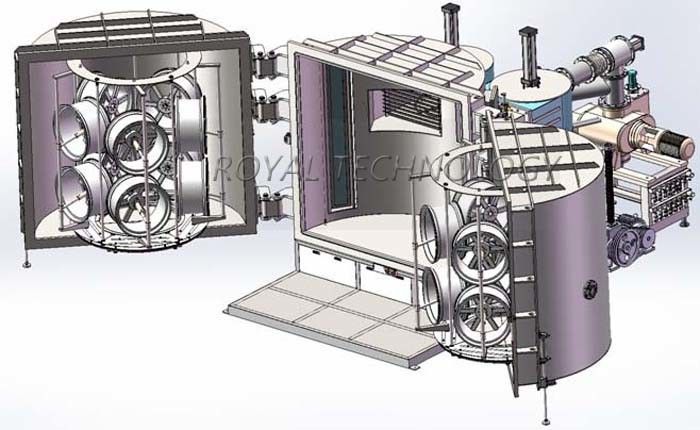

Car Aluminum Alloy Wheels PVD Chrome Plating Machine,  Automotive wheel Chrome Plating 0

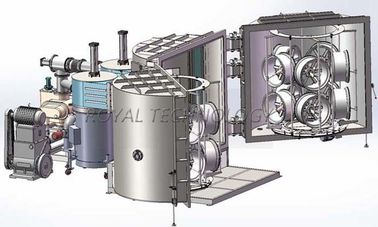

Car Aluminum Alloy Wheels PVD Chrome Plating Machine,  Automotive wheel Chrome Plating 1

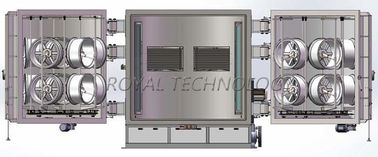

Car Aluminum Alloy Wheels PVD Chrome Plating Machine,  Automotive wheel Chrome Plating 2



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
