Automobile Interior PVD Chrome Plating, Car Interior Carbon Fiber (CFRP) Parts Chrome Plating
Royal Technology manufactures reliable deposition systems in the PVD coating industry. The magnetron sputtering vacuum coating plant is designed with ease of maintenance in mind and the ability to handle large volume capacity. With over 90% uptime, users can focus on meeting their production demands instead of wasting time on machine maintenance.
PVD Chrome Sputtering technology has been widely used in Auto industry especially on the interior parts, like: seat, dashboard, car logo, trims, steering wheels etc. made of CRFP (Carbon Fiber Reinforced Polymer/Plastic ) material.
PVD Hard Chrome Plating Properties:
PVD sputtering gives a combination of advantages like no other:
1. It is totally economically efficient generating the thinnest and most uniform coating films;
2. It is a dry coating process at low temperature in a vacuum chamber;
3. It offers great versatility, can be used for the deposition of conductive or non-conductive materials on any type
of substrates, like: metals, ceramics, plastic materials.
4. Multi layers coating are available.

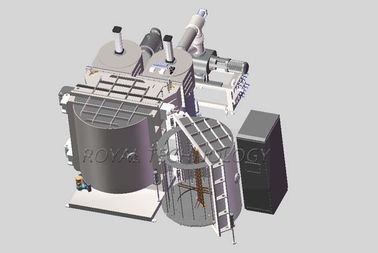

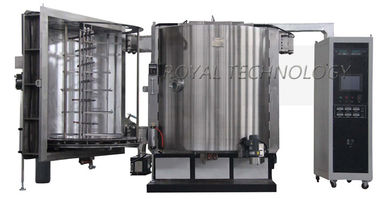

| MODEL | RTEP1616-SP | ||||||
| TECHNOLOGY | THERMAL EVAPORATION, Magnetron sputtering |
||||||
| MATERIAL | Stainless Steel (S304) | ||||||
| CHAMBER SIZE | Φ1600*1600mm (H) | ||||||
| CHAMBER TYPE | Cylinder, vertical, 2-doors | ||||||
| EVAPORATION SYSTEM | Planetary | ||||||
| DEPOSITION MATERIAL | Silver, Aluminum, Ti, Chrome, Copper, Nickel | ||||||
| DEPOSITION SOURCE | TUNGSTEN FILAMENT evaporation + DC sputtering | ||||||
| CONTROL | PLC(Programmable Logic Controller) + Touch Screen |
||||||
| PUMP SYSTEM | Rotary Piston Vacuum Pump *1 | ||||||
| Rotary Vane Vacuum Pump *1 | |||||||
| Roots Vacuum Pump *1 | |||||||
| Difussion Pump *2 | |||||||
| PRE-TREATMENT | Plasma Cleaning | ||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment |
||||||
| COOLING | Cold Water | ||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
| 460V/3 phases/50HZ ( Asia compliant) | |||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | |||||||
| FOOTPRINT | L9000*W4200*H3000mm | ||||||
| TOTAL WEIGHT | 10.5 T | ||||||
| CYCLE TIME | 20 minutes (depending on substrate material, substrate geometry and environmental conditions) |
||||||
| POWER MAX.. | 80KW | ||||||
| AVERAGE POWER CONSUMPTION (APPROX.) | 45KW |
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
