PVD Vacuum Coating Machine on Inox Products , Gold Plated For Golf Irons Parts

1 set
MOQ
negotiable
Price
PVD Vacuum Coating Machine on Inox Products ,  Gold Plated For Golf Irons Parts
Features Gallery Product Description Request A Quote
Features
Specifications
Vacuum Technology: Arc Evaporation + MF Magnetron Sputtering
Deposition Sources: MF Cylinder Sputtering + Arc Cathodes
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications: Ceramic And Glass House Ware Hard Coatings On Tools
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Highlight:

small pvd coating machine

,

vacuum coating plant

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAS1600
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 6 to 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 15 sets per month
Product Description

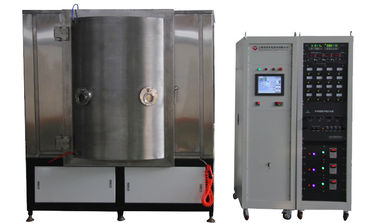

Golf Clubs PVD Vacuum Coating Machine, Clubs Driver Plating Equipment, Club Head Vacuum Coating Plant



1. General Information



Golf clubs surface treatment has high requirement. Except beautiful outlook and finishing, the abrasion resistant, anti-corrosion properties request the club manufactures never stop looking for advanced coating technology.

Royal Technology  Arc Evaporation + Magnetron Sputtering coating equipment mainly for decoration coatings on the metal, ABS parts. The ranged colors are silver, black, gold. When introducing different reactive gas and target materials the colors are changing slowly, during the deposition changing period, to get the idea desired colors.

This is operated by changing different coating parameters and process.

Coating processes to deposit every each color is stored in PLC software recipes, totally 10 recipes are available.

Royal Technology  provides you not only the coating machine but the total coating solutions, turnkey-project service is available.



2. The advantages:



PVD sputtering + Ion Plating give a combination of advantages like no other can:
1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce. 5. Fast deposition rates and high quality surface finishes.



3. Coating technology:



The planar magnetron sputtering cathodic (cylindrical sputtering cathodic) introducing, makes the coating colors is more reflective, coating surface is much more smoother, no spot and needle holes.

High quality coating products satisfy the demand of high level's pursuing.



4. RTAC-SP Standard Specifications



Model Size(mm) Number of Planetary Rods Cathodic Arc Sources Sputtering Cathodes Ion Source Bias Power Supply (kVA)
RTAC950-SP

950xH1350

2-doors

3 8 4 Planar Linear Anode 1*36
RTAC1213-SP

1250xH1350

2-doors

48 8 4 Planar Linear Anode 1*30, AE
RTAC1250-SP 1250xH1250 6,8,12,16 8 4~8 Cylinder depends on coating process and product 1*36
RTAC1008-SP 1000xH800 3 6 2 Cylinder 1*24
RTAC1616-SP 1600xH1600 6*6 9 2 Cylinder or Planar 1*48
RTAC1618-SP 1600x1800 6,8,10 18 4 Cylinder 1*48

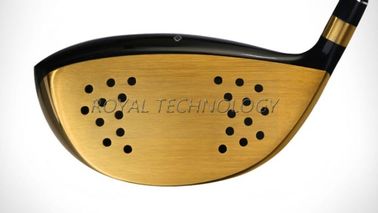

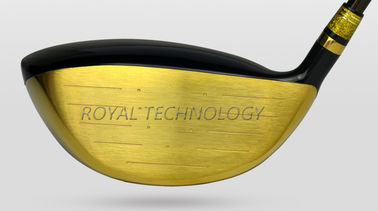

5. Coating Samples:

PVD Vacuum Coating Machine on Inox Products ,  Gold Plated For Golf Irons Parts 0



PVD Vacuum Coating Machine on Inox Products ,  Gold Plated For Golf Irons Parts 1



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
