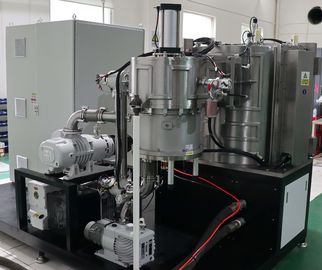

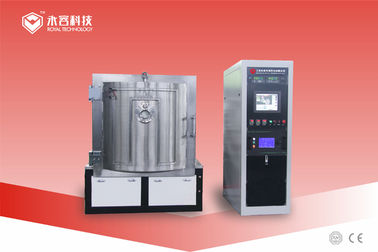

PVD Hard Chroming Metalizing Machine on Car Hubs / Automotive Rim Chroming Plating Plant
Aluminum / chrome coating plating machine for car wheel hub / automobile hub in different colors
Operational principle:
Chrome PVD vacuum coating machine / car wheel hub vacuum coating equipent is a physical phenomenon equipment that electron collide with argon atoms and turn into Argon ions and electron ions when electron accelerated flying towards the substrate under the electric field effect. Thereafter, the argon ions accelerated bombard target in the electric field, that will sputter a large number of target atoms, neutral target atoms (or molecules) depositing on the surface of the substrate forming a layer or multi-layers decorative and functional film.
Equipment configuration:
Structure type: vertical type
Chamber type: single door
Power type: DC or Mid-frequency
Deposition sources: DC sputtering cathodes + arc evaporation sources
The Magnetron Sputtering + Arc Evaporation PVD Chroming machine is exclusive designed for the automotive rims manufacture, the high production and fast deposition speed, durable coating layers properties are highly comment by our final users.
Equipped with arc cathodes, which can generate mutilple colors which not done by sputtering.
| MODEL | RTSP900 | ||
| MATERIAL | Stainless Steel (S304) | ||
| CHAMBER SIZE | Φ900*900mm (H) | ||
| CHAMBER TYPE | Cylinder, vertical, single door | ||
| SINGLE PUMP PACKAGE | Mechanical Vacuum Pump: Leybold SVC300/SVC630BF | ||
| Holding Vacuum Pump: Leybold D60C | |||
| Roots Vacuum Pump: Leybold Vacuum Pump: WAU4400 | |||
| Diffusion Pump: Leybold High Vacuum Oil Diffusion Pump: | |||
| TECHNOLOGY | Magnetron Sputtering + Arc evaporation | ||
| POWER SUPPLY | DC power supply | ||
| DEPOSITION SOURCE | Planar Sputtering Target + steer cathodic arc source | ||
| CONTROL | PLC+Touch Screen | ||
| GAS | Gas Mass Flow Meters | ||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment | ||
| COOLING | Cooling Water | ||
| CLEANING | Glow Discharge Cleaning | ||
| POWER MAX. | 50KW | ||
|
AVERAGE POWER CONSUMPTION |
30 KW | ||
Samples :
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
