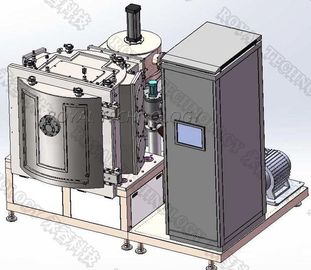

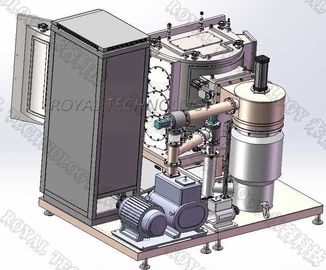

Automotive Wheel Vacuum PVD Hard Chrome Plating Machine / Car Rims Sputtering Vacuum Coating
General Information
The PVD Vacuum Hard Chrome coating process has been used in the automotive industries for decades. Sputtering Chrome/Aluminum on Aluminum alloy rims is a standard application due to its 100% environmentally friendly process and resistance to pititting or peeling off like traditional water-electroplating. The high abrasion resistance coating forms a durable film that greatly enhances the car rim’s lifetime. For these reasons and ease of use and reliability the PDV hard chrome coating is welcomed by the automotive factories.
We have developed 3 standard machines to satisfy different customer’s demand:
RTSP - 900, capacity 1 piece;
RTSP - 1315, capacity 2 pieces;
RTSP - 1618, capacity 4 pieces;
Based on the standard car wheels and rims sizes range from 13” ~24”, even larger size 27” be used for trucks.
The coating colors:
PVD Black Chrome / PVD Bright Chrome / PVD Colored Chrome are available.
Coating Samples

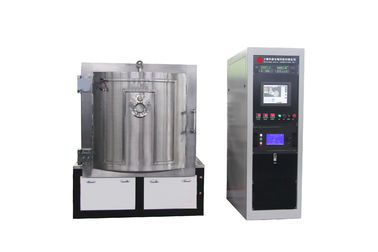

Magnetron Sputtering Chorming Machine Specification
| RTSP900 Model Information | |||||||||||
| MODEL | RTSP900 | ||||||||||
| MATERIAL | Stainless Steel (S304) | |
|||||||||
| CHAMBER SIZE | Φ900*900mm (H) | ||||||||||
| CHAMBER TYPE | Cylinder, vertical, single door | ||||||||||
| SINGLE PUMP PACKAGE | Rotary Piston Vacuum Pump | ||||||||||
| Rotary Vane Vacuum Pump | |||||||||||
| Roots Vacuum Pump | |||||||||||
| Diffusion Pump OR Turbo Molecular Pump | |||||||||||
| TECHNOLOGY | Magnetron Sputtering | ||||||||||
| POWER SUPPLY | DC power supply | ||||||||||
| DEPOSITION SOURCE | Plannar Sputtering Target | ||||||||||
| CONTROL | PLC+Touch Screen | ||||||||||
| GAS | Gas Mass Flow Meters | ||||||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment | ||||||||||
| COOLING | Cooling Water | ||||||||||
| CLEANING | Glow Discharge Cleaning | ||||||||||
| POWER MAX. | 35KW | ||||||||||
| AVERAGE POWER CONSUMPTION | 25KW | ||||||||||
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
