Automotive Wheel PVD Plating Machine , Car Rims PVD Chrome Sputtering Vacuum Coating Unit

1 set
MOQ
negotiable
Price
Automotive Wheel PVD Plating Machine ,  Car Rims PVD Chrome Sputtering Vacuum Coating Unit
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber: Vertical Orientation, 2-doors
Material: Stainless Steel 304/316
Technology: DC Magnetron Sputtering Vacuum Coating
Deposition Films: Al, Cu, Ag, Au, Ti, Zr, Cr Etc.
Applications: Car Hub, Automotive Wheels, Chrome PVD Plating
Film Features: Wear Resistance, Strong Adhesion, Decorative Coating Colors
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Highlight:

ion plating system

,

vacuum plating equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTSP2000
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 6 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 12 sets per month
Product Description





Automotive Wheel Vacuum PVD Hard Chrome Plating Machine / Car Rims Sputtering Vacuum Coating





General Information



The PVD Vacuum Hard Chrome coating process has been used in the automotive industries for decades. Sputtering Chrome / Aluminum on Aluminum alloy rims is a standard application due to its 100% environmentally friendly process and resistance to pititting or peeling off like traditional water-electroplating. The high abrasion resistance coating forms a durable film that greatly enhances the car rim’s lifetime. For these reasons and ease of use and reliability the PDV hard chrome coating is welcomed by the automotive factories.
 We have developed 3 standard machines to satisfy different customer’s demand:
RTSP-900, capacity 1 piece;
RTSP-2022, capacity 10 pieces;
RTSP-1618, capacity 4 pieces;
Based on the standard car wheels and rims sizes range from 13” ~24”, even larger size 27” be used for trucks.



The coating colors:
PVD Black Chrome / PVD Bright Chrome / PVD Colored Chrome are available.

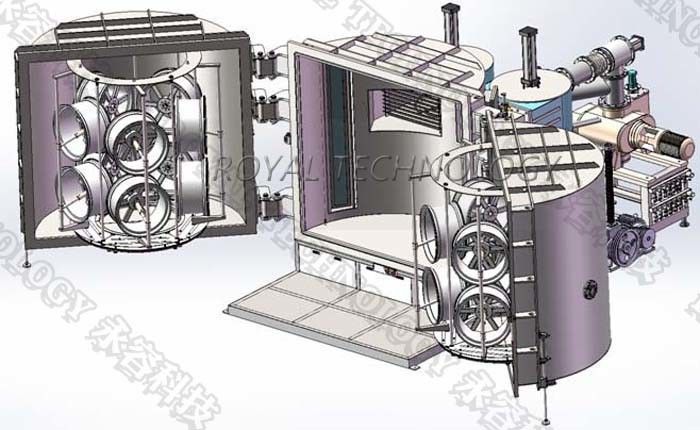

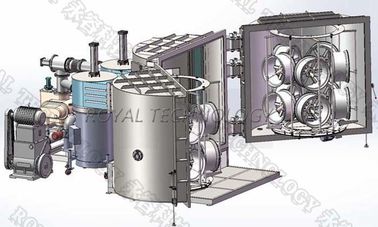

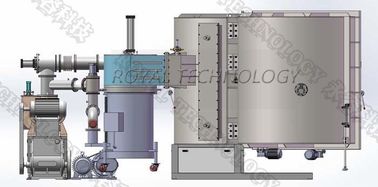

Automotive Wheel PVD Plating Machine ,  Car Rims PVD Chrome Sputtering Vacuum Coating Unit 0

Automotive Wheel(Rim) Magnetron Sputtering Coating Plant Specification



Automotive Wheel(Rim) Magnetron Sputtering Coating Plant Specification
Model RTSP900 RTSP1618 RTSP2022
Effective Chamber Size Φ900 x H900mm Φ1600 x H1800mm Φ2000 x H2200mm
Capacity 1 piece/batch 4 pieces/batch 10 pieces/batch
Pump System (Made in China) or Leybold pump package KT-400 2*DP-22" DP-28"
  ZJP-600 ZJP-1200
2x-70 HL-150 HL-150
2X-8 BSV-60 BSV-90
Sputtering Power Supply 1*24KW 1*72KW 2*108KW
Ultimate Vacuum 9.0*10-4Pa (empty, clean,room temperature) 9.0*10-4Pa (empty, clean,room temperature) 9.0*10-4Pa (empty, clean,room temperature)
Cycle Time (depends on pump) 25min 30min 30min
Working Power Requirement 3Phase 4 lines,AC380V,50HZ,35KW 3Phase 4 lines,AC380V,50HZ,120KW 3Phase 4 lines,AC380V,50HZ,150KW
Cooling Water
Processing Gas AR AR AR
Footprint
Total Weight
Total Power Consumption 35KW 120KW 150KW
Actual Power Consumption 20KW 55KW 75KW





Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
