Multi Arc Vacuum Coating Machine Fast Deposition For Glass Candle Holders
1 set
Multi Arc Vacuum Coating Machine Fast Deposition For Glass Candle Holders
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
High Light:

vacuum deposition system


pvd coating equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 15 sets per month
Chamber: Vertical Orientation, 1-door,
Material: Stainless Steel 304/316
Vacuum Technology: Arc Evaporation
Deposition Sources: Cathodic Arc Sources
Coating Films: Ti, Cr, TiN, TiCN, CrC, TiO Etc.

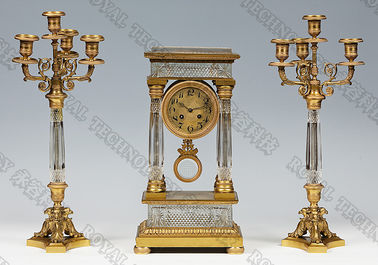

Industrial Applications: Glass Candle Holders
Product Description


Glass Candle Holder PVD Ion Plating Machine is a batch vacuum coating equipment which adopts vacuum coating method, to coat aluminum film and SiOx protective film on the surface of the substrate. It mainly consist the vacuum chamber, vacuum pumping system, rotation system, Al evaporation source, pneumatic system, and electric control system etc. It’s a mature technology with simple operation, fast deposition, high efficiency. It can also coat complicated shape substrate.



Glass Candle Holder Coating Color: gold, rose gold, silver, colorful, sapphire blue, black etc.
Glass Candle Holder Coating Films:TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN
Remark:Specially tailored according to customers’ products and process requirements.


Glass Candle Holder PVD Ion Plating Machine Technology

Cathodic Arc deposition is mainly used to generate extremely hard coating films to protect the surface of cutting tools and extend the tools life significantly. A wide variey of thin hard films, superhard coatings and nanocomposite coatings can be generated by this technology including: TiN, TiAlN, CrN, ZrN, AlCrTIN and TiAlSiN etc.

On steel, glass and ceramic daily life products like: kitchen ware, bathroom accessories, tableware, ceramic tiles etc. also use the cathodic arc coating technology to get various high shiny colors: blue, black, gold, silver, rose gold colors.

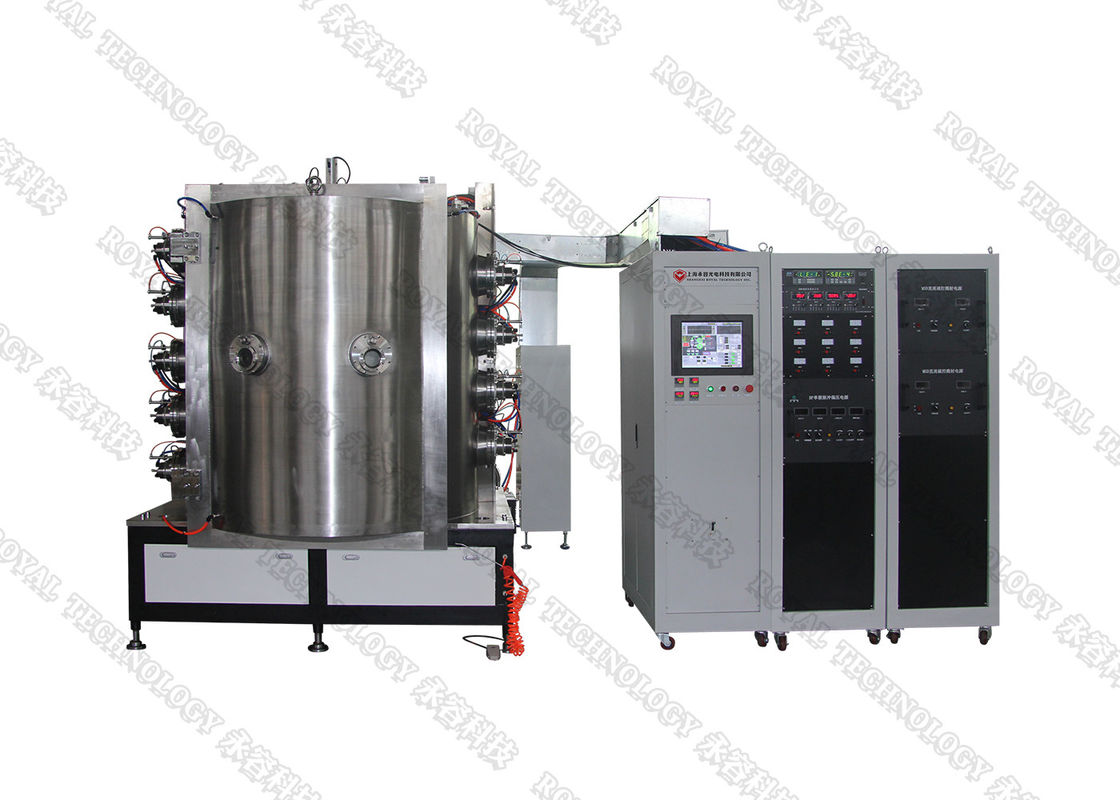

Multi Arc Vacuum Coating Machine Fast Deposition For Glass Candle Holders 0


Glass Candle Holder PVD Ion Plating Machine Models


RTAC-900 RTAC-1000 RTAC-1250 RTAC-1400 RTAC-1600
Chamber Inner size 900x1100mm 1000x1200mm 1250x1350mm 1400x1600mm 1600x1600mm
Power supply type Arc power supply, filament power supply, pulse bias power supply
Structure of vacuum chamber Vertical front door structure, rear air exhaust system and double-layer water cooling chamber
Material of vacuum chamber stainless steel 304/316L
Ultimate vacuum 6.0x10-4Pa (unloading, clean, drying chamber)
Vacuum Pumping Speed from atmosphere to 8.0*10-3Pa ≤15 minutes
Vacuum pumping system Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump
(the specific model can be selected according to customer requirements)
Arc source 6 units or
8 units
8 units or
10 units
10 units or
12 units
14 units or
16 units
16 units or
18 units
Bias power supply 20KW/set 20KW/set 30KW/set 40KW/set 50KW/set
Driving Model Planetary revolution and rotation, variable frequency speed regulation
(controllable and adjustable)
Heating System Controllable and adjustable from room temperature to 450°C
(PID temperature control)
MFC 3-path or 4-path process gas flow control and display system, selective automatic gassing system
Cooling System Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers)
Control mode Manual/automatic integration mode, touch screen operation, PLC or computer control
Total power 30KW 35KW 45KW 60KW 75KW
Alarm and protection Alarm water shortage, over current and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function
Equipment area W2.5m*L3.5m W3m*L4m W4m*L5m W4.5m*L6m W5m*L7m
Other technical parameters Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa
Remarks The specific configuration of coating equipment can be designed according to process requirements of coating products




Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
