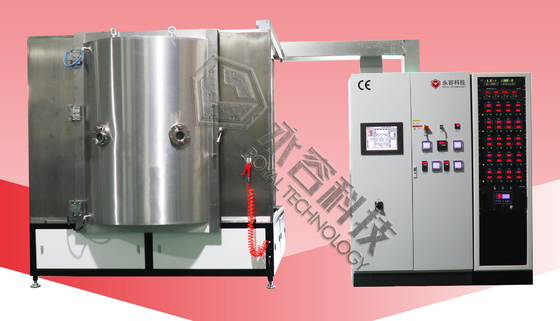

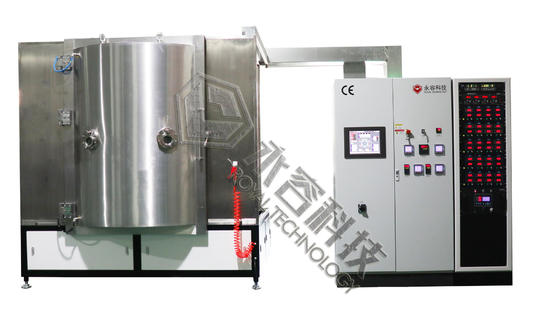

Glass Lighting / Crystal Chandelier PVD Plating Machine , Crystal Chandelier Arc Plating Equipment
Crystal Chandelier PVD Plating Machine Coating Color: gold, rose gold, silver, colorful, sapphire blue, black etc.
Crystal Chandelier PVD Plating Machine Coating Films:TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN
Remark:Specially tailored according to customers’ products and process requirements.
| MODEL | RTAC1800-PLUS | ||
| MATERIAL | Stainless Steel (S304) | ||
| CHAMBER SIZE | Φ1800*1800mm (H) | ||
| CHAMBER TYPE | Cylinder, vertical, top opening door | ||
| SINGLE PUMP PACKAGE | Rotary Piston Vacuum Pump | ||
| Roots Vacuum Pump | |||
| Roots Pump | |||
| TECHNOLOGY | Cathodic Arc Evaporation, Ion Plating | ||
| POWER SUPPLY | Arc sources power supply + Bias Power supply | ||
| DEPOSITION SOURCE | Cathodic Arc Sources | ||
| CONTROL | PLC+Touch Screen | ||
| GAS | Gas Mass Flow Meters | ||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment | ||
| COOLING | Cooling Water | ||
| CLEANING | Bias Power Plasma Cleaning | ||
| POWER MAX. | 120 KW | ||
|
AVERAGE POWER CONSUMPTION |
70 KW |
||

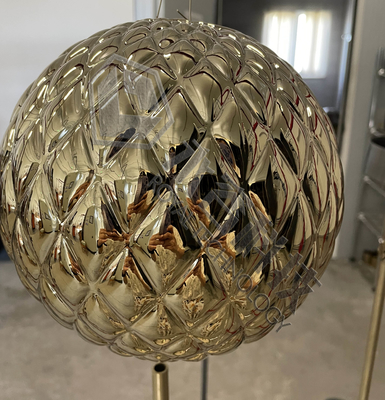

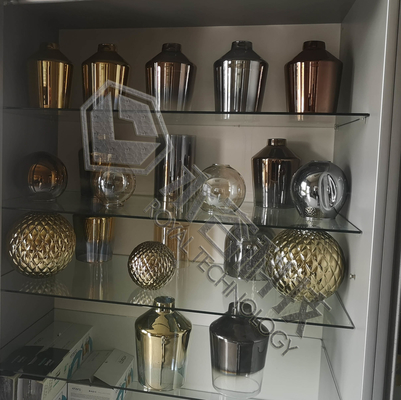

Crystal Chandelier PVD Plating Machine with a proper size not only coat the glass and crystal accessories but also the metal and steel frames, to get the gold, black, silver, blue and rainbow colors with our coating processes.
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
