Non-conductive film vacuum metallization / Indium, Tin metallizing equipment /Plastic metallic finishing coating machine

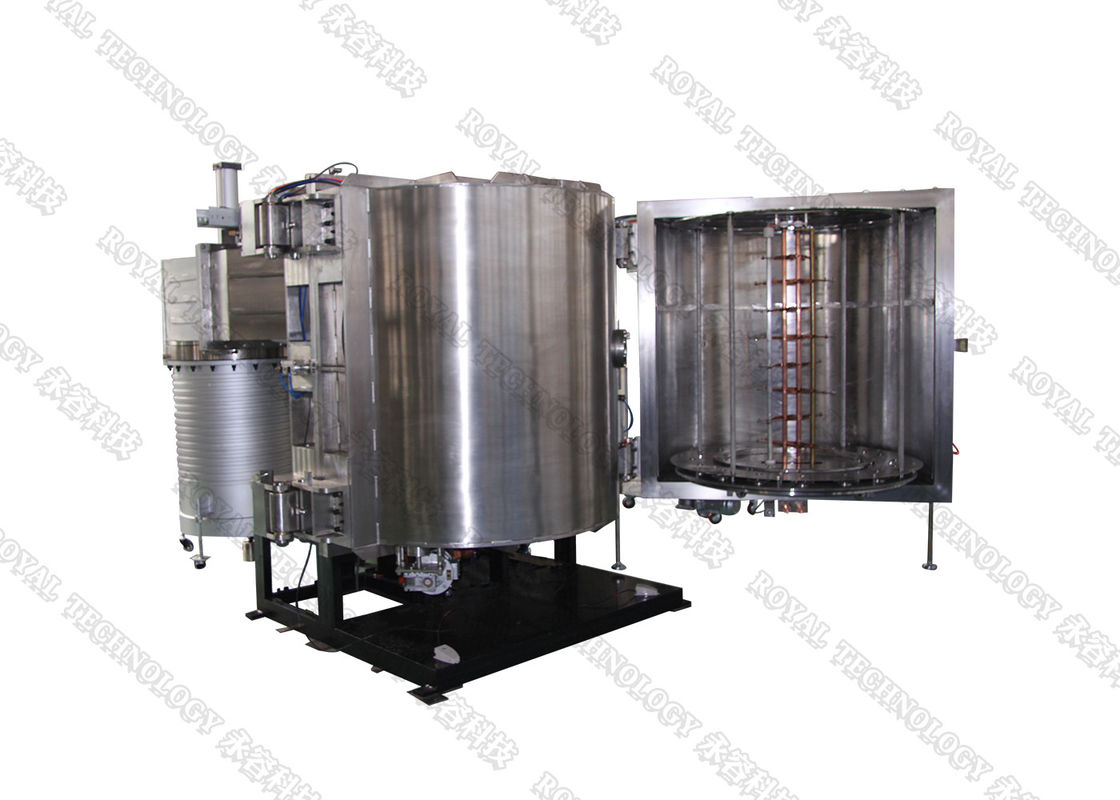

NCVM None Conductive Vacuum Metalzing Machine is used for plastic parts plated which coated by vacuum deposition technology. It uses each other discontinuous features, to generate a final appearance of the metallic finish and doesn't affect the effect of the wireless communication transmission.
NCVM None Conductive Vacuum Metalzing Machine coating material is Tin (99.99%)
The Substrates: plastic materials like: PC, PC+ABS, ABS, PMMA, Nylon, engineering plastics etc.
NCVM None Conductive Vacuum Metalzing Machine Applications: mostly for electronic product industries, communication devices. Mobile phone, telephone, smart phone, GPS satellite navigation, bluetooth headset, computer etc.
NCVM None Conductive Vacuum Metalzing Machine Advantages: it is a total alternative technology for electroplating products of the Chrome-Free.
Much Lower production cost compared with traditonal spraying painting method. And high qualified production rate.
Coating process is simple and easy operation.
NCVM None Conductive Vacuum Metalzing Machine Specifications:
|TECHNOLOGY||THERMAL EVAPORATION, TUNGSTEN ,FILAMENT, glow discharge|
|MATERIAL||Stainless Steel (S304)|
|CHAMBER SIZE||Φ1600*1600mm (H)|
|CHAMBER TYPE||Cylinder, vertical, 2-door|
|EVAPORTATION SYSTEM||exclusive design for NCVM coating|
|DEPOSITION MATERIAL||Tin, Indium (Sn, In)|
|DEPOSITION SOURCE||TUNGSTEN FILAMENT|
|CONTROL||PLC(Programmable Logic Controller) + Touch Screen|
|PUMP SYSTEM||Rotary Piston Vacuum Pump|
|Rotary Vane Vacuum Pump|
|Roots Vacuum Pump|
|Difussion Pump + Brooks Polycold|
|SAFETY SYSTEM||Numerous safety interlocks to protect operators and equipment|
|POWER ELECTRICAL||480V/3 phases/60HZ ( USA compliant)|
|460V/3 phases/50HZ ( Asia compliant)|
|380V/3 phases/50HZ ( EU-CE compliant)|
|TOTAL WEIGHT||7.1 T|
|CYCLE TIME||15 minutes (depending on substrate material, substrate geometry and environmental conditions)|
|AVERAGE POWER CONSUMPTION (APPROX.)||45KW|
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
