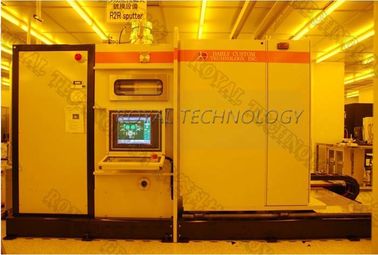

PVD High Vacuum Web Roll To Roll Coater Magnetron Sputtering Vacuum Web Coating Machine

1 set
MOQ
negotiable
Price
PVD High Vacuum Web Roll To Roll Coater Magnetron Sputtering Vacuum Web Coating Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber: Horizontal Orientation,
Material: Stainless Steel 304/316
Technology: Sputtering, Evaporation, Plasma Treatment
Application: Electronic Paper, ITO Film, Flexible Circuits, Photovoltaic, Medical Strips And RFID.
Operation & Control: Intuitive PLC And IPC Control.
Service & Training: Available, From The USA Engineer And Technicians
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

Vacuum Web Roll To Roll Coater

,

PVD Web Roll To Roll Coater

,

Magnetron Sputtering Vacuum Web Coating Machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RT-R2R-SP/EP
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 16 weeks
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 3 sets per month
Product Description





Evaporation Metalizing / Web Roll to Roll Vacuum Coater / Sputtering Vacuum Web Coating Machine





Web Roll to Roll Vacuum Metalizing Equipment Advantages


A. One chamber divided into multi-pressure zones to accommodate various deposition sources.
B. Multi-Source simultaneous deposition capabilities in one web pass, for multi-layer coating.
C. Reversible web winding direction enables deposition of unlimited layers without breaking vacuum.
D. Precision web handling mechanisms with edge-guide to allow multiple passes without loss of alignment. (Optional)
E. AC Invert web drive system for accurate control of multiple web speeds.
F. In-line optical and/or resistance thickness monitoring systems, to control precise deposition thickness and uniformity. (Optional)
G. Chamber is constructed of SUS304L Stainless with low out gassing components to insure deeper vacuum.

H. Vacuum pumping by a combination of turbo-molecular pump and low temperature cryogenics, to provide clean vacuum without moisture or oil contamination.





Description R2R Web Vacuum Metallizer Models
R2R-600 R2R-1250 R2R-1350 R2R-1650 R2R-2200 R2R-2500
Coating Technology Thermal or Sputtering Thermal Evaporation
Substrate width (Max.)mm 600 1100 1250 1500 2200 2500
Roll Diameter (Max.)mm 800 1000 1000 1000 1000 1000
Core Diameter(inner)mm 3"/6" 6"
Coating speed (meter/second) 0.5 ~17, adjustable, depends on coating process required
Coating Rollers Temperature (℃) -20 to 25
Coating Chamber Ultimate Pressure(Pa) 5*10-3
Pumping Speed At the condition of without loading, clean, room temperature: less than 8 mins, from atm to 7*10-2
Pre-treatment Tool Linear Ion Source
Deposition Source BN Crucible or Planar/Rotary cylinder sputtering cathode
Deposition Material Al, Al,Cr,Cu,Ni, NiCr, Stainless Steel, Ti,
Working Environment Power:3Phase, 5wires, 380V±10%,50Hz/60Hz
Cooling water: EDI, 4~6 Bar @25℃
Compressed air: 5~6Bar, filtered and dried

Web Roll to Roll Vacuum Metalizing Equipment  Features: with multiple deposition sources, available for oxide conducting film, metal conducting film, optical film, dielectric film.



Web Roll to Roll Vacuum Metalizing Equipment Substrates: PET,PEN, PES, PI, PC, PA films



Web Roll to Roll Vacuum Metalizing Equipment  Applications: electronic paper, flexible circuits, photovoltaic, medical strips, RFID (Radio Frequency Identification) and Low-E film.

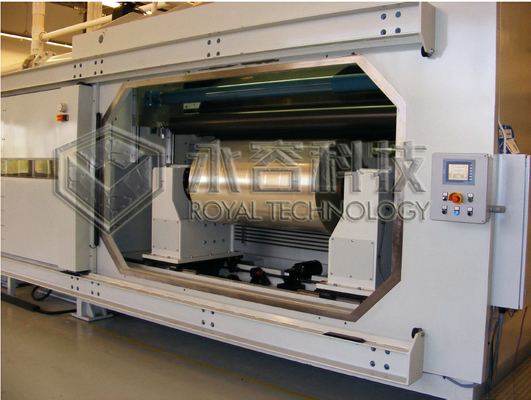

Sputtering Evaporation Vacuum Web Coating RFID Film / Web Roll to Roll Vacuum Coater





Web Roll to Roll Vacuum Metalizing Equipment  Coating Samples:

Flexible Circuits PET Film Coating



RFID labels



Sputtering Evaporation Vacuum Web Coating RFID Film / Web Roll to Roll Vacuum Coater



Sputtering Evaporation Vacuum Web Coating RFID Film / Web Roll to Roll Vacuum Coater



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
