Web Vacuum Metallizer, R2R web metallizer, PVD Vacuum Web Coating Equipment , Roll To Roll Coating Machine

1 set
Web Vacuum Metallizer, R2R web metallizer, PVD Vacuum Web Coating Equipment , Roll To Roll Coating Machine
Features Gallery Product Description Request A Quote
Chamber: Horizontal Orientation,
Material: Stainless Steel 304/316
Technology: Sputtering, Evaporation, Plasma Treatment
Application: Electronic Paper, ITO Film, Flexible Circuits, Photovoltaic, Medical Strips And RFID.
Operation & Control: Intuitive PLC And IPC Control.
Service & Training: Available, From The USA Engineer And Technicians
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

thermal evaporation unit


vacuum deposition machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RT-R2R
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 16 weeks
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 3 sets per month
Product Description



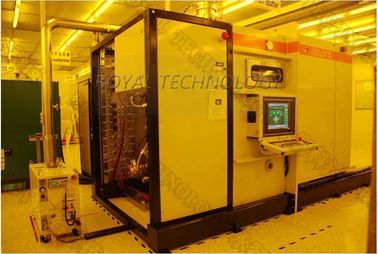

Thermal Resistance Evaporation Web Coater / Intuitive PLC IPC Control Roll to Roll Vacuum Web Coating Unit



Thermal Resistance Evaporation Web Coater General Information

Royal  has introduced Roll to Roll Web coating system from Darly Custom Technology. Inc. to serve our customers in flexible films coating industries. Darly, with more than 25 years’ experience in web coating technology and multi-layer deposition, is committed to providing the most innovative and reliable coating solutions in the area of electronic paper, ITO film, flexible circuits, photovoltaic, medical strips and RFID. This highly versatile machine is designed to meet the specialty coating and narrow web production demands of 21st century technology.



Thermal Resistance Evaporation Web Coater Key Features


1. Multiple source capability to enable deposition of metals, alloys and dielectric materials in one pass without breaking vacuum.
2. Divided chamber allows for variable pressure in the deposition zone to accommodate thermo resistance, sputtering or E-beam coating.
3. Precision web handling mechanism using A.C. Servo motor drives for accurate control at any line speed.
4. Reversible web direction enables multiple layer deposition without breaking vacuum.
5. In line optical and/or resistance coating detection monitors linked to the deposition controls for precise deposition uniformity.
6. Provisions for optional process equipment such as pre-treatment, post-treatment or printing devices.
7.Compact design for easy installation using minimal floor space.



DARLY-RMC Specifications


Model Number M-500 M-850 M-1250
Coating Width 450mm 800mm 1200mm
Maximum Roll Diameter 600mm 600mm 600mm
Maximum Web Speed 1000fpm 1000fpm 1000fpm
Minimum Web Speed 100fpm 100fpm 100fpm
Number of Boats 6 10
Average Power Consumption 100KW 130KW 140KW
Average Water Consumption 36gpm 45gpm 53gpm



Thermal Resistance Evaporation Web Coater High Lights


The M-Series tool will provide the following key features:
A. Compact design featuring a machine small footprint.
B. Deposition at high vacuum pressure for maximum deposition rate and uniformity.
C. Plasma pre-treater optional for better adhesion require. (Optional)
D. Optical density thickness monitor for metal deposition control.
E. Bi-directional web winding design that enables deposition of unlimited layers without breaking vacuum.
F. Precision web handling mechanisms. No web scratches or wrinkles. Roll rewind edge alignment within 3mm at one winding pass.
G. AC Inverter web drive system for accurate control of multiple web speeds.
H. Stable wire feed and boats control.
I. Intuitive PLC and IPC control.


Thermal Resistance Evaporation Web Coater Layout Drawing


Intuitive PLC  IPC Control Roll to Roll Vacuum Web Coating With Thermal Resistance Evaporation


Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
