ITO Roll To Roll Magnetron Sputtering Coating Machines, R2R Web Sputtering Deposition System,

1 set
ITO Roll To Roll  Magnetron Sputtering Coating Machines, R2R Web Sputtering Deposition System,
Features Gallery Product Description Request A Quote
Chamber: Horizontal Orientation,
Technology: Sputtering, Evaporation, Plasma Treatment
Application: Electronic Paper, ITO Film, Flexible Circuits, Photovoltaic, Medical Strips And RFID.
Operation & Control: Intuitive PLC And IPC Control.
Service & Training: Available, From The USA Engineer And Technicians
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

Web Vacuum Metallizer


Vacuum Roll To Roll Coating Machine


ITO Roll To Roll Coating Machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE certification
Model Number: RT-R2R-ITO
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 16 weeks
Payment Terms: L/C, T/T
Supply Ability: 3 sets per month
Product Description

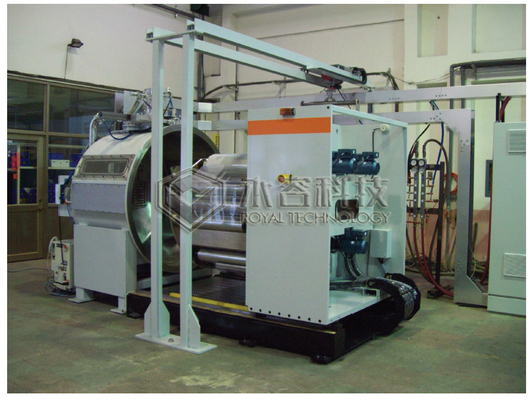

ITO Roll to Roll Sputtering Vacuum Web Coating Machine / PET Film PVD Sputtering Machine


We are pleased to propose our MultiWeb-Series Roll to Roll Vacuum Sputtering Web Coater to meet your multi-layer deposition requirements.

The MultiWeb Coater provides the following key features:

A. One chamber divided into multi-pressure zones to accommodate various deposition sources.
B. Multi-Source simultaneous deposition capabilities in one web pass, for multi-layer coating.
C. Reversible web winding direction enables deposition of unlimited layers without breaking vacuum.
D. Precision web handling mechanisms with edge-guide to allow multiple passes without loss of alignment. (Optional)
E. AC Invert web drive system for accurate control of multiple web speeds.
F. In-line optical and/or resistance thickness monitoring systems, to control precise deposition thickness and uniformity. (Optional)
G. Chamber is constructed of SUS304L Stainless with low out gassing components to insure deeper vacuum.
H. Vacuum pumping by a combination of turbo-molecular pump and low temperature cryogenics, to provide clean vacuum without moisture or oil contamination.


ITO Roll to Roll Sputtering Vacuum Web Coating Machine DEPOSITION FILMS
1. Substrate material: PET, PEN, PES, PI, PC, PA,... Films
2. Substrate thickness: 15~300μm
3. Deposition methods: AC Reactive for SiO2(Dielectric); Pulsed DC for ITO (Metal & Conductor)
4. Oxide conductor TCO: ITO, AZO, IZO...
5. Metal conductor: Al, Cu, Mo, Ag...
6. Optical film: Ta2O5, Nb2O5, SiO2, TiO2...
7. Semiconductor: ZnO, InGaZnO...
8. Insulator: SiO2, SiNx, AlOx, AlNx...
9. Uniformity: ±5% Across Web


ITO Roll to Roll Sputtering Vacuum Web Coating Machine Description


Vacum chamber body: single chamber multi-pressure zones
Moveable carriages: Web Carriage
Deposion Zone: 2 X Sputtering Zone (Optional: 3 Sputtering Zone)
Sputtering Source: 2 X Dual Cathode Sputter Source (Optional: 3 Dual Cathode Sputter Source)
Substrate Pre-treater: Linear Ion Source
Web Width: 1300mm
Winding Diameter: Φ600mm Max
Winding Direction: Bi-directional
Substrate thickness: 15~300μm
Web Line Speed:0.5~10M/min
Web Tension: 5.0PLI Max 0.5PLI Min
Web Alignment: ±3mm (one pass)
Hi-Vacuum Pump: Turbo Pump
Rough Vacuum Pump: Dry pump & Blower combination
Moisture Pump: Polycold Cryogenic
Deposition Thickness Control: Monitoring (Optional)
a: Transmit Optical; b: Eddy Current Resistance

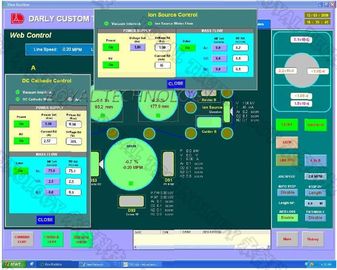

System Operation: PLC Based Computer System Operation

Multi - Layers Roll to Roll Sputtering Vacuum Web Coating Machine , PET Film PVD Sputter Coating Machine



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
