PVD Thermal Evaporation Coating Unit , Anti UV Helmet Visors Evaporation Coating System
1 set
MOQ
negotiable
Price
PVD Thermal Evaporation Coating Unit ,  Anti UV Helmet Visors Evaporation Coating System
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE certification
Model Number: RTEP1800
High Light:

thermal evaporation unit

,

thermal evaporation equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 10 sets per month
Specifications
Evaporation Source: Thermal Filament, Thermal Boat, Thermal Box, Rod, Crucibles
Deposition Materials: Aluminum, Gold, Silver, Chromium, Copper, Indium, Indium Tin Oxide, Nickel
Applications: Helmet Visors, Electronics, Acrylic, Lamps, Mobile Viewing Window, Glasses, Lighting
Chamber Inner Size: Dia1800 * L2200mm
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description

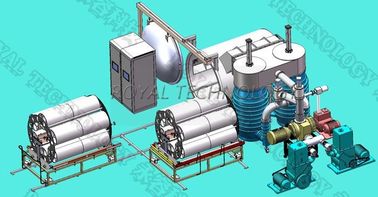

Helmet Visors Thermal Evaporation Coating Unit / Horizontal Metallizing Coating Machine / Anti-UV





Helmet Visors Thermal Evaporation Coating Machine -  RTEP1822 model, horizontal metallzer is designed exclusively for helmet visors coating.

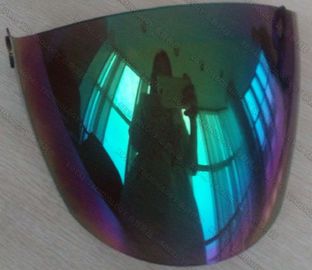

The Helmet Visors Thermal Evaporation Coating Colors:  rainbow, gold, smoke, gray, silver etc.



The Helmet Visors Thermal Evaporation Coating Machine Features:

1. With Polycold unit to enhance the film quality efficiently, max. reduce the pumping down time.

2. With Ion source to do plasma cleaning pre-treatment, highly enhance the film adhesion.

3. Two Rack and Jig systems for high production yield.
4. Suitable for plastics,ceramics,glass and metal,,metallization decorative coating

5. Single-door structure makes the coating and substrates loading more efficient,high productivity

6. High depositing speed,coating bright colors,uniform thickness

7. No waste gases , No waste water ,environmentally friendly

8. Coating experience:glossy ,mettle,fold,wire drawing,drip-drop,colorful films



The Helmet Visors Thermal Evaporation Coating Machine  Application:

Glass,ceramics,rhineston,artwork,doorhandle,jewelry,hats,shoes,watch,lights,decorations,phones,DVD,MP3,PDA, button,toy.jardware, Helmet visors .etc.



 The Helmet Visors Thermal Evaporation Coating Machine specifications


MODEL RTEP 1822
TECHNOLOGY THERMAL EVAPORATION, TUNGSTEN ,FILAMENT, glow discharge
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1800*2200mm (L)
CHAMBER TYPE Cylinder,  Horizontal, 1- door, 2 racks
EVAPORTATION SYSTEM exclusive design for helmet visors coating
DEPOSITION MATERIAL Ti, TiO etc.
DEPOSITION SOURCE TUNGSTEN FILAMENT
CONTROL PLC(Programmable Logic Controller) + Touch Screen
PUMP SYSTEM Rotary Piston Vacuum Pump
Rotary Vane Vacuum Pump
Roots Vacuum Pump
Difussion Pump + Brooks Polycold
PRE-TREATMENT Plasma Cleaning
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cold Water
POWER ELECTRICAL 480V/3 phases/60HZ ( USA compliant)
460V/3 phases/50HZ ( Asia compliant)
380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT L10000*W4500*H3000mm
TOTAL WEIGHT 9.0T
CYCLE TIME 15 minutes (depending on substrate material, substrate geometry and environmental conditions)
POWER MAX.. 100KW
AVERAGE POWER CONSUMPTION (APPROX.) 60KW





Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
