PVC Slippers Aluminum Evaporation Coating Unit , Slippers PVD Vacuum Metalizing Machine

Brand Name:	ROYAL

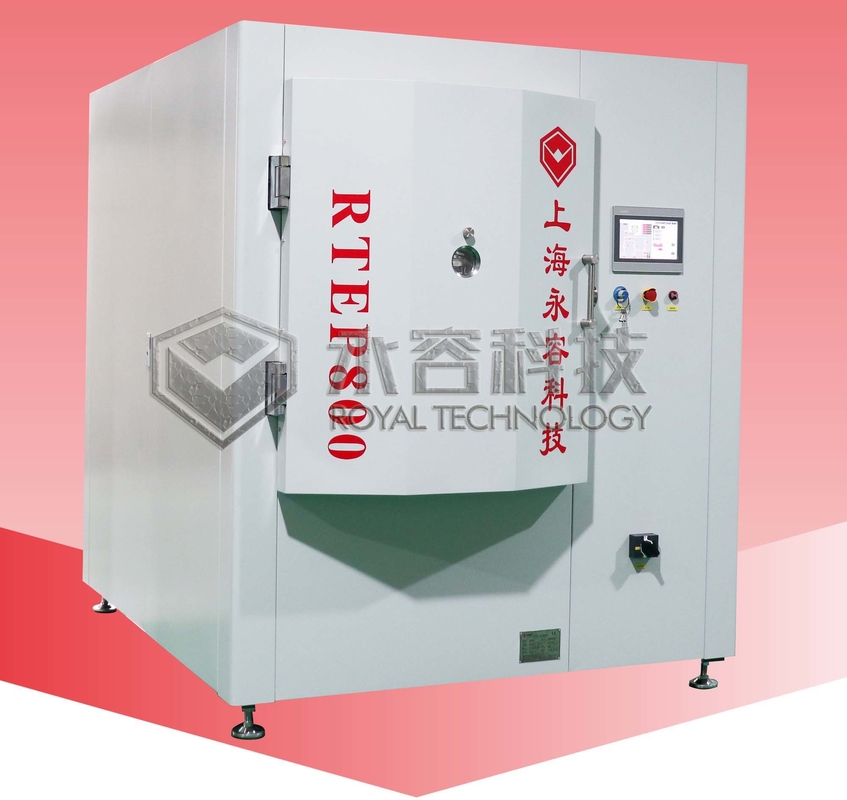

Model Number:	RTEP800
MOQ:	1 set
Price:	negotiable
Payment Terms:	L/C, T/T, D/A, D/P
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

Chamber:

Vertical Orientation, 2-doors

Material:

Stainless Steel 304/316

Evaporation Source:

Thermal Filament, Thermal Boat, Thermal Box, Rod, Crucibles

Deposition Materials:

Aluminum, Gold, Silver, Chromium, Copper, Indium, Indium Tin Oxide, Nickel

Applications:

Furnitures, Dashboards, Knobs, Buttons, Plates, Fashion And Costume Jewelry Accessories, Toy Parts, Lifestyle Products, Car Lighting, Christmas Decorations

Factory Location:

Shanghai City, China

Worldwide Service:

Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Training Service:

Machine Operation, Maintenance, Coating Process Recipes, Program

Warranty:

Limited Warranty 1 Year For Free, Whole Life For Machine

OEM & ODM:

Available, We Support Tailor Made Design And Fabrication

Packaging Details:

Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.

Highlight:

thermal evaporation unit

vacuum deposition machine

Product Description

PVC Slippers Aluminum Evaporation Coating Unit / Slippers PVD Vacuum Metalizing Machine

PVC Slippers Aluminum Evaporation Coating Machine uses the Thermal Resistant Evaporation technology to evaporate and deposit Aluminum wire on the slipper surface to give a high reflection and metal image. The Coating Process: Substrate Cleaning --> UV base coating --> PVD aluminum metalizing --> UV top coating ( lacquer or color pigment to get various colors)

PVC Slippers Aluminum Evaporation Coating Machine Features
A: PLC + Touch Screen Operation System, fully automatically control
B: Fast Vacuum pumping down time.
C: Work pieces are easy loading/uploading.
D: Easy access to the working environment for maintenance.
E: Robust structure design and high quality configurations

PVC Slippers Aluminum Evaporation Coating Machine Specifications:

MODEL				RTEP 1820
TECHNOLOGY				THERMAL EVAPORATION, TUNGSTEN ,FILAMENT, glow discharge
MATERIAL				Stainless Steel (S304)
CHAMBER SIZE				Φ1800*2000mm (L)
CHAMBER TYPE				Cylinder, vertical, 2 -doors
EVAPORTATION SYSTEM				exclusive design for helmet visors coating
DEPOSITION MATERIAL				Aluminum wire
DEPOSITION SOURCE				TUNGSTEN FILAMENT
CONTROL				PLC(Programmable Logic Controller) + Touch Screen
PUMP SYSTEM				Rotary Piston Vacuum Pump
				Rotary Vane Vacuum Pump
				Roots Vacuum Pump
				Difussion Pump + Brooks Polycold
PRE-TREATMENT				Plasma Cleaning ( None)
SAFETY SYSTEM				Numerous safety interlocks to protect operators and equipment
COOLING				Cold Water
POWER ELECTRICAL				480V/3 phases/60HZ ( USA compliant)
				460V/3 phases/50HZ ( Asia compliant)
				380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT				L9000W4500H3600mm
TOTAL WEIGHT				7.0T
CYCLE TIME				15 minutes (depending on substrate material, substrate geometry and environmental conditions)
POWER MAX..				100KW
AVERAGE POWER CONSUMPTION (APPROX.)				60KW

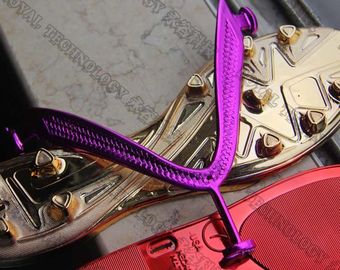

PVC Slippers Aluminum Evaporation Coating Unit , Slippers PVD Vacuum Metalizing Machine 0

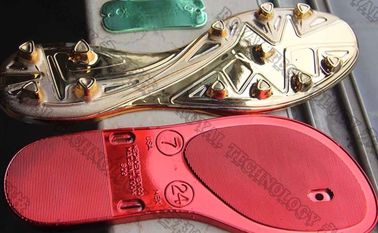

PVC Slippers Aluminum Evaporation Coating Unit , Slippers PVD Vacuum Metalizing Machine 1

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
