PVD protects the environment, saves the blue planet.
Royal Technology VACUUM DEPOSITION MACHINE manufacturer.
----Standardization, Precision, Stabilizaiton
| Place of Origin: | Made in China |
|---|---|
| Brand Name: | ROYAL |
| Certification: | CE |
| Model Number: | RTEP1000 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation. |
| Delivery Time: | 8 weeks |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 10 sets per month |
| Evaporation Source: | Thermal Filament, Thermal Boat, Thermal Box, Rod, Crucibles | Deposition Materials: | Aluminum, Gold, Silver, Chromium, Copper, Indium, Indium Tin Oxide, Nickel |
|---|---|---|---|
| NAME: | Thermal Evaporation Coating Unit | ||
| High Light: | thermal evaporation unit,vacuum deposition machine |
||

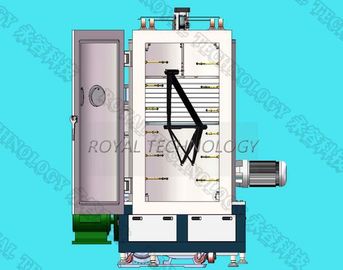

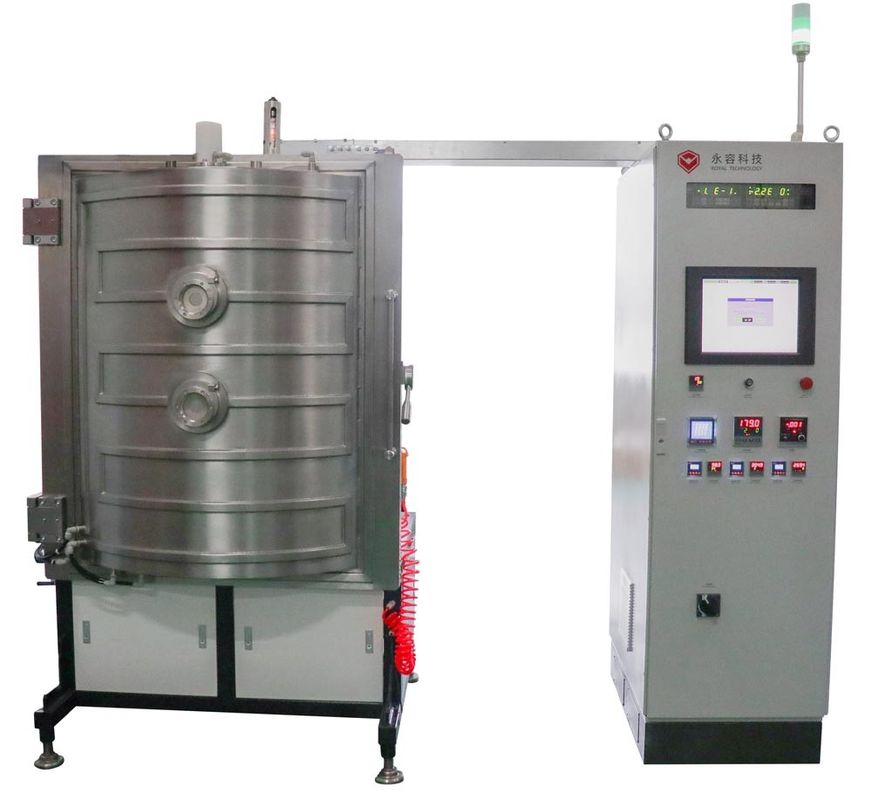

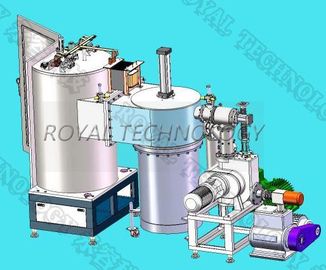

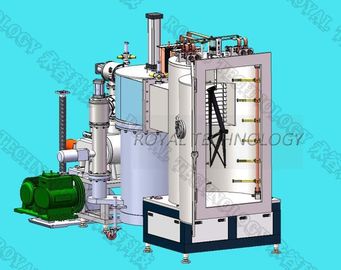

Bicycle Frame Aluminum Evaporation Coating Machine / Bike Aluminum Alloy Vacuum Metalizing Equipment
Bicycle Frame Aluminum Evaporation Coating Machine uses the Thermal Resistant Evaporation technology to evaporate and deposit Aluminum wire on the slipper surface to give a high reflection and metal image.
Bicycle Frame Aluminum Evaporation Coating Process: Substrate Cleaning --> UV base coating --> PVD aluminum metalizing --> UV top coating ( lacquer or color pigment to get various colors)
Bicycle Frame Aluminum Evaporation Coating Machine Features
A: PLC + Touch Screen Operation System, fully automatically control
B: Fast Vacuum pumping down time.
C: Work pieces are easy loading/uploading.
D: Easy access to the working environment for maintenance.
E: Robust structure design and high quality configurations
Bicycle Frame Aluminum Evaporation Coating Sample
Bicycle Frame Aluminum Evaporation Coating Machine Specifications:
| MODEL | RTEP-1018 | ||||||
| TECHNOLOGY | THERMAL EVAPORATION, VACUUM METALIZING | ||||||
| MATERIAL | Stainless Steel (S304) | ||||||
| CHAMBER SIZE | Φ1000*H1800mm | ||||||
| CHAMBER TYPE | Cylinder, vertical, 1-door | ||||||
| EVAPORTATION SYSTEM | EXCLUSIVE DESIGN FOR BICYCLE FRAMES | ||||||
| DEPOSITION MATERIAL | Copper, Chrome, Stainless Steel, Aluminum | ||||||
| DEPOSITION SOURCE | TUNGSTEN FILAMENT | ||||||
| CONTROL |
PLC(Programmable Logic Controller) + Touch Screen |
||||||
| PUMP SYSTEM | Rotary Pistonr Vacuum Pump SV6300B | ||||||
| Rotary Vane Vacuum Pump D60C *1 | |||||||
| Roots Vacuum Pump WAU1001 *1 | |||||||
| Diffussion Pump DP221 | |||||||
| PRE-TREATMENT | Plasma Cleaning | ||||||
| SAFETY SYSTEM |
Numerous safety interlocks to protect operators and equipment |
||||||
| COOLING | Cold Water | ||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
| 460V/3 phases/50HZ ( Asia compliant) | |||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | |||||||
| FOOTPRINT | L3000*W300*3000mm | ||||||
| TOTAL WEIGHT | 4 T | ||||||
| CYCLE TIME |
20 minutes (depending on substrate material, substrate geometry and environmental conditions) |
||||||
| POWER MAX.. | 50 KW | ||||||
| AVERAGE POWER CONSUMPTION (APPROX.) | 25 KW |
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
